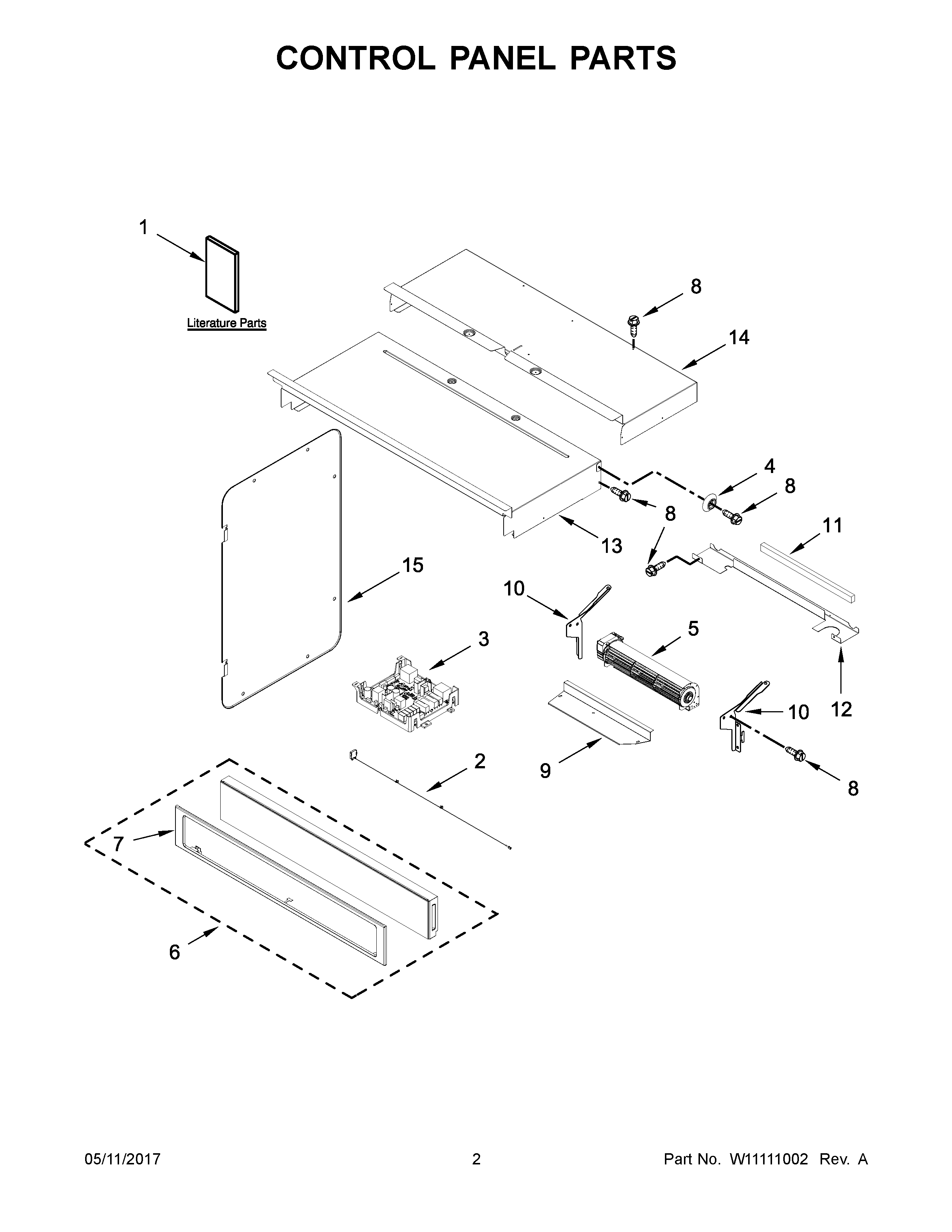

WOC75EC7HV00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W11356990 Whirlpool Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	4450950 Whirlpool Oven Conduit
NI	16515 Whirlpool Clip
NI	4448664 Whirlpool Oven Mounting Bracket
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	HARNESS, GROUND CONSOLE COMBO
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE (OVEN)
1E	DIAGRAM, WIRING
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
1D	SHEET, TECH
1C	GUIDE, INTERNET CONNECTIVITY
1B	INSTRUCTIONS, INSTALLATION
2	W11537624 Whirlpool Antenna Assembly
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6A	W11353797 Whirlpool Console + Core
6	W11353765 Whirlpool Console + Core
7	W11112611 Whirlpool Control Panel
7A	W11112612 Whirlpool Control Panel
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10728475 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27 IN WIFI
15	W10655467 Whirlpool Side Cover
