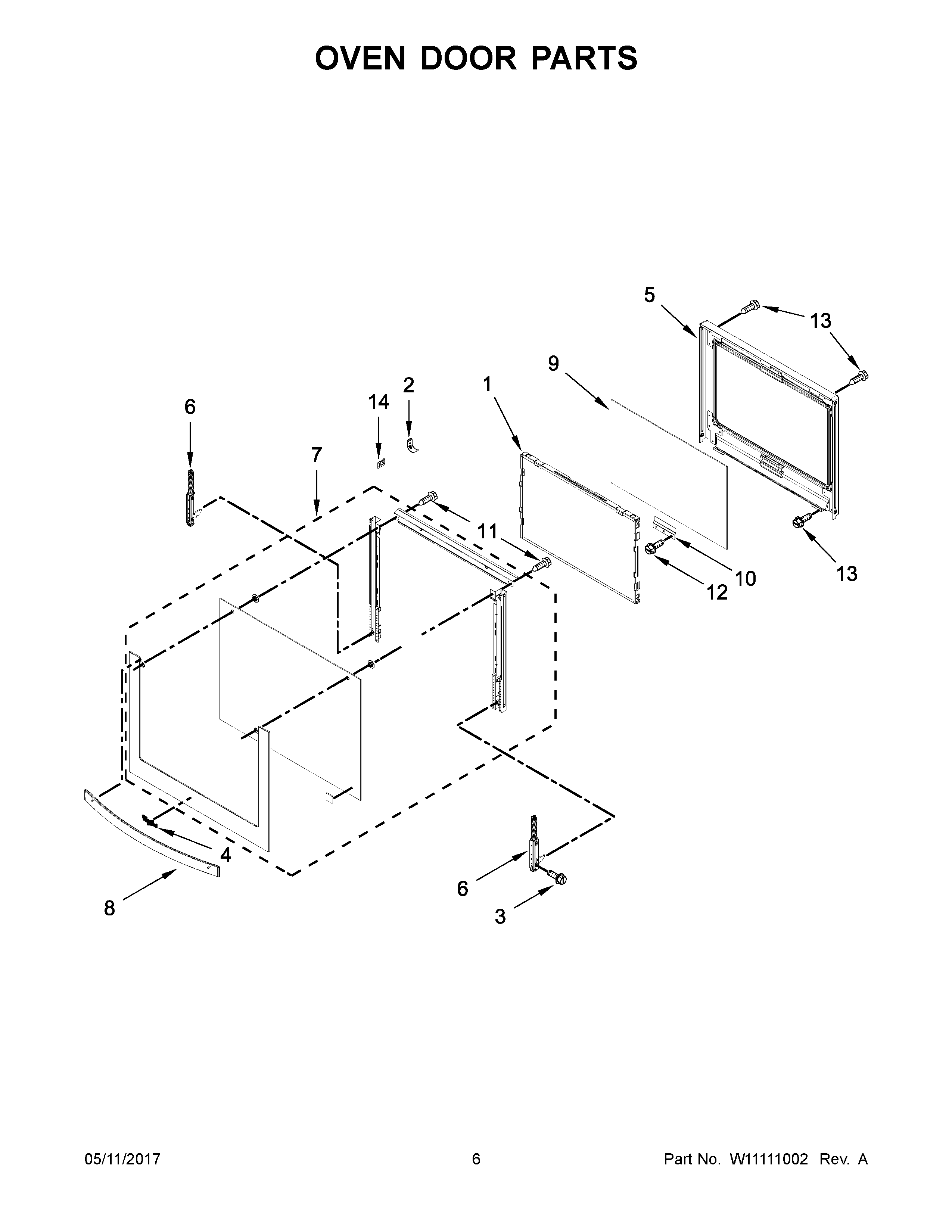

WOC75EC7HV00 04 – OVEN DOOR PARTS

WOC75EC7HV00 04 – OVEN DOOR PARTS

Written by

in

WOC75EC7HV00 04 – OVEN DOOR PARTS

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10320793 Whirlpool Glass Frame
6W11045550 Whirlpool Door Hinge
7AW11111696 Whirlpool Door Glass
7W11111694 Whirlpool Door Glass Assembly
8W11113204 Whirlpool Door Handle
8AHANDLE, DOOR (BLACK STAINLESS)
9W10829001 Whirlpool Oven Wall Inner Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW (BLACK)
14W11025615 Whirlpool Glass Bracket
