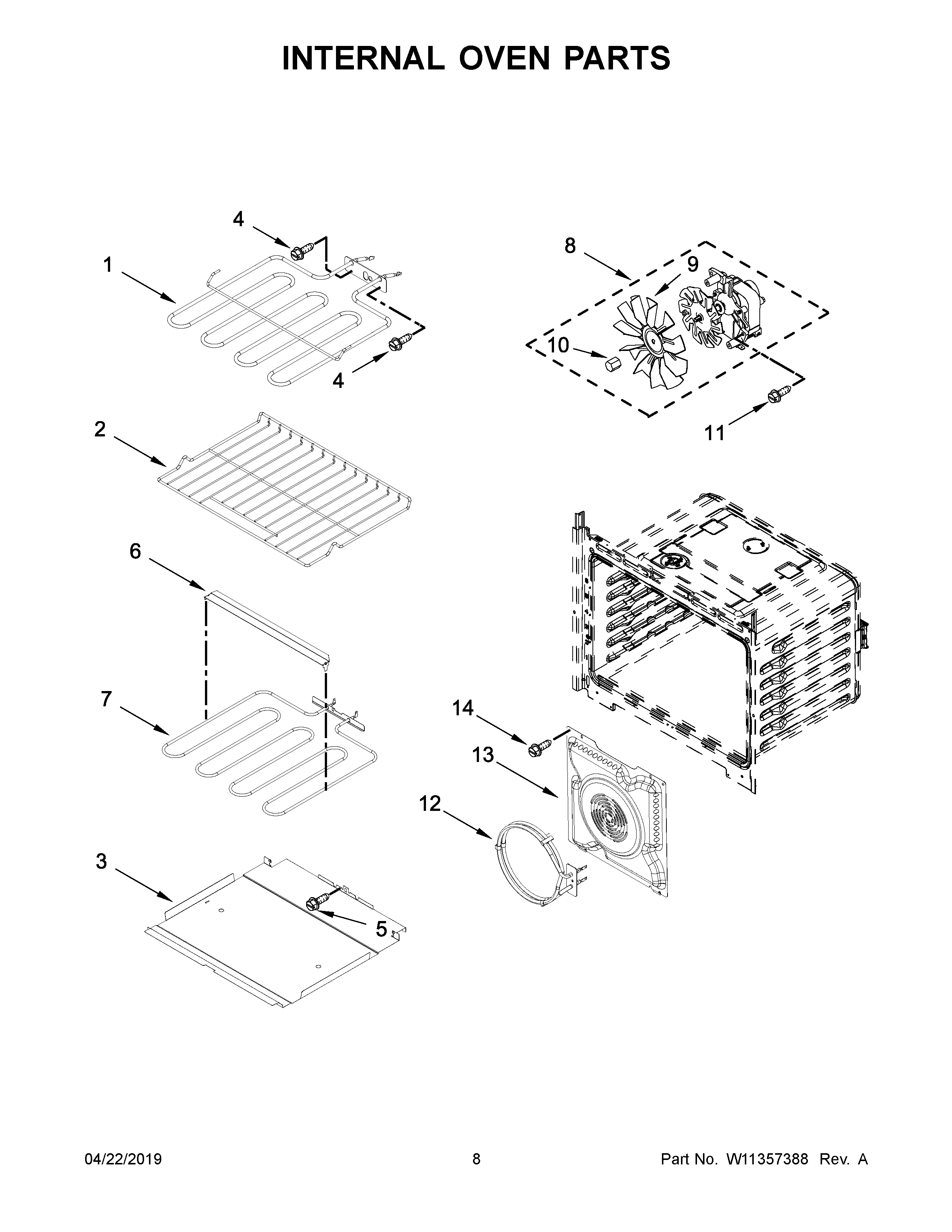

WOC75EC7HV02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WPW10317431 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10860984 Whirlpool Fan Motor
9	W10819914 Whirlpool Convection Fan
10	W10794042 Whirlpool Nut
11	W10850807 Whirlpool Screw
12	WPW10260248 Whirlpool Element Assembly
13	W10359278 Whirlpool Baffle Conv
14	WP74003976 Whirlpool Screw
