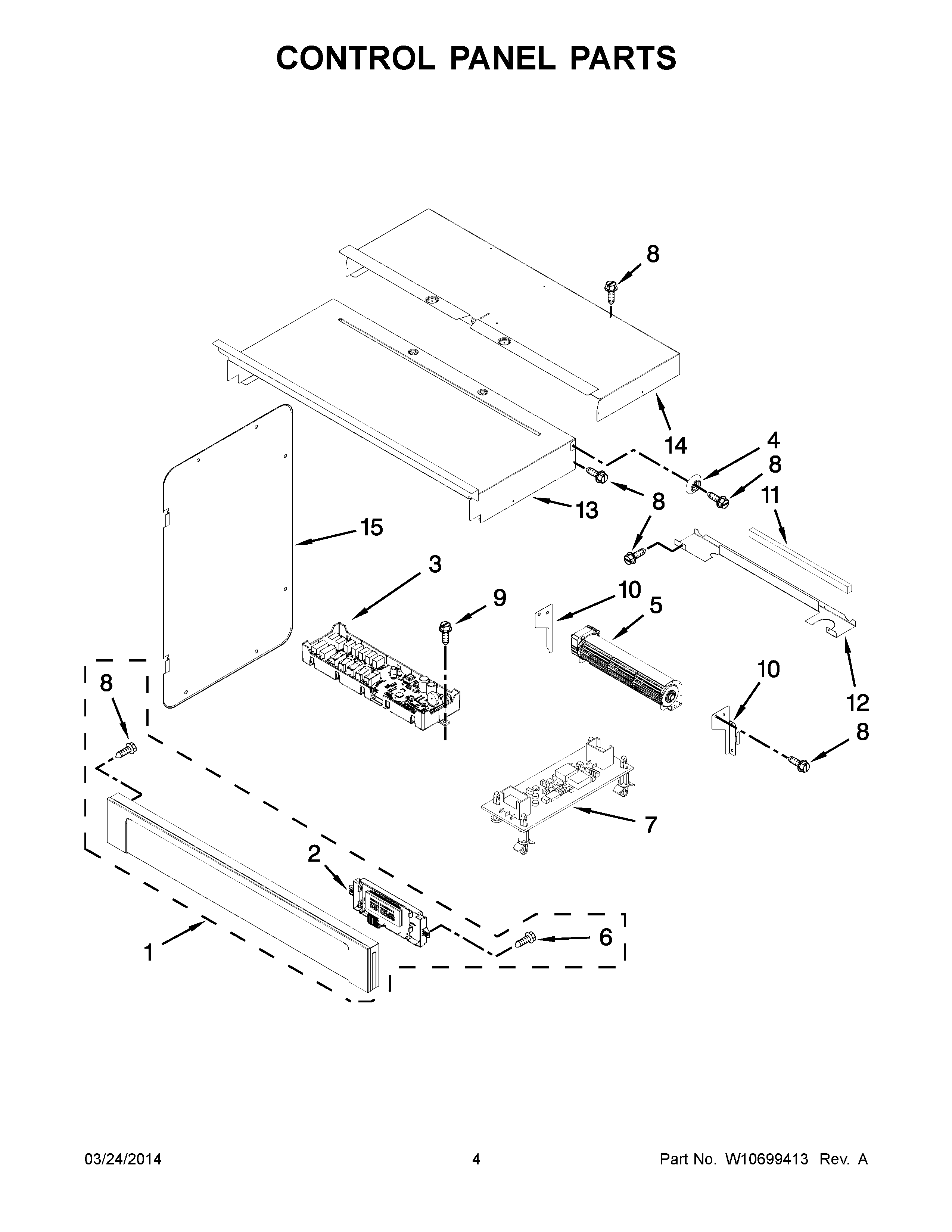

WOC95EC0AB01 03 – CONTROL PANEL PARTS

WOC95EC0AB01 03 – CONTROL PANEL PARTS

Written by

in

WOC95EC0AB01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10861737 Whirlpool Control Panel
1W10566023 Whirlpool Control Panel
1W10861734 Whirlpool Control Panel
1W10861736 Whirlpool Control Panel
1W10540044 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5WPW10661038 Whirlpool Blower
6SCREW
7WPW10412514 Whirlpool Electronic Control Board + Core
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10509164 Whirlpool Mounting Bracket
13W10318158 Whirlpool Access Cover Assembly
14W10283031 Whirlpool Access Cover
15CHASSIS, SIDE
