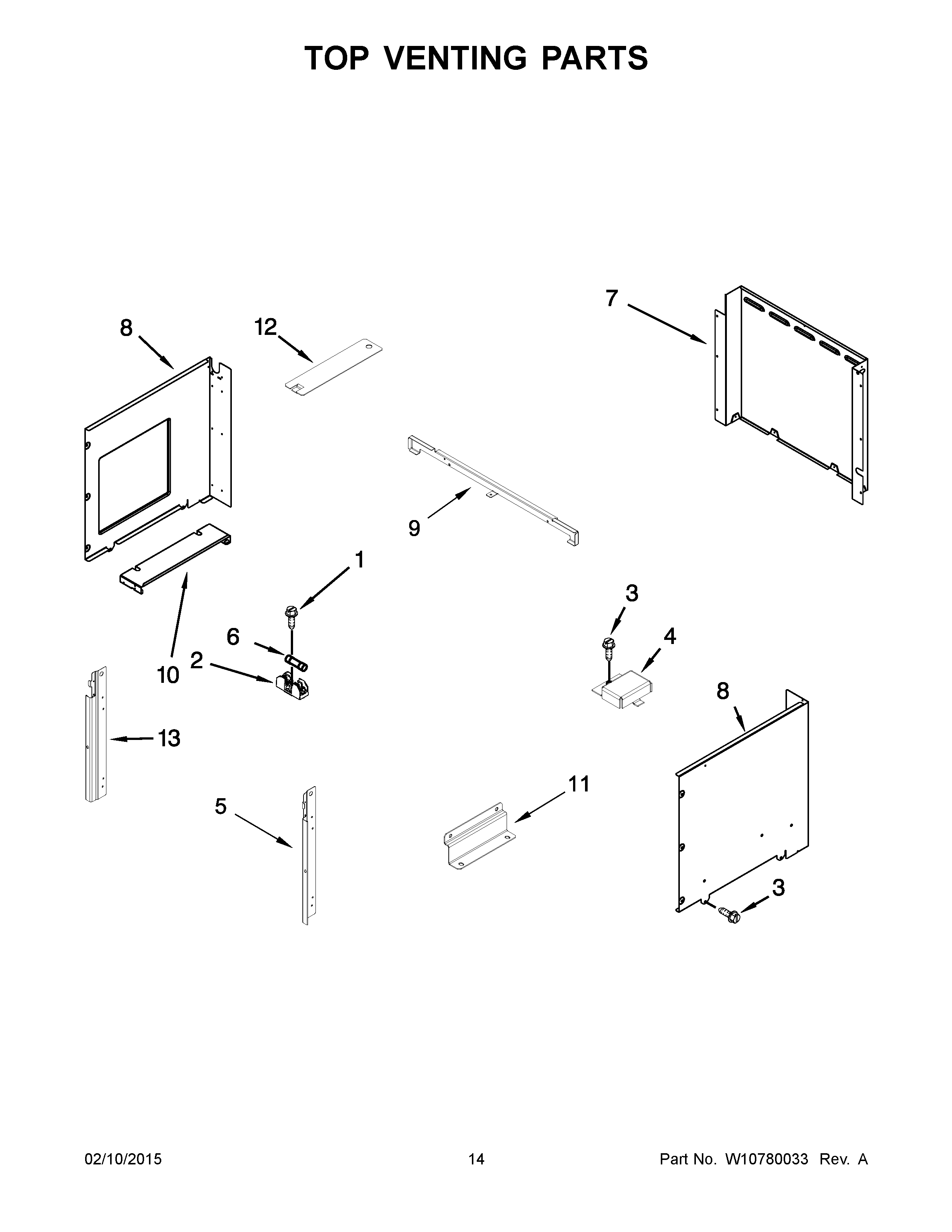

WOC95EC0AB02 08 – TOP VENTING PARTS

WOC95EC0AB02 08 – TOP VENTING PARTS

Written by

in

WOC95EC0AB02 08 – TOP VENTING PARTS

Products

PositionProduct
1SCREW
24454949 Whirlpool Oven Fuse Block
3SCREW
48285593 Whirlpool Oven Wire Cover
5W10360518 Whirlpool Mounting Bracket
6WPW10017410 Whirlpool Fuse
7COVER, BACK DUCT
8CHASSIS, COMBO SIDE (LEFT)
8AW10655467 Whirlpool Side Cover
9W10283022 Whirlpool Support
10SUPPORT, MICROWAVE MODULE
11W10283024 Whirlpool Mounting Bracket
12W10356437 Whirlpool Cover Access
13W10360516 Whirlpool Mounting Bracket
