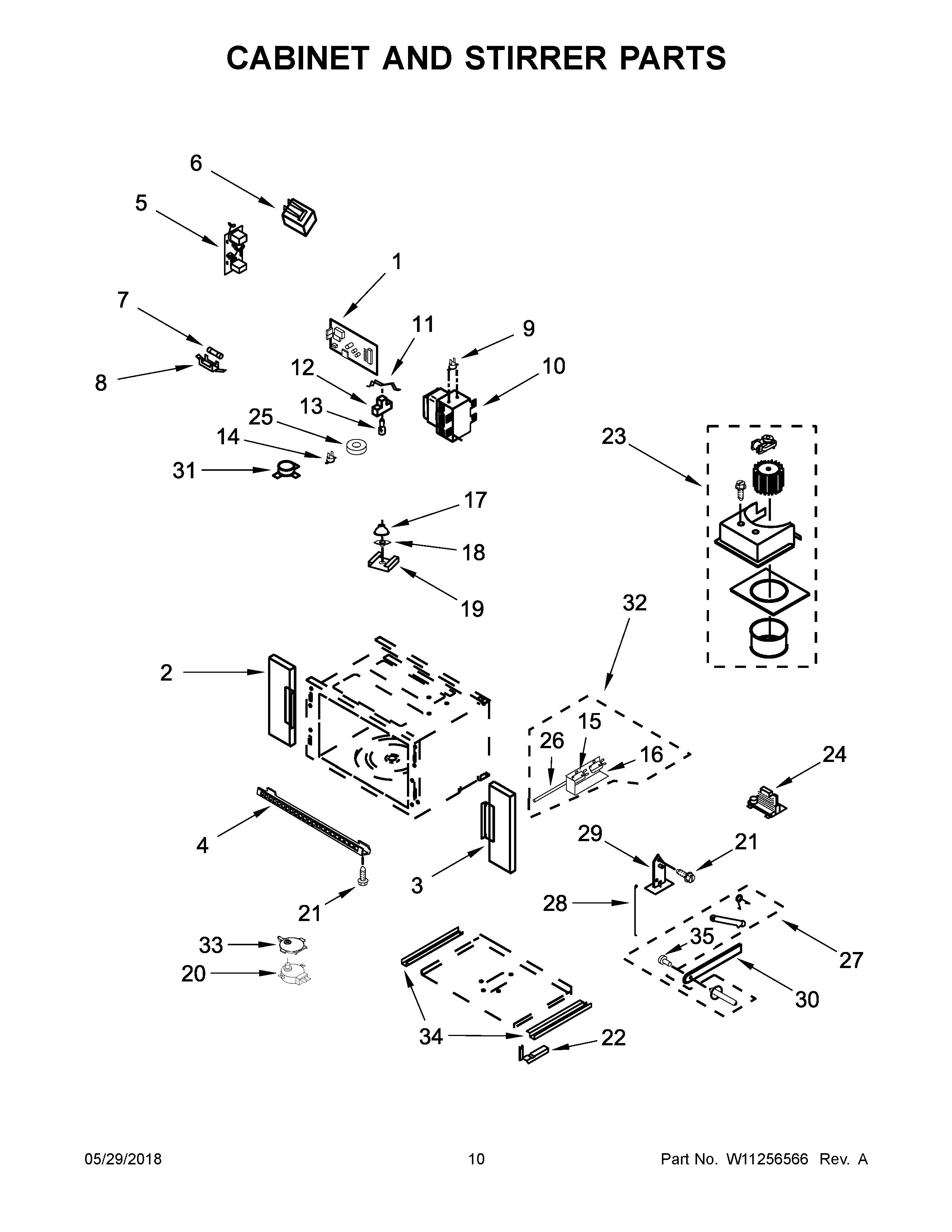

WOC95EC0AB05 06 – CABINET AND STIRRER PARTS

WOC95EC0AB05 06 – CABINET AND STIRRER PARTS

Written by

in

WOC95EC0AB05 06 – CABINET AND STIRRER PARTS

Products

PositionProduct
1WPW10586836-includeCORE Whirlpool WPW10586836 Microwave Electronic Control Board + Core
2W10486208 Whirlpool Microwave Trim
3TRIM, SIDE (RIGHT)
4VENT, TOP MICROWAVE
5W11398764 Whirlpool Microwave Filter
6W11238401 Whirlpool Microwave Transformer
7W11188752 Whirlpool Microwave Fuse
8W10245194 Whirlpool Microwave Fuse Block
9W11233913 Whirlpool Microwave Sensor
10W11346197 Whirlpool Magnetron
11W10465869 Whirlpool Microwave Spring
12WPW10490593 Whirlpool Microwave Lamp Housing
13W10886919 Whirlpool Light Bulb
14W11568584 Whirlpool Microwave Thermostat Fix
15W10211972 Whirlpool Microwave Switch
16WP8205683 Whirlpool Microwave Interlock
17423107022541 Whirlpool Microwave Reflector
18W11193483 Whirlpool Microwave Lamp Lens
19W11440819 Whirlpool Clip
20W10911403 Whirlpool Microwave Turn Motor
21461967825321 Whirlpool Microwave Screw
22W10874474 Whirlpool Door Hinge
23W11344874 Whirlpool Microwave Fan Motor
24W10217711 Whirlpool Microwave Inverter
25W10769147 Whirlpool Microwave Foam Seal
26WPW10120235 Whirlpool Microwave Relief Rod
28W11700292 Whirlpool Spring
29W11684510 Whirlpool Support
30W11214480 Whirlpool Microwave Arm
31W11699906 Whirlpool Sensor
32W11033422 Whirlpool Microwave Interlock
33W11676353 Whirlpool Tt Motor Adapter Omi
348205707 Whirlpool Microwave Support
35WPW10128850 Whirlpool Microwave Arm
