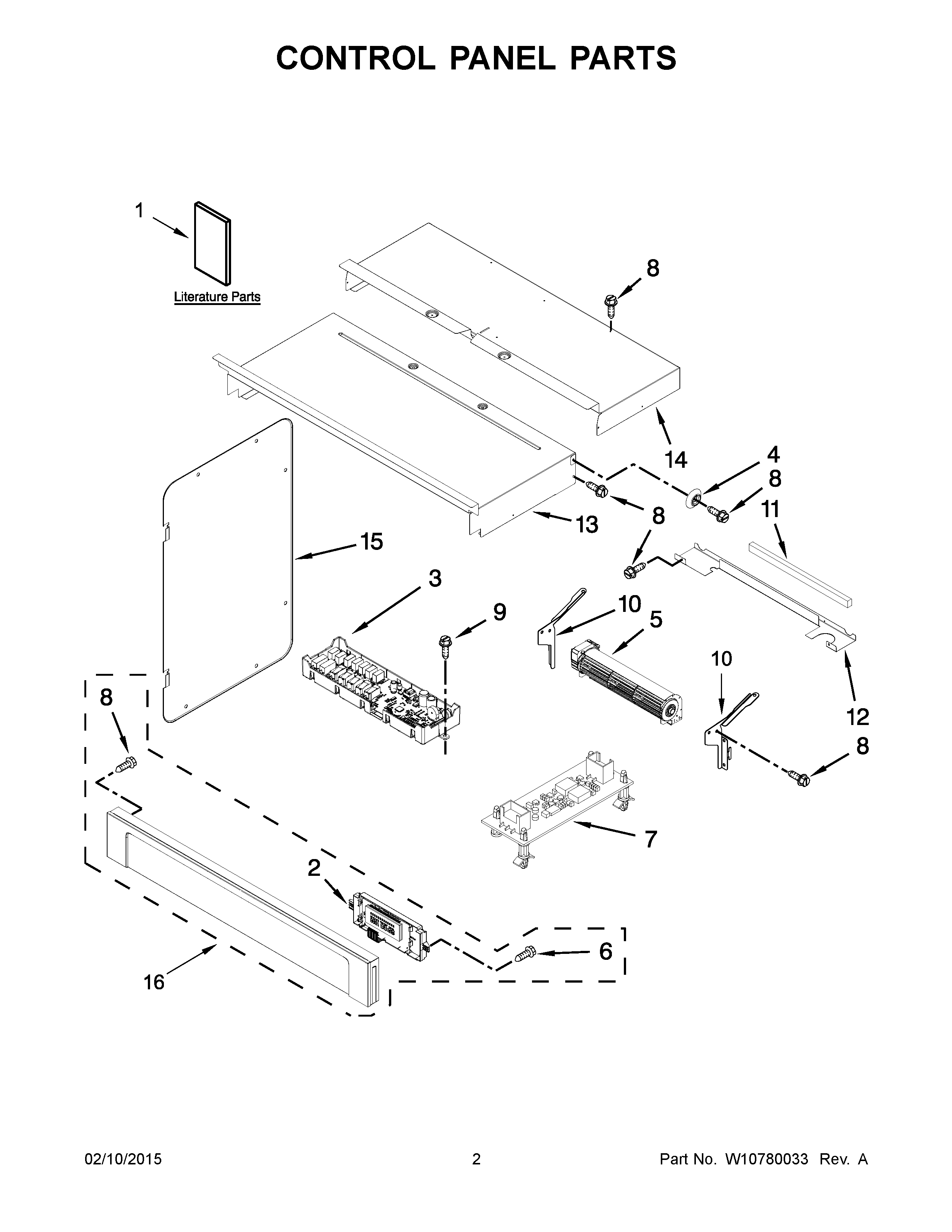

WOC95EC0AH02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10861737 Whirlpool Control Panel
NI	W10389372 Whirlpool Microwave Wire Harness
NI	W11356970 Whirlpool Microwave Wire Harness
NI	W10286223 Whirlpool Wire Harness
NI	W10601519 Whirlpool Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	W10190263 Whirlpool Clip Assembly
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W10861736 Whirlpool Control Panel
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
1C	TECH SHEET (ENGLISH)
1A	MICROWAVE
1	USE & CARE GUIDE (CONVECTION OVEN)
1B	INSTALLATION INSTRUCTIONS
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318158 Whirlpool Access Cover Assembly
14	W10283031 Whirlpool Access Cover
15	CHASSIS, SIDE
16	W10861734 Whirlpool Control Panel
