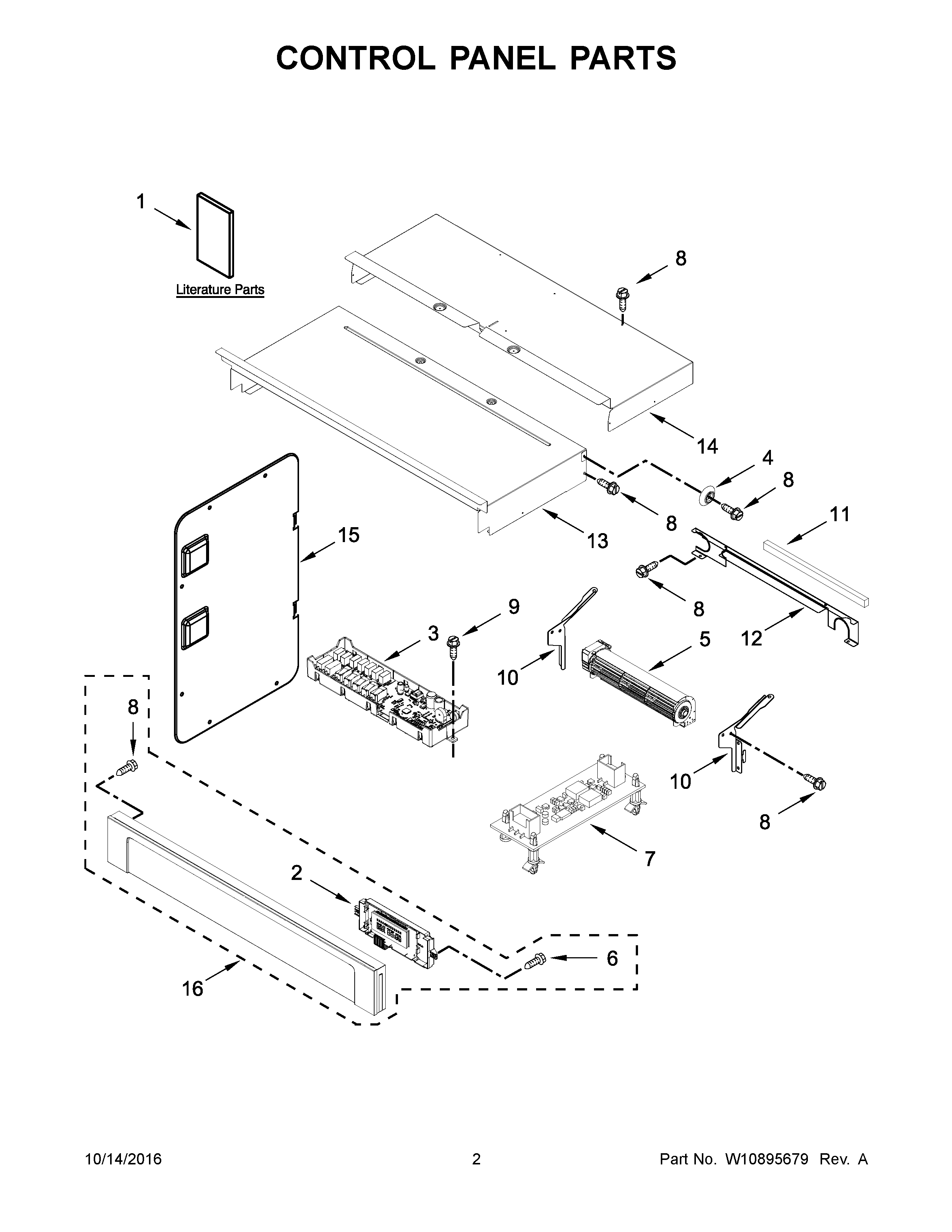

WOC95EC0AH04 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11132989 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	W10389372 Whirlpool Microwave Wire Harness
NI	16515 Whirlpool Clip
NI	W11356970 Whirlpool Microwave Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157181 Whirlpool Wire Harness
NI	W11157222 Whirlpool Wire Harness
1B	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1	GUIDE, USE & CARE (OVEN)
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W11097386-includeCORE Whirlpool W11097386 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	WPW10412514 Whirlpool Electronic Control Board + Core
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	CHASSIS, BACK DIVIDER
13	W10318158 Whirlpool Access Cover Assembly
14	W10283031 Whirlpool Access Cover
15	W10655467 Whirlpool Side Cover
16	W10864174 Whirlpool Control Panel
16A	W10864176 Whirlpool Control Panel
16B	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (WHITE ICE)
