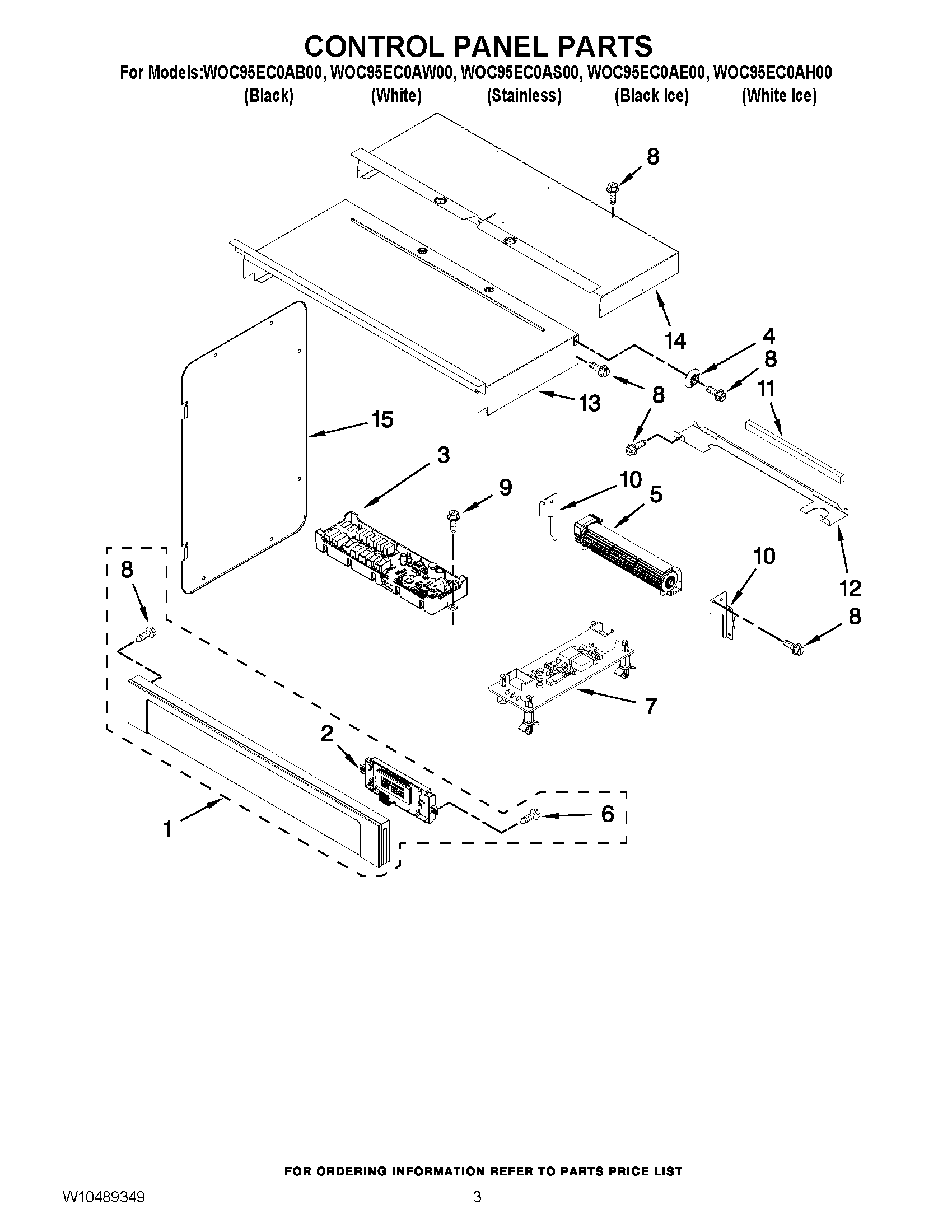

WOC95EC0AS00 02 – CONTROL PANEL PARTS

WOC95EC0AS00 02 – CONTROL PANEL PARTS

Written by

in

WOC95EC0AS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10861736 Whirlpool Control Panel
1W10416018 Whirlpool Control Panel
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK ICE)
1W10566023 Whirlpool Control Panel
1W10861734 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3WPW10632435-includeCORE Whirlpool WPW10632435 Refrigerator Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5BLOWER (LOWER)
6SCREW
7WPW10412514 Whirlpool Electronic Control Board + Core
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12WPW10318191 Whirlpool Mounting Bracket
13W10318158 Whirlpool Access Cover Assembly
14W10283031 Whirlpool Access Cover
15CHASSIS, SIDE
