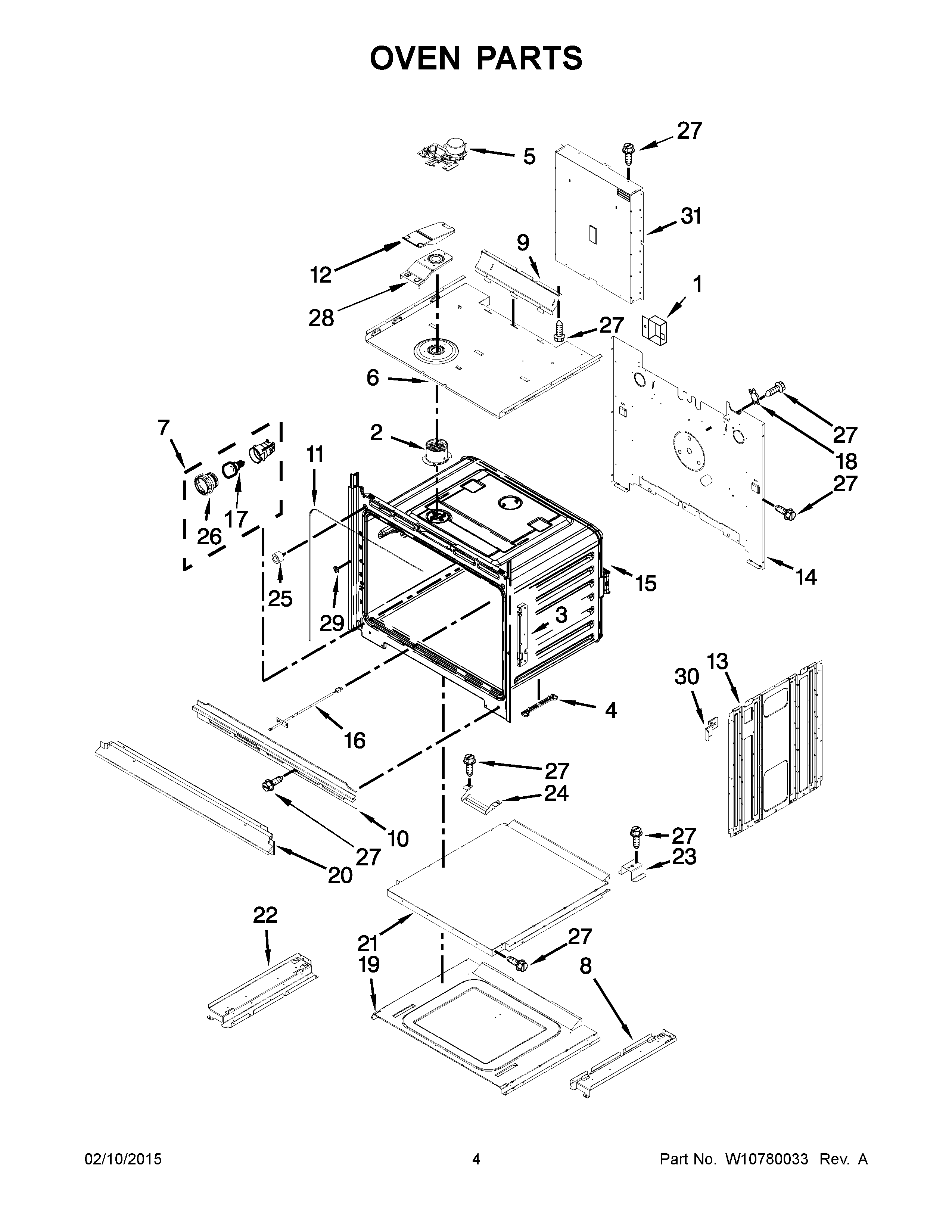

WOC95EC0AS02 03 – OVEN PARTS

Products

Position	Product
NI	W11688731 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
1	8285593 Whirlpool Oven Wire Cover
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	WPW10734063 Whirlpool Indicator Light
8	W10283021 Whirlpool Support
9	W10904163 Whirlpool Vent Deflector
10	W10283042 Whirlpool Oven Vent
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10412711 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20A	WPW10351279 Whirlpool Oven Vent
20	WPW10327373 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	W10283020 Whirlpool Support
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10412722 Whirlpool Light Lens
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	W10759525 Whirlpool Grommet
30	W11376811 Whirlpool Spacer Assembly
31	W10519703 Whirlpool Rear Cover
