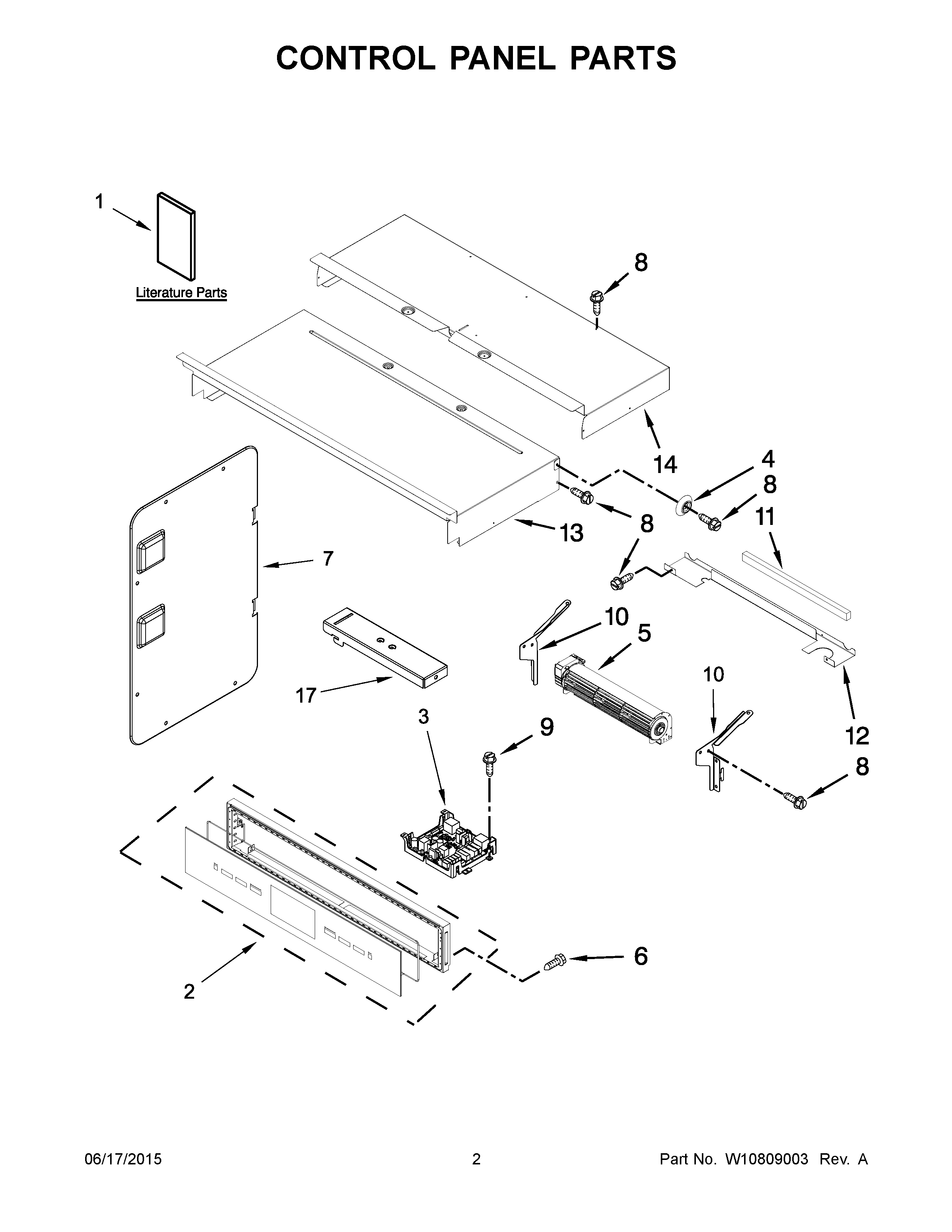

WOC97ES0ES00 02 – CONTROL PANEL PARTS
Written by
in
WOC97ES0ES00 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
W10603947 Whirlpool Wire Harness
NI
W10874060 Whirlpool Microwave Wire Harness
NI
W10389372 Whirlpool Microwave Wire Harness
NI
W10603949 Whirlpool Wire Harness
NI
W10632455 Whirlpool Wire Harness
NI
W10573327 Whirlpool Wire Harness
NI
W11226264 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
1D
TECH SHEET
1B
INSTALLATION INSTRUCTIONS
1A
USE AND CARE GUIDE (MICROWAVE)
1
GUIDE, USE & CARE
1C
INSTALLATION INSTRUCTIONS (BI-LINGUAL)
2
W10756534 Whirlpool Control Panel
3
W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4
W10618105 Whirlpool Spacer
5
W11245567 Whirlpool Blower Assembly
6
SCREW
7
W10655467 Whirlpool Side Cover
8
SCREW
9
SCREW
10A
W10655462 Whirlpool Mounting Bracket
10
W10655463 Whirlpool Bracket Mounting
11
W10491987 Whirlpool Foam Seal
12
W10655465 Whirlpool Mounting Bracket
13
W10318158 Whirlpool Access Cover Assembly
14
W10283031 Whirlpool Access Cover
←
