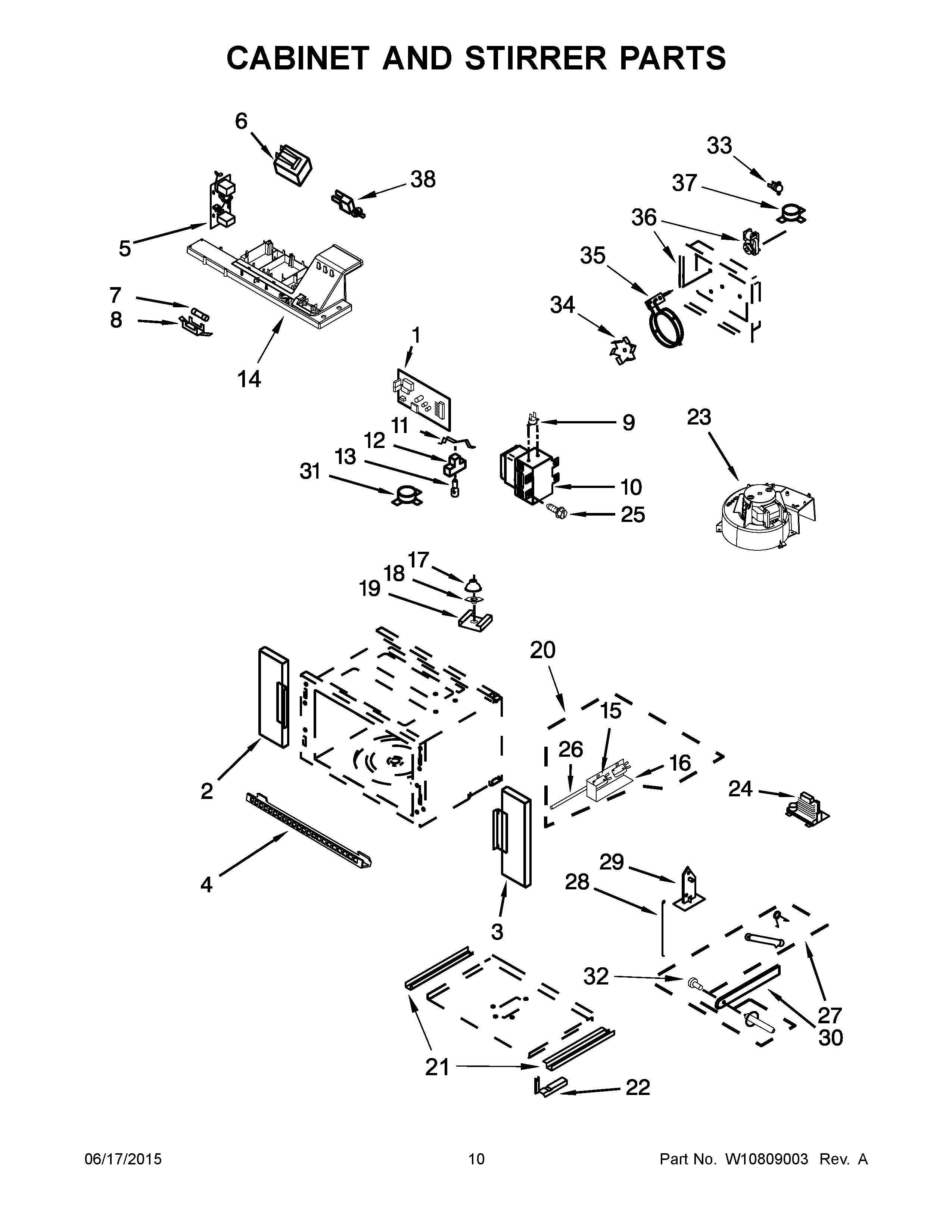

WOC97ES0ES00 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	W10915648-includeCORE Whirlpool W10915648 WPL Microwave Electronic Control Board
2	W10486208 Whirlpool Microwave Trim
3	TRIM, SIDE (RIGHT)
4	VENT, TOP MICROWAVE
5	W11398764 Whirlpool Microwave Filter
6	W11238401 Whirlpool Microwave Transformer
7	W11188752 Whirlpool Microwave Fuse
8	W10245194 Whirlpool Microwave Fuse Block
9	W11233913 Whirlpool Microwave Sensor
10	W11346197 Whirlpool Magnetron
11	W10465869 Whirlpool Microwave Spring
12	WPW10490593 Whirlpool Microwave Lamp Housing
13	W10886919 Whirlpool Light Bulb
14	461967754821 Whirlpool Microwave Magnetic Duct
15	W10211972 Whirlpool Microwave Switch
16	WP8205683 Whirlpool Microwave Interlock
17	423107022541 Whirlpool Microwave Reflector
18	W11193483 Whirlpool Microwave Lamp Lens
19	W11440819 Whirlpool Clip
20	W11449277 Whirlpool Microwave Wire Harness
21	8205707 Whirlpool Microwave Support
22	W10874474 Whirlpool Door Hinge
23	W11344874 Whirlpool Microwave Fan Motor
24	W10217711 Whirlpool Microwave Inverter
25	461967825971 Whirlpool Oven Screw
26	WPW10120235 Whirlpool Microwave Relief Rod
28	W11700292 Whirlpool Spring
29	W11684510 Whirlpool Support
30	W11214480 Whirlpool Microwave Arm
31	W11699906 Whirlpool Sensor
32	WPW10128850 Whirlpool Microwave Arm
33	W11607085 Whirlpool Microwave Thermostat Fix
34	W11512064 Whirlpool Microwave Fan
35	WPW10493735 Whirlpool Microwave Heater
36	461969000371 Whirlpool Microwave Convection Motor
37	W11208292 Whirlpool Microwave Sensor
38	461967842541 Whirlpool Microwave Actuator
