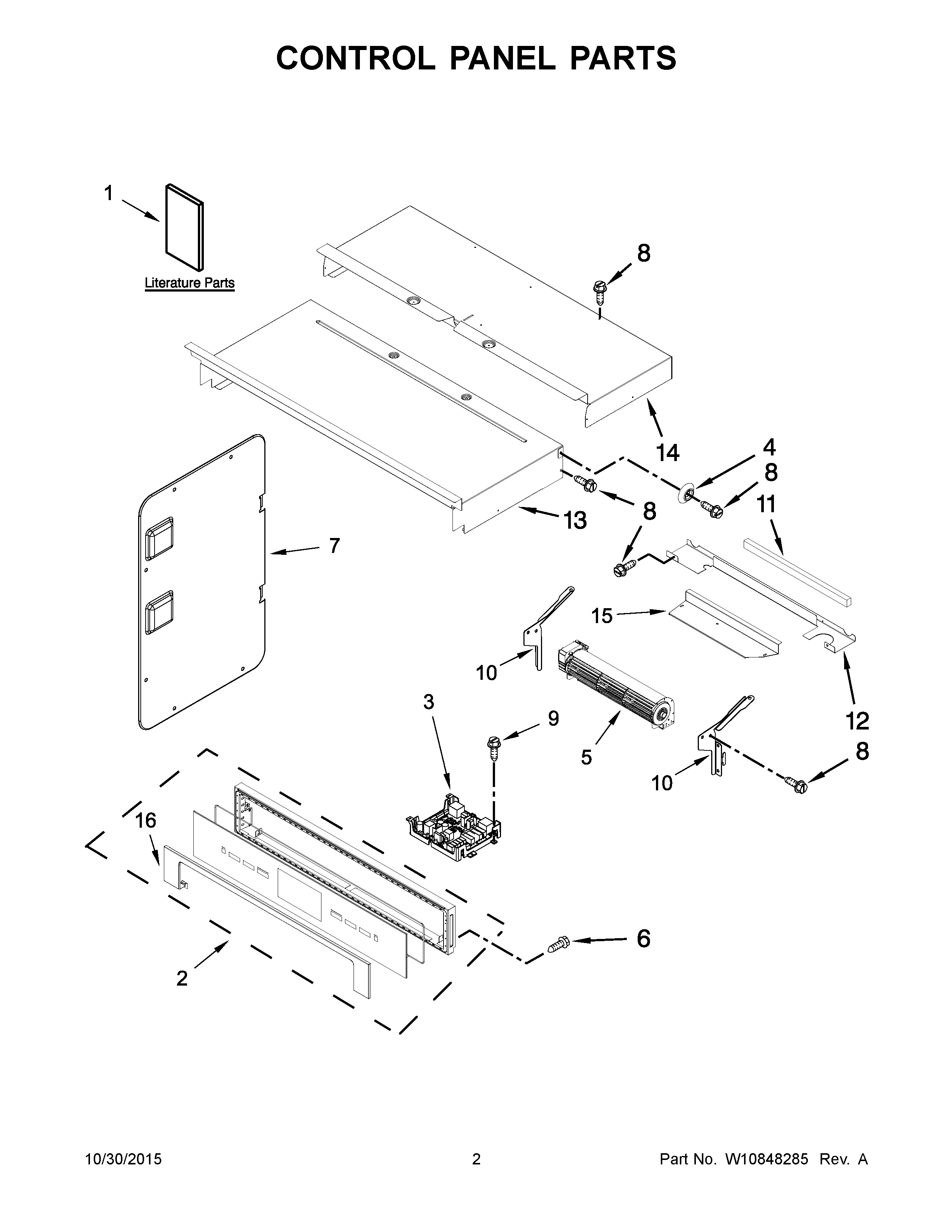

WOC97ES0ES01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10389372 Whirlpool Microwave Wire Harness
NI	W10573327 Whirlpool Wire Harness
NI	W10603947 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W10603949 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10632455 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11226264 Whirlpool Wire Harness
1D	TECH SHEET
1C	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	GUIDE, USE & CARE
1A	USE AND CARE GUIDE (MICROWAVE)
1B	INSTALLATION INSTRUCTIONS
2	W10756534 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	W10655467 Whirlpool Side Cover
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10655465 Whirlpool Mounting Bracket
13	W10318158 Whirlpool Access Cover Assembly
14	W10283031 Whirlpool Access Cover
15	W10681157 Whirlpool Fan Cover
16	SKIN, CONTROL PANEL (STAINLESS)
