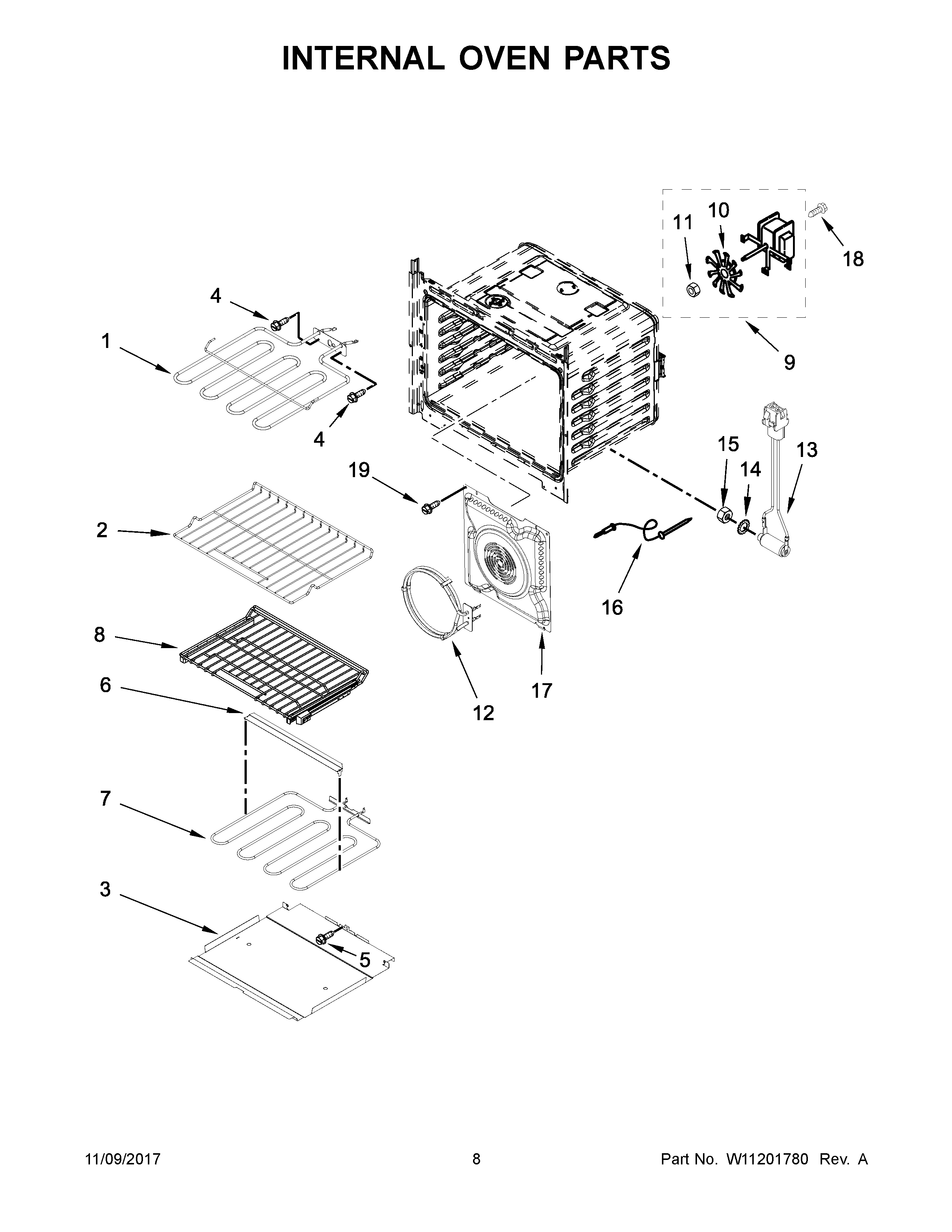

WOC97ES0ES03 05 – INTERNAL OVEN PARTS

WOC97ES0ES03 05 – INTERNAL OVEN PARTS

Written by

in

WOC97ES0ES03 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2W11218798 Whirlpool Rack
3W10318198 Whirlpool Bake Tray
4SCREW
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10745649 Whirlpool Oven Rack
9W10860984 Whirlpool Fan Motor
10W10819914 Whirlpool Convection Fan
11W10794042 Whirlpool Nut
12WPW10260248 Whirlpool Element Assembly
13W11220388 Whirlpool Jack Probe
14WP9755547 Whirlpool Lockwasher
15WP9755546 Whirlpool Locknut
16WP9755542 Whirlpool Oven Meat Probe
17W10359278 Whirlpool Baffle Conv
18W10850807 Whirlpool Screw
19WP74003976 Whirlpool Screw
