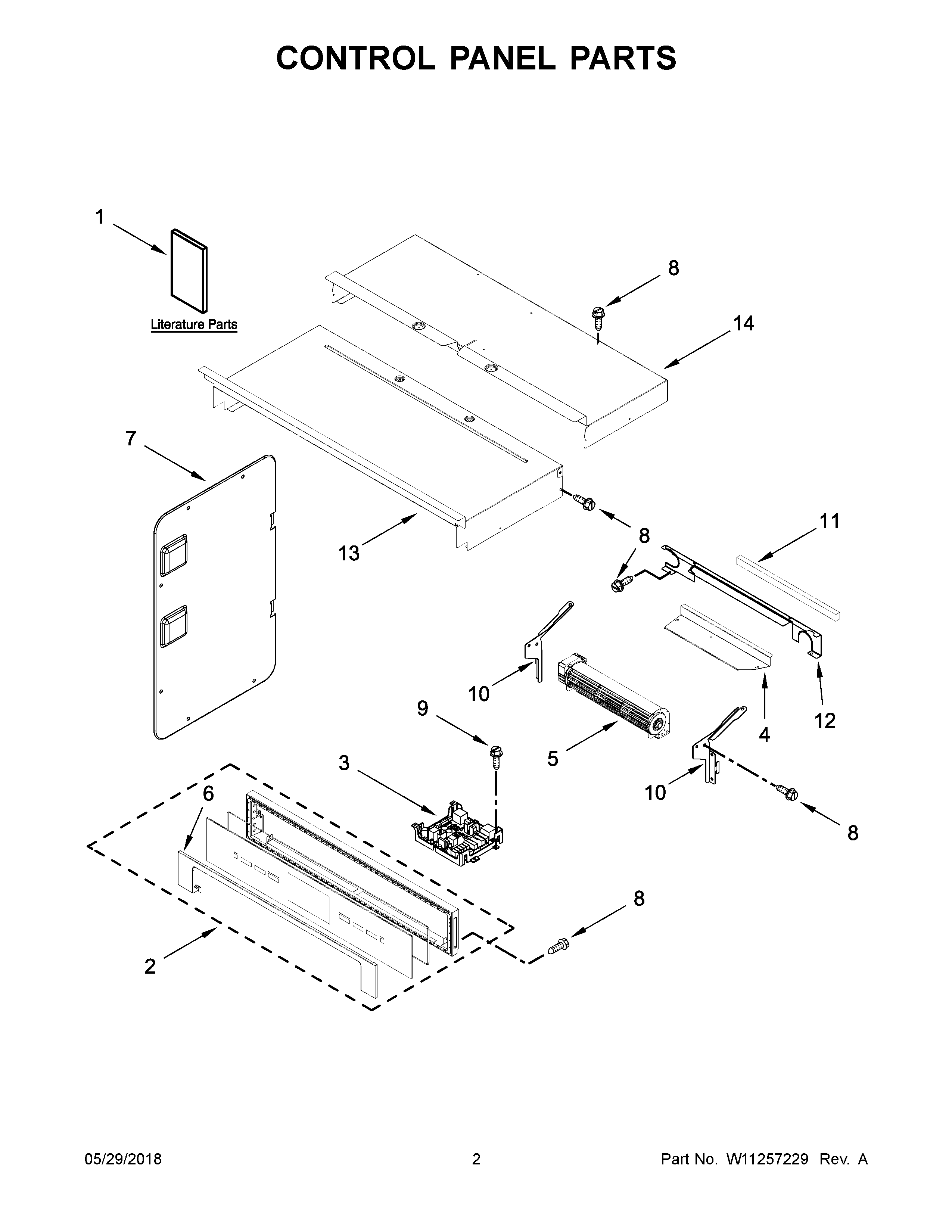

WOC97ES0ES04 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11157223 Whirlpool Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	W11356977 Whirlpool Wire Harness
NI	W11226264 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11132989 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W10603949 Whirlpool Wire Harness
NI	W11157180 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
1A	USE AND CARE GUIDE (MICROWAVE)
1B	INSTALLATION INSTRUCTIONS
1C	TECH SHEET
1	GUIDE, USE & CARE
2	W10756534 Whirlpool Control Panel
3	W11179310-includeCORE Whirlpool W11179310 Washer Electronic Control Board + Core
4	W10681157 Whirlpool Fan Cover
5	W11245567 Whirlpool Blower Assembly
6	SKIN, CONTROL PANEL (STAINLESS)
7	W10655467 Whirlpool Side Cover
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	CHASSIS, BACK DIVIDER
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
