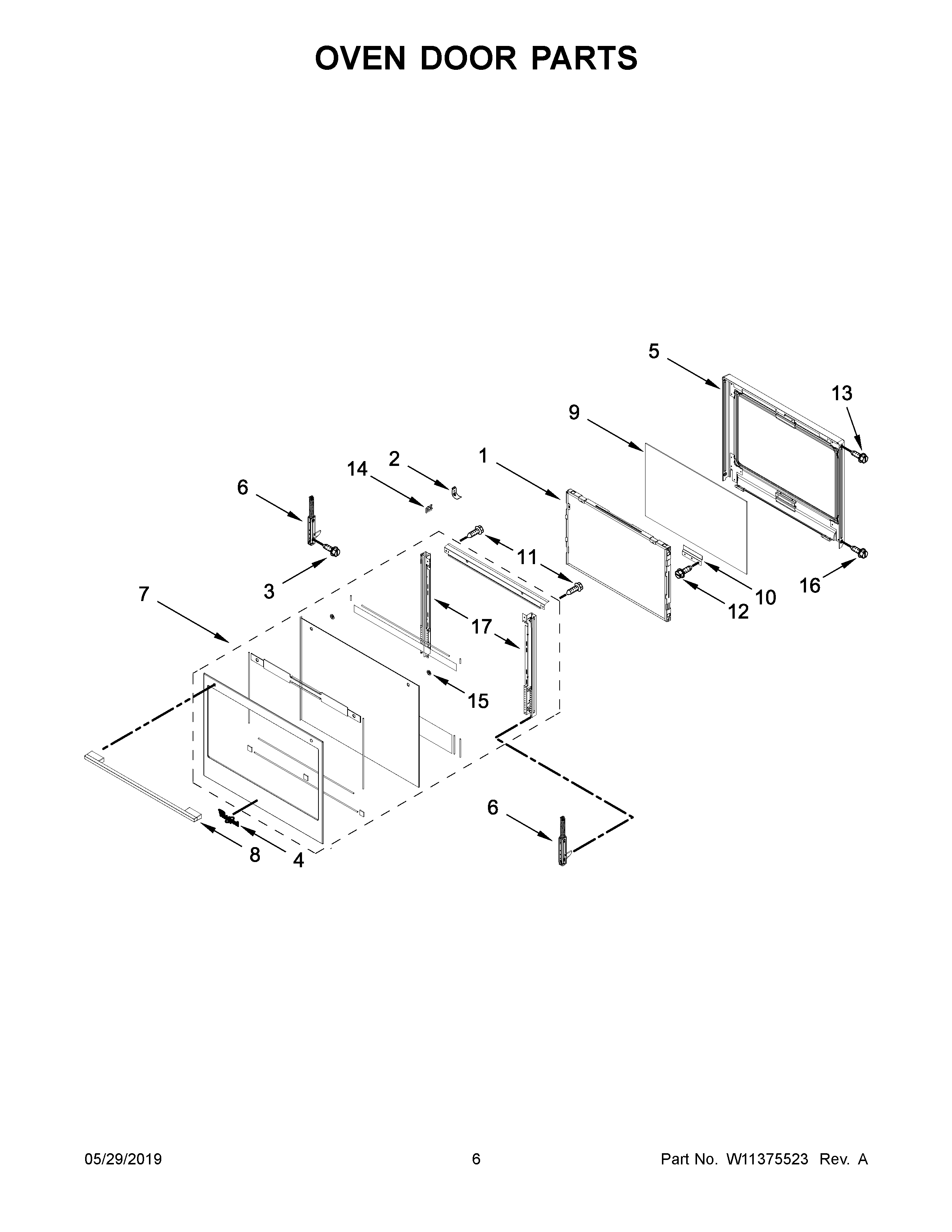

WOCA7EC0HN02 04 – OVEN DOOR PARTS

WOCA7EC0HN02 04 – OVEN DOOR PARTS

Written by

in

WOCA7EC0HN02 04 – OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10709147 Whirlpool Glass Frame
6W11045551 Whirlpool Door Hinge
7ASSEMBLY, DOOR GLASS (SUNSET BRONZE)
8W11248076 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11W10831019 Whirlpool Stove Door Screw
12SCREW
13SCREW
14W11025615 Whirlpool Glass Bracket
15W11676355 Whirlpool Washer
16SCREW (BLACK)
17RAIL, DOOR SIDE (LEFT)
17ARAIL, DOOR SIDE (RIGHT)
