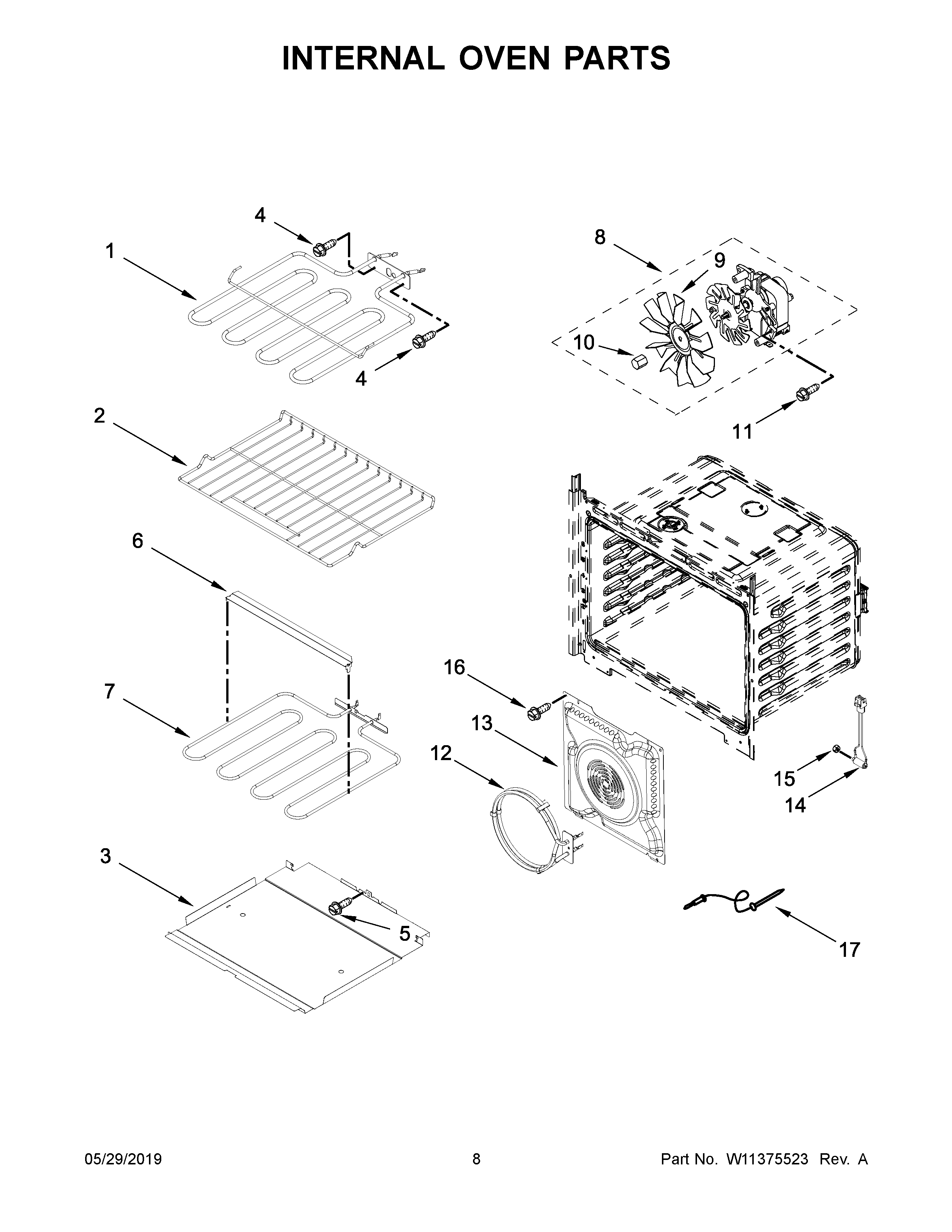

WOCA7EC0HN02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	W11218798 Whirlpool Rack
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W10860984 Whirlpool Fan Motor
9	W10819914 Whirlpool Convection Fan
10	W10794042 Whirlpool Nut
11	W10850807 Whirlpool Screw
12	WPW10260248 Whirlpool Element Assembly
13	BAFFLE, CONVECTION
14	W11220388 Whirlpool Jack Probe
15	W11231343 Whirlpool Lock Nut
16	WP74003976 Whirlpool Screw
17	WP9755542 Whirlpool Oven Meat Probe
