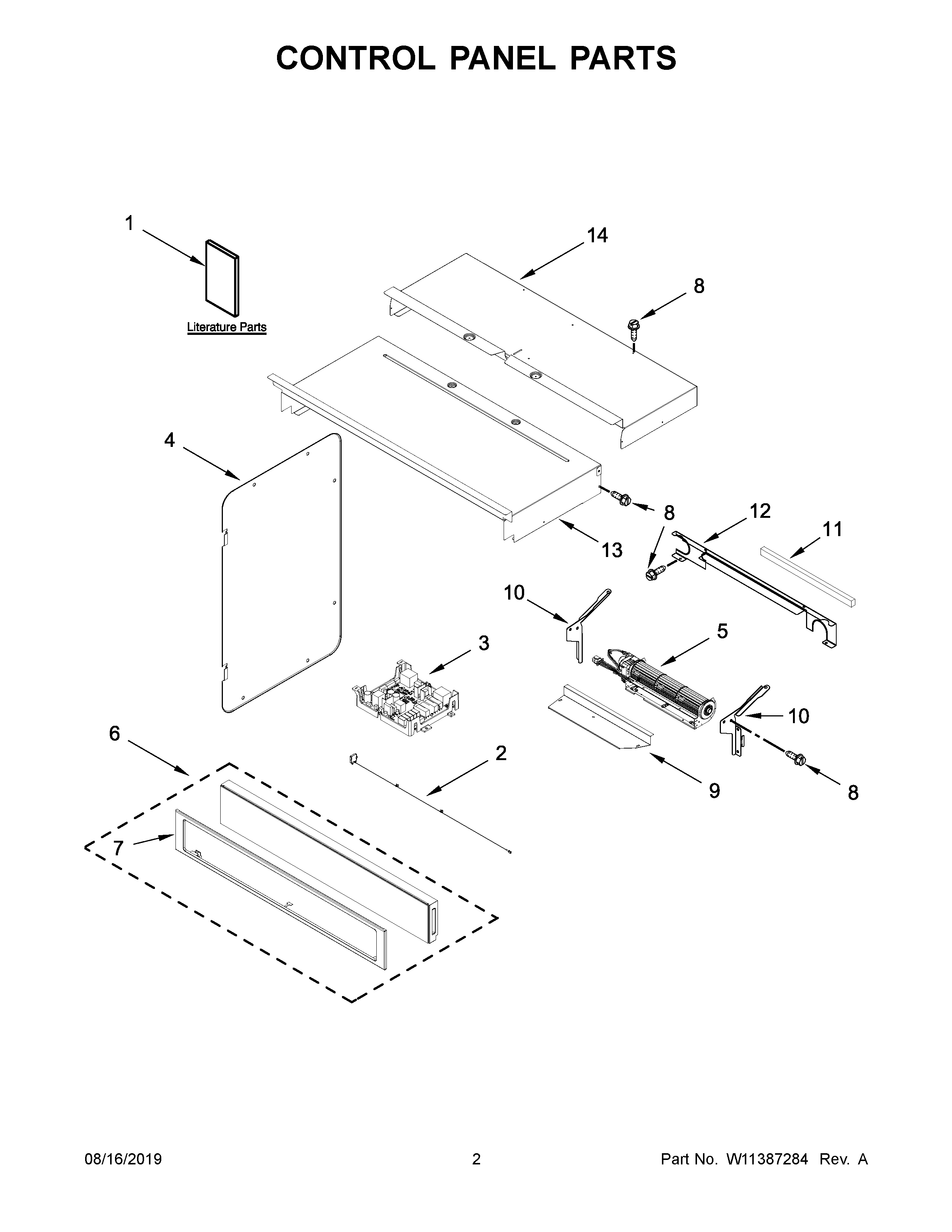

WOCA7EC0HN03 02 – CONTROL PANEL PARTS

WOCA7EC0HN03 02 – CONTROL PANEL PARTS

Written by

in

WOCA7EC0HN03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11449277 Whirlpool Microwave Wire Harness
NIW11356990 Whirlpool Wire Harness
NIW11325605 Whirlpool Wire Harness
NIW11356954 Whirlpool Microwave Wire Harness
NIW11356968 Whirlpool Wire Harness
NIHARNESS, MAIN
NIHARNESS, SIGNAL
NIW11356991 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
NIW11356977 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
NIWPW10339879 Whirlpool Wire Tie
NI16515 Whirlpool Clip
1GUIDE, USE & CARE (OVEN)
1BINSTRUCTIONS, INSTALLATION
1EDIAGRAM, WIRING
1AGUIDE, USE & CARE (MICROWAVE OVEN)
1DSHEET, TECH
1CGUIDE, INTERNET CONNECTIVITY
2W11537624 Whirlpool Antenna Assembly
3W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4W10655467 Whirlpool Side Cover
5W11248652 Whirlpool Blower
6W11428589 Whirlpool Console + Core
7W11162715 Whirlpool Skin Panel
8SCREW
9W10681157 Whirlpool Fan Cover
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12CHASSIS, BACK DIVIDER
13W10318158 Whirlpool Access Cover Assembly
14W10588732 Whirlpool Cover Access
