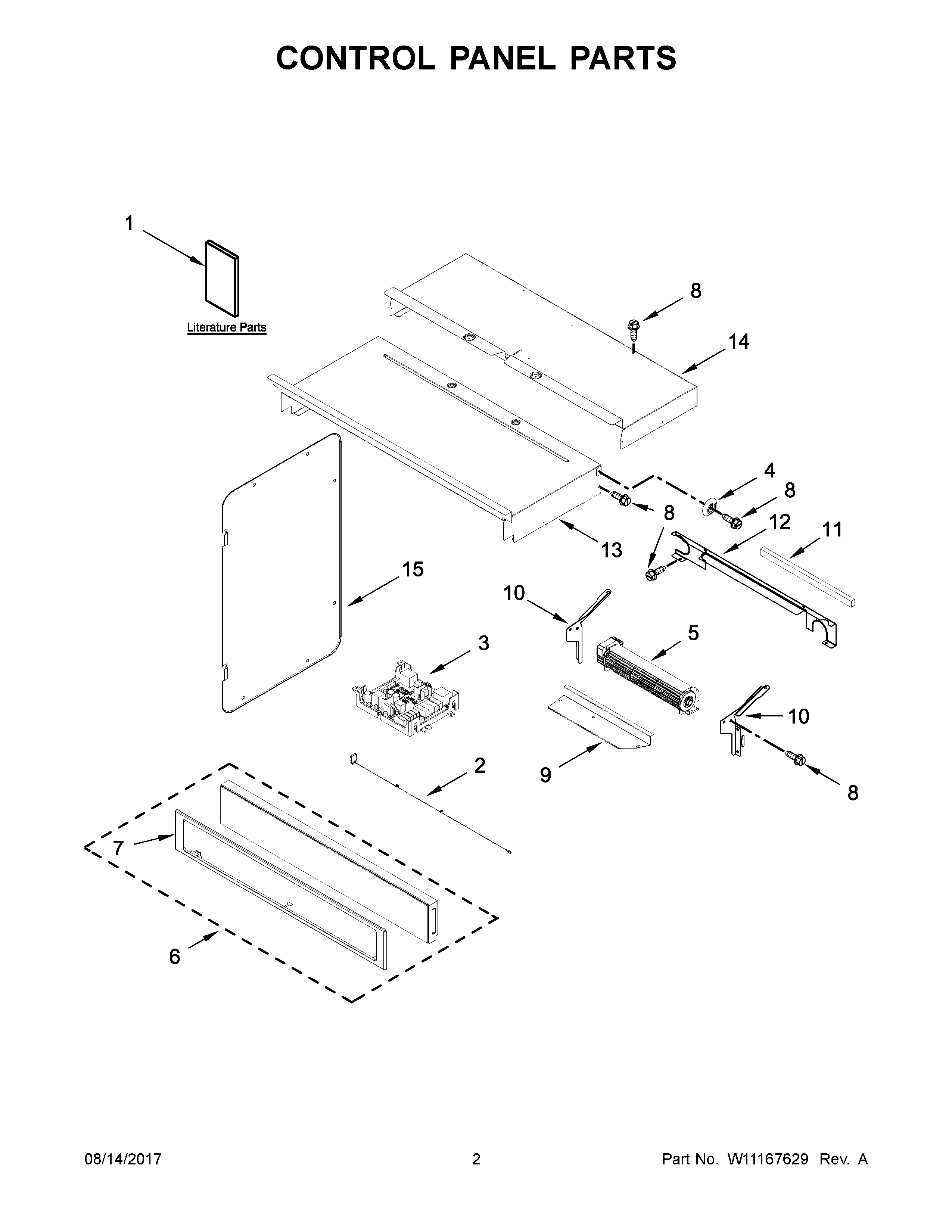

WOCA7EC0HZ00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11356990 Whirlpool Wire Harness
NI	W10874060 Whirlpool Microwave Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W11449277 Whirlpool Microwave Wire Harness
NI	W11356954 Whirlpool Microwave Wire Harness
NI	HARNESS, GROUND CONSOLE COMBO
NI	W11356977 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	WPW10339879 Whirlpool Wire Tie
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
1B	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE (OVEN)
1A	GUIDE, USE & CARE (MICROWAVE OVEN)
1D	SHEET, TECH
1E	DIAGRAM, WIRING
1C	GUIDE, INTERNET CONNECTIVITY
2	W11537624 Whirlpool Antenna Assembly
3	W11261165-includeCORE Whirlpool W11261165 Washer Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6A	W11428588 Whirlpool Console + Core
6	W11428589 Whirlpool Console + Core
7	W11162715 Whirlpool Skin Panel
7A	W11156404 Whirlpool Skin Panel
8	SCREW
9	W10681157 Whirlpool Fan Cover
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10728475 Whirlpool Foam Seal
12	CHASSIS, BACK DIVIDER
13	W10318158 Whirlpool Access Cover Assembly
14	W10588732 Whirlpool Cover Access
15	W10655467 Whirlpool Side Cover
