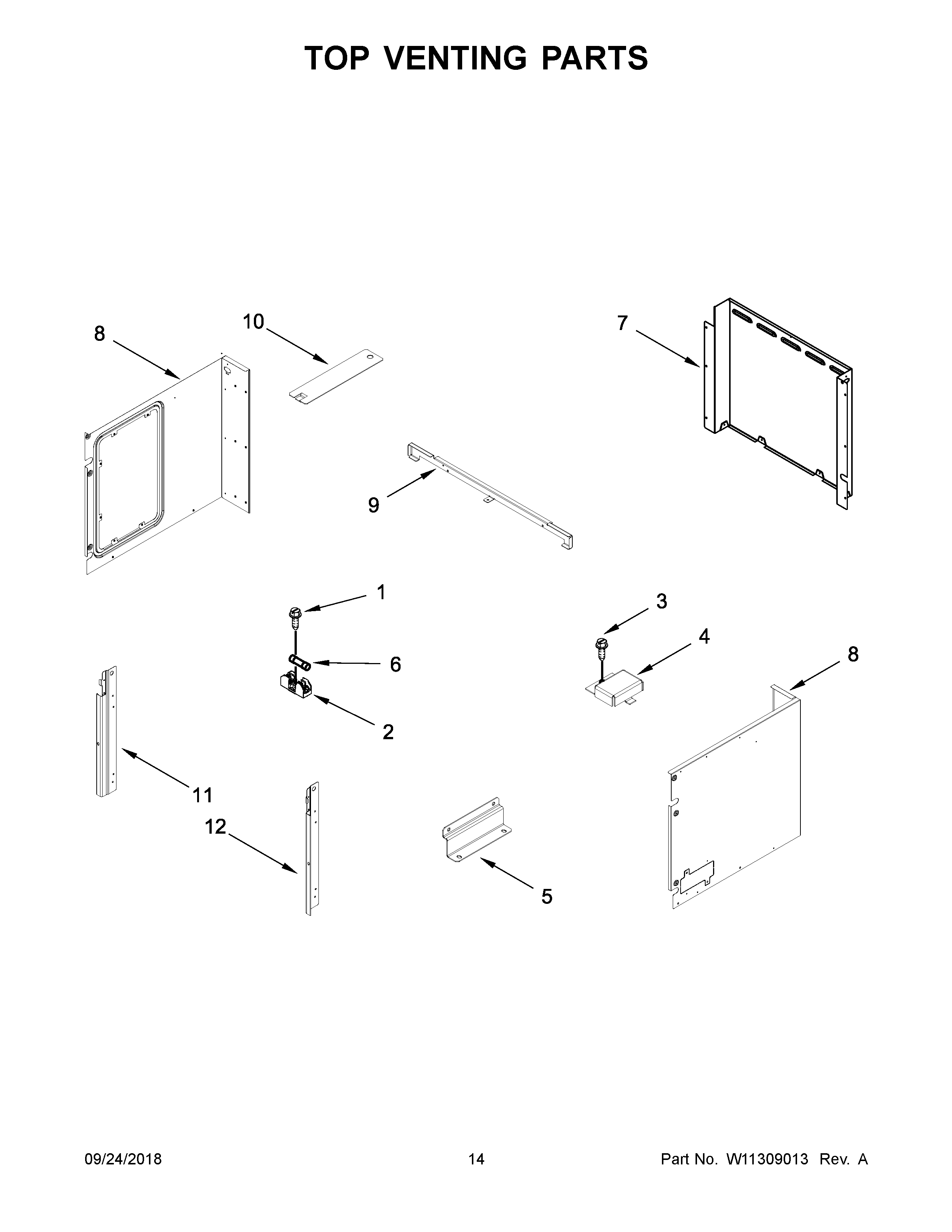

WOCA7EC0HZ01 08 – TOP VENTING PARTS

WOCA7EC0HZ01 08 – TOP VENTING PARTS

Written by

in

WOCA7EC0HZ01 08 – TOP VENTING PARTS

Products

PositionProduct
1SCREW
24454949 Whirlpool Oven Fuse Block
3SCREW
48285593 Whirlpool Oven Wire Cover
5W10283024 Whirlpool Mounting Bracket
6WPW10017410 Whirlpool Fuse
7COVER, BACK DUCT
8CHASSIS, COMBO SIDE (LEFT)
8AW11037649 Whirlpool Side Cover
9W10283022 Whirlpool Support
10W10356437 Whirlpool Cover Access
11W10710302 Whirlpool Mounting Bracket
12W10710309 Whirlpool Mounting Bracket
