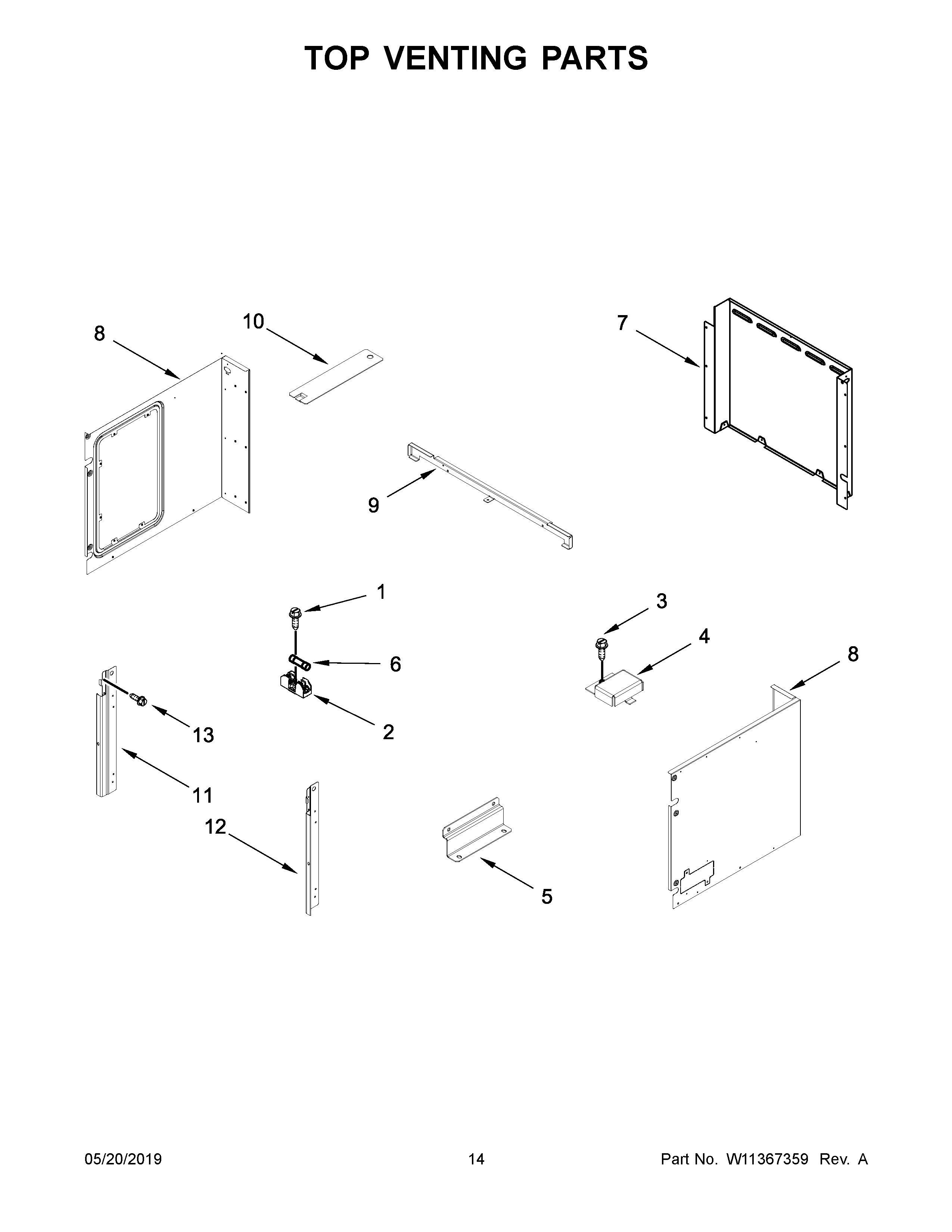

WOCA7EC0HZ02 08 – TOP VENTING PARTS

Products

Position	Product
1	SCREW
2	4454949 Whirlpool Oven Fuse Block
3	SCREW
4	8285593 Whirlpool Oven Wire Cover
5	W10283024 Whirlpool Mounting Bracket
6	WPW10017410 Whirlpool Fuse
7	COVER, BACK DUCT
8	CHASSIS, COMBO SIDE (LEFT)
8A	W11037649 Whirlpool Side Cover
9	W10283022 Whirlpool Support
10	W10356437 Whirlpool Cover Access
11	W10710302 Whirlpool Mounting Bracket
12	W10710309 Whirlpool Mounting Bracket
13	SCREW (BLACK)
