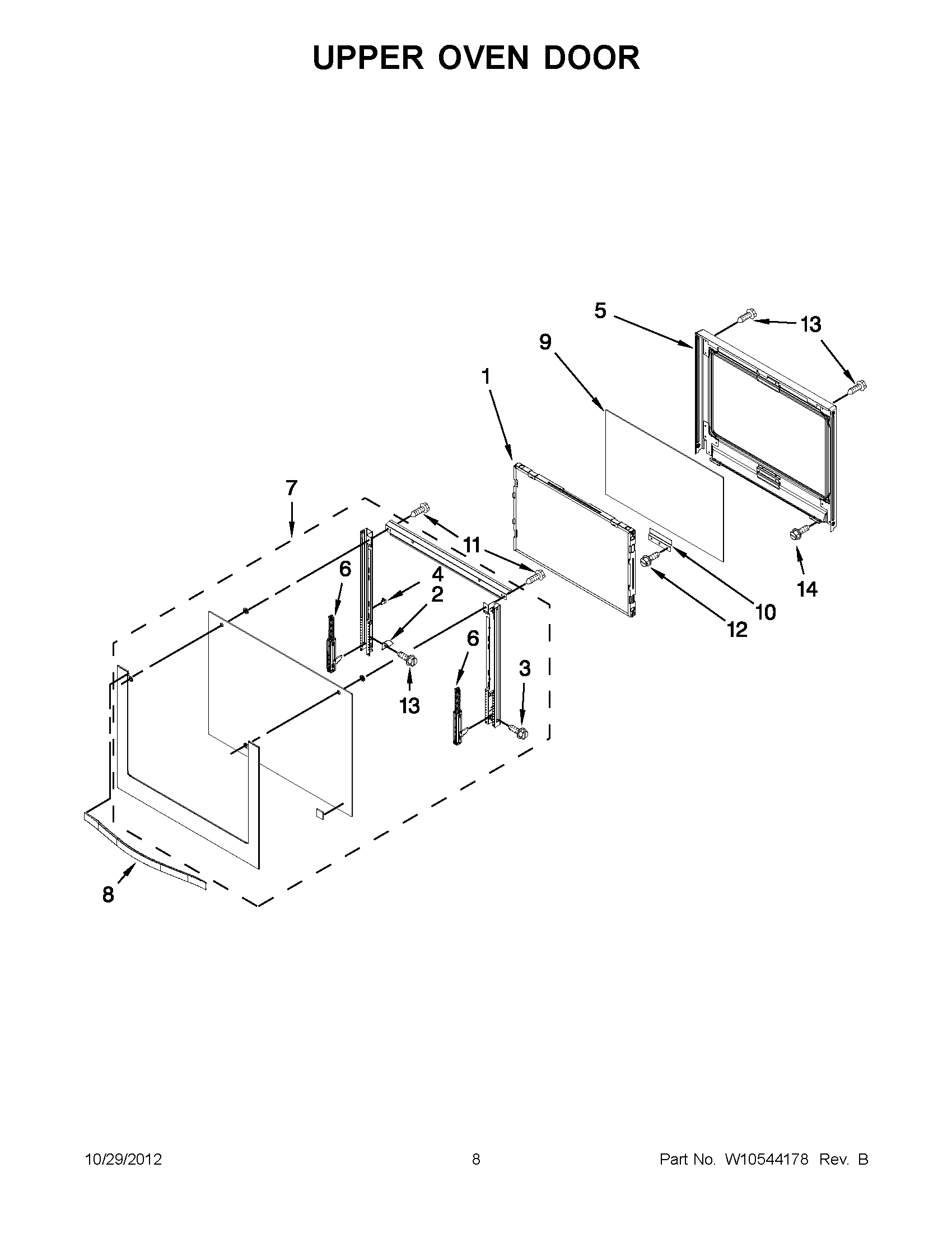

WOD51EC0AB01 04 – UPPER OVEN DOOR

WOD51EC0AB01 04 – UPPER OVEN DOOR

Written by

in

WOD51EC0AB01 04 – UPPER OVEN DOOR

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4WPW10392683 Whirlpool Bumper
5WPW10709147 Whirlpool Glass Frame
6W10825778 Whirlpool Whirlpool Door Hinge
7ASSEMBLY, DOOR GLASS (BLACK)
7ASSEMBLY, DOOR GLASS (WHITE)
7ASSEMBLY, DOOR GLASS (BISCUIT)
7W10577911 Whirlpool Door Glass
8W10327379 Whirlpool Door Handle
8WPW10317136 Whirlpool Door Handle
8W10317138 Whirlpool Door Handle
8W10327380 Whirlpool Handle Door
9WPW10618107 Whirlpool Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11WP488130 Whirlpool Air Conditioner Nut
12SCREW
13SCREW
14SCREW (BLACK)
