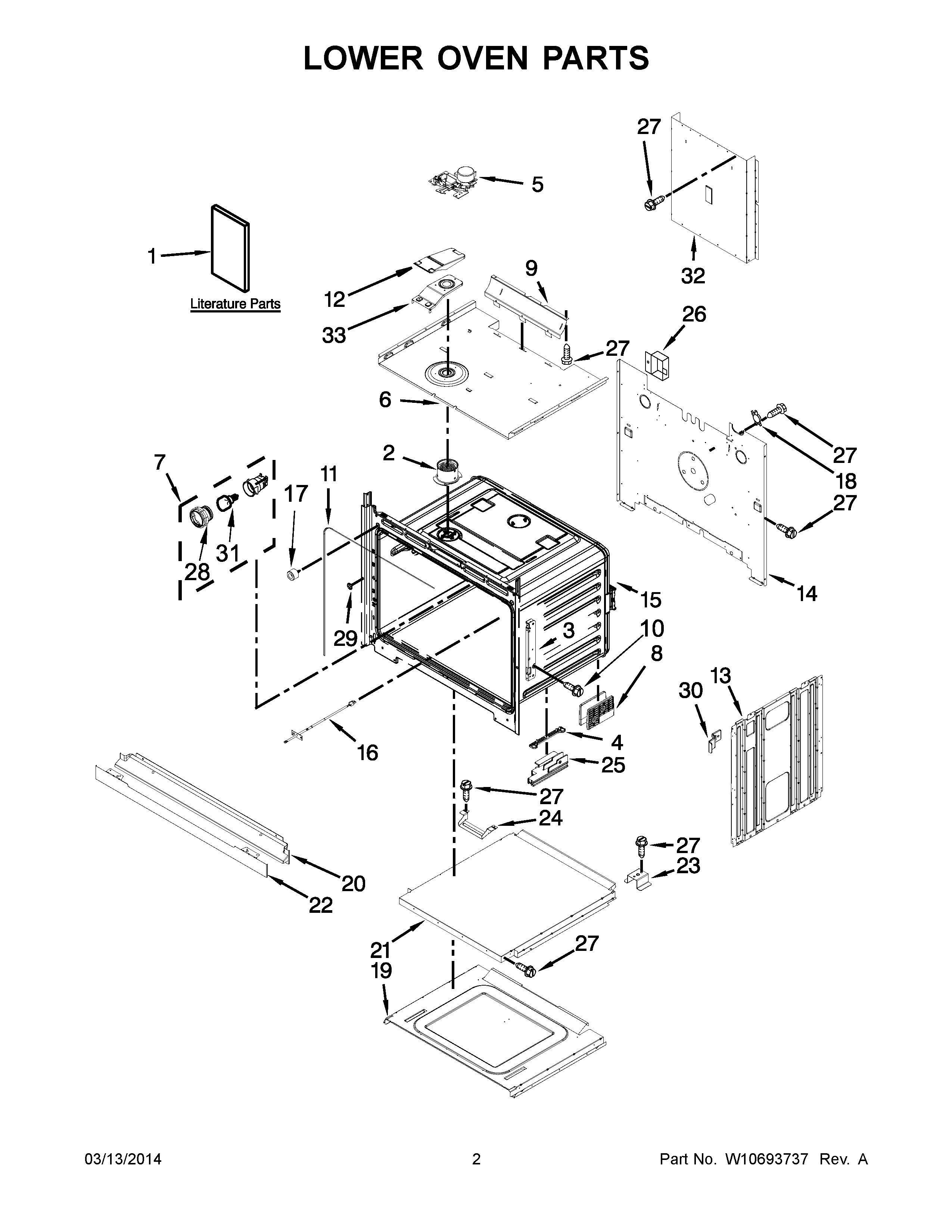

WOD51EC0AB02 02 – LOWER OVEN PARTS
Written by
in
WOD51EC0AB02 02 – LOWER OVEN PARTS
Products
Position
Product
NI
W11684789 Whirlpool Insulation
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11688731 Whirlpool Insulation
1
INSTRUCTIONS, INSTALLATION
1
TECH SHEET
1
USE & CARE GUIDE
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
WPW10318220 Whirlpool Spacer
5
W10883049 Whirlpool Door Latch
6
TOP, CHASSIS
7
WPW10734063 Whirlpool Indicator Light
8
W10821321 Whirlpool Leveling Foot
9
W10904163 Whirlpool Vent Deflector
10
WPW10254050 Whirlpool Screw
11
W11623080 Whirlpool Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
W10282990 Whirlpool Rear Cover
16
PROBE, SENSOR
17
WPW10351278 Whirlpool Bumper
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
W11238787 Whirlpool Manifold Pipe
20
WPW10351279 Whirlpool Oven Vent
20
WPW10327373 Whirlpool Oven Vent
20
W10506346 Whirlpool Oven Vent
21
WPW10283008 Whirlpool Access Cover
22
WPW10327377 Whirlpool Trim Kit
22
WPW10351236 Whirlpool Trim
22
W10504024 Whirlpool Trim
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
FOOT, FRONT (LEFT)
25
W10848812 Whirlpool Level Foot
26
8285593 Whirlpool Oven Wire Cover
27
SCREW
28
WPW10412722 Whirlpool Light Lens
29
W10759525 Whirlpool Grommet
30
W10347649 Whirlpool Spacer
31
WPW10412711 Whirlpool Light Bulb
32
DUCT, CHASSIS BACK (LOWER)
33
W10616809 Whirlpool Vent Tube
←
