WOD51EC0AB02 03 – UPPER OVEN PARTS
Written by
in

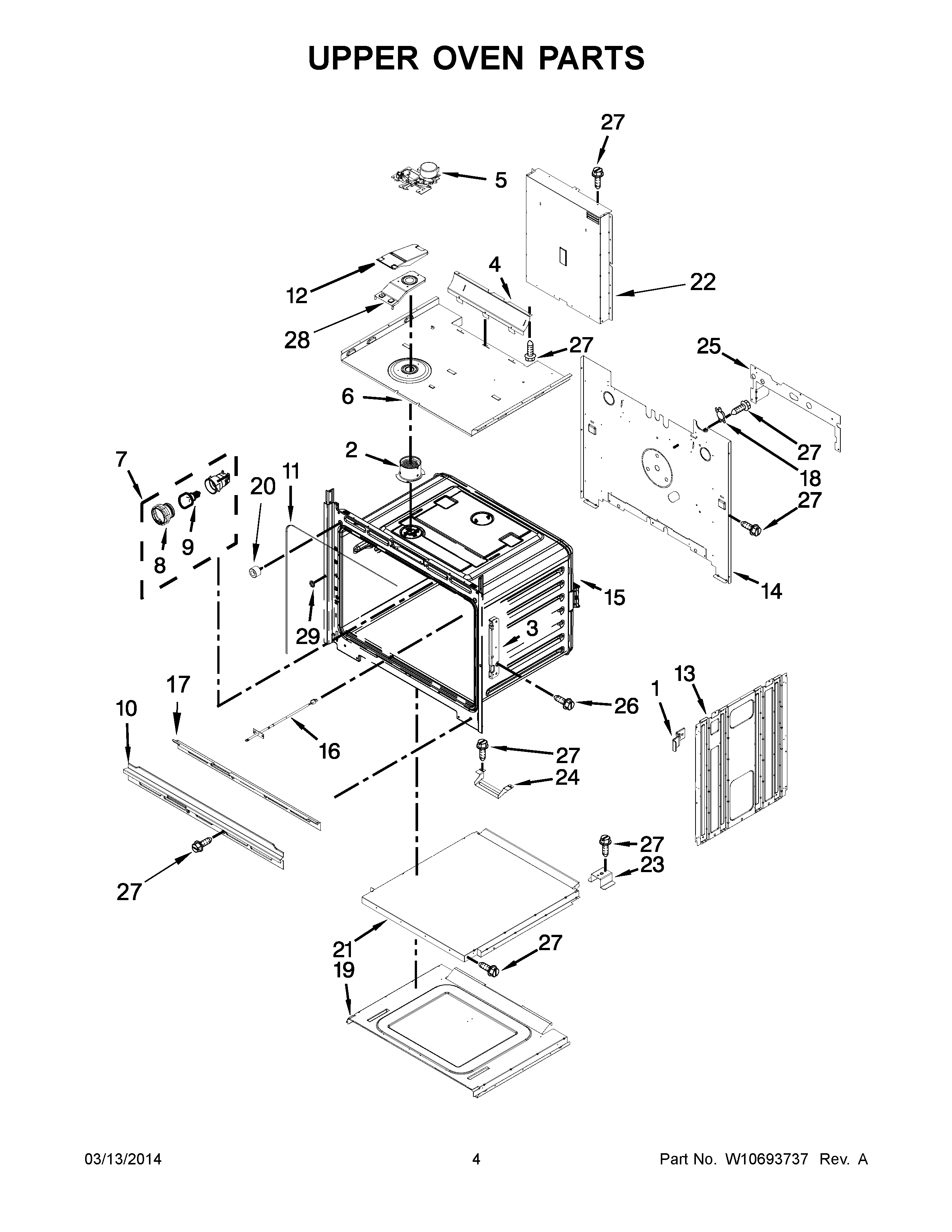

WOD51EC0AB02 03 – UPPER OVEN PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11684789 Whirlpool Insulation
NI
W11688731 Whirlpool Insulation
1
W10347649 Whirlpool Spacer
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
W10904163 Whirlpool Vent Deflector
5
W10883049 Whirlpool Door Latch
6
TOP, CHASSIS
7
WPW10734063 Whirlpool Indicator Light
8
WPW10412722 Whirlpool Light Lens
9
WPW10412711 Whirlpool Light Bulb
10
VENT, CENTER 30“
11
W11623080 Whirlpool Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
W10282990 Whirlpool Rear Cover
16
PROBE, SENSOR
17
VENT, TOP 30“
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
W11238787 Whirlpool Manifold Pipe
20
WPW10351278 Whirlpool Bumper
21
WPW10283008 Whirlpool Access Cover
22
W10318196 Whirlpool BA Chassis
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
BRACKET, U-SHAPE
26
WPW10254050 Whirlpool Screw
27
SCREW
28
W10616809 Whirlpool Vent Tube
29
W10759525 Whirlpool Grommet
←
