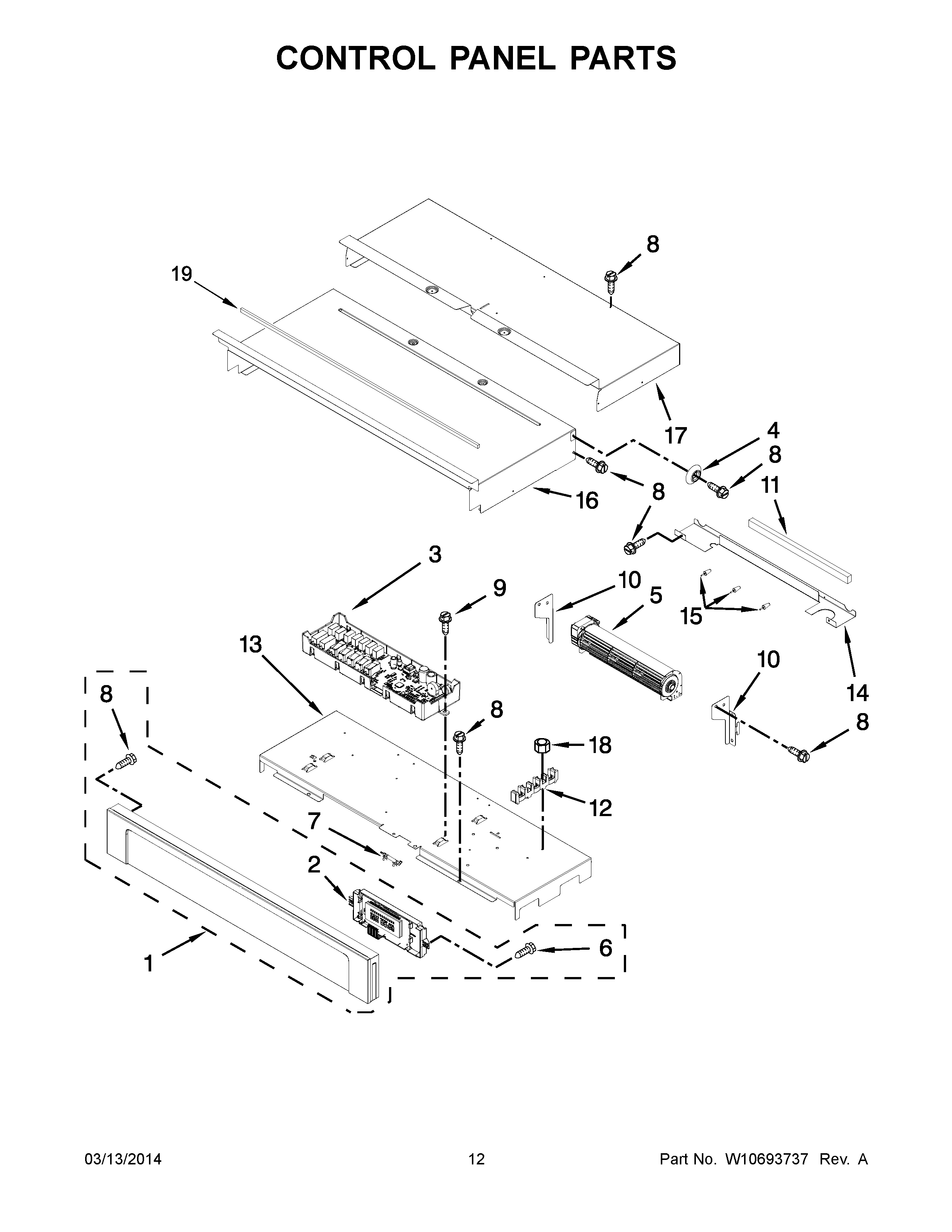

WOD51EC0AS02 07 – CONTROL PANEL PARTS

WOD51EC0AS02 07 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BISCUIT)
1W10864422 Whirlpool Control Panel
1W10861650 Whirlpool Control Panel
1W10861649 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3W10803217 Whirlpool Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5WPW10661038 Whirlpool Blower
5WPW10641253 Whirlpool Blower Motor
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10W10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10347650 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18Nut
19WPW10657548 Whirlpool Foam Seal
