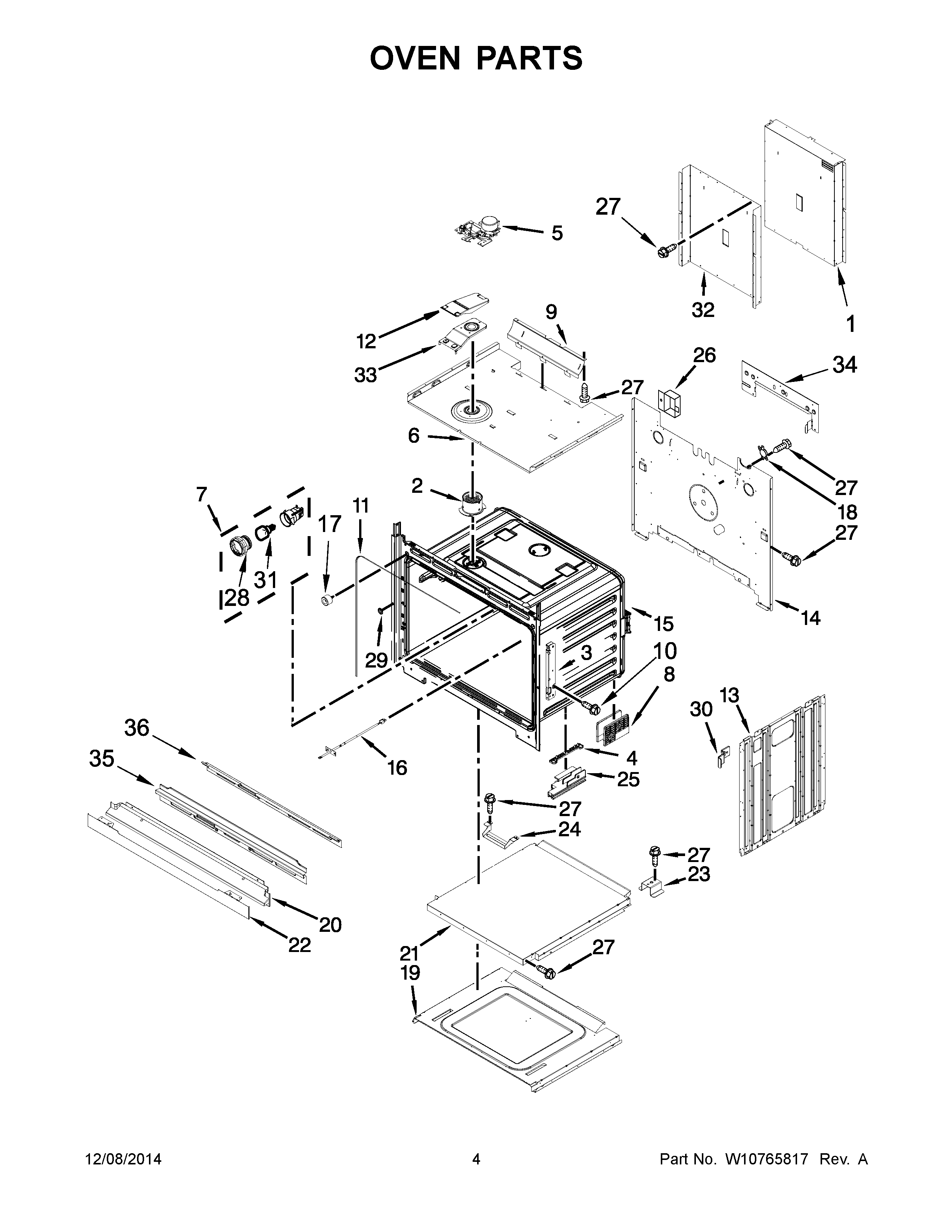

WOD51EC0AS03 03 – OVEN PARTS

Products

Position	Product
NI	W11684789 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688731 Whirlpool Insulation
1	W10318196 Whirlpool BA Chassis
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	WPW10734063 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	BACK, CHASSIS
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10351278 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20A	W10506346 Whirlpool Oven Vent
20	WPW10327373 Whirlpool Oven Vent
20B	WPW10351279 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22B	WPW10327377 Whirlpool Trim Kit
22	WPW10351236 Whirlpool Trim
22A	W10504024 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	W10848812 Whirlpool Level Foot
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10412722 Whirlpool Light Lens
29	W10759525 Whirlpool Grommet
30	W10347649 Whirlpool Spacer
31	WPW10412711 Whirlpool Light Bulb
32	DUCT, CHASSIS BACK (LOWER)
33	W10616809 Whirlpool Vent Tube
34	W10588736 Whirlpool Support Bracket
35	VENT, CENTER 30``
36	VENT, TOP 30``
