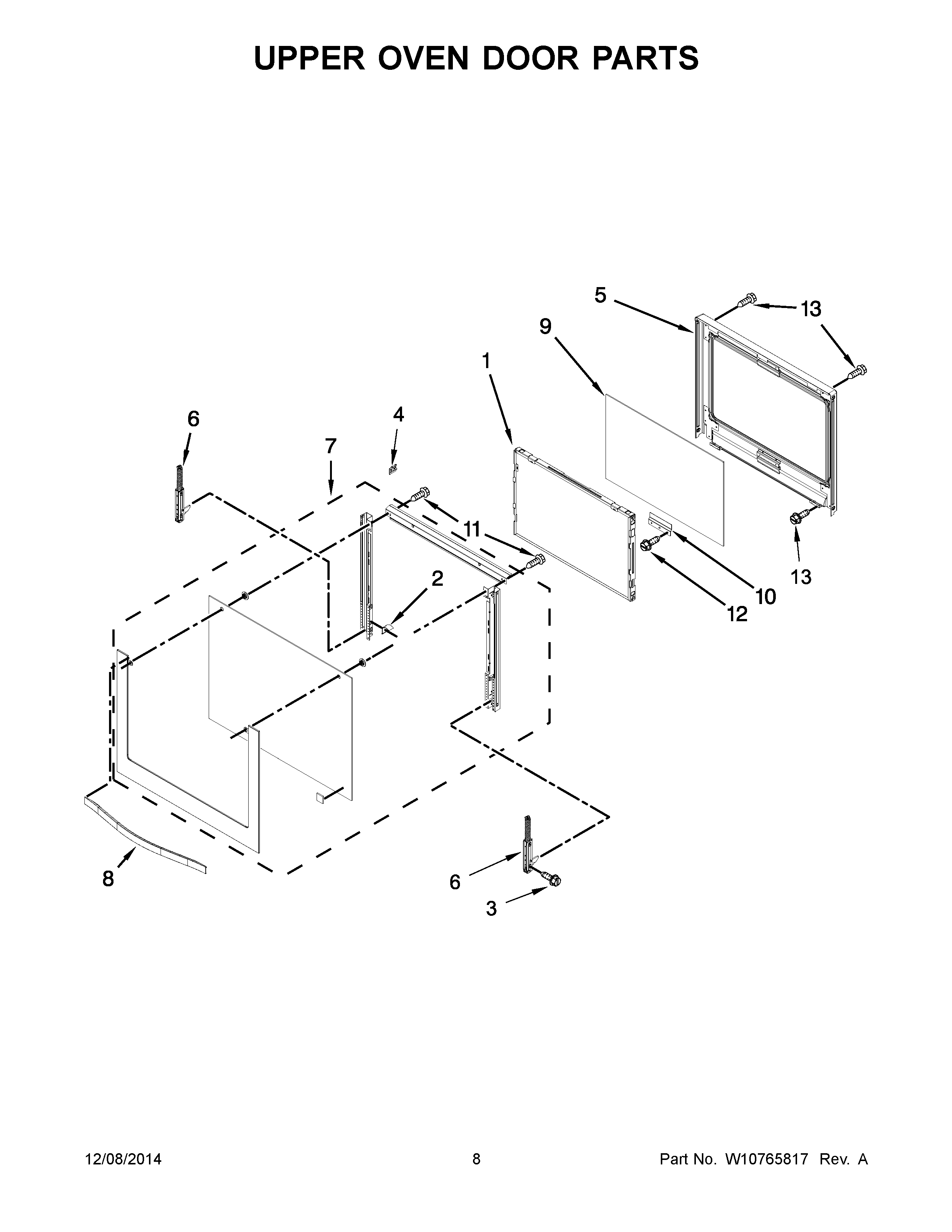

WOD51EC0AS03 05 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347596 Whirlpool Stove Middle Door Glass Panel
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11025615 Whirlpool Glass Bracket
5	WPW10709147 Whirlpool Glass Frame
6	W10825778 Whirlpool Whirlpool Door Hinge
7C	W10577911 Whirlpool Door Glass
7A	ASSEMBLY, DOOR (WHITE)
7	ASSEMBLY, DOOR (BLACK)
7B	ASSEMBLY, DOOR GLASS (BISCUIT)
8A	W10327380 Whirlpool Handle Door
8C	WPW10317136 Whirlpool Door Handle
8B	W10317138 Whirlpool Door Handle
8	W10327379 Whirlpool Door Handle
9	WPW10618107 Whirlpool Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	WP488130 Whirlpool Air Conditioner Nut
12	SCREW
13	SCREW (BLACK)
