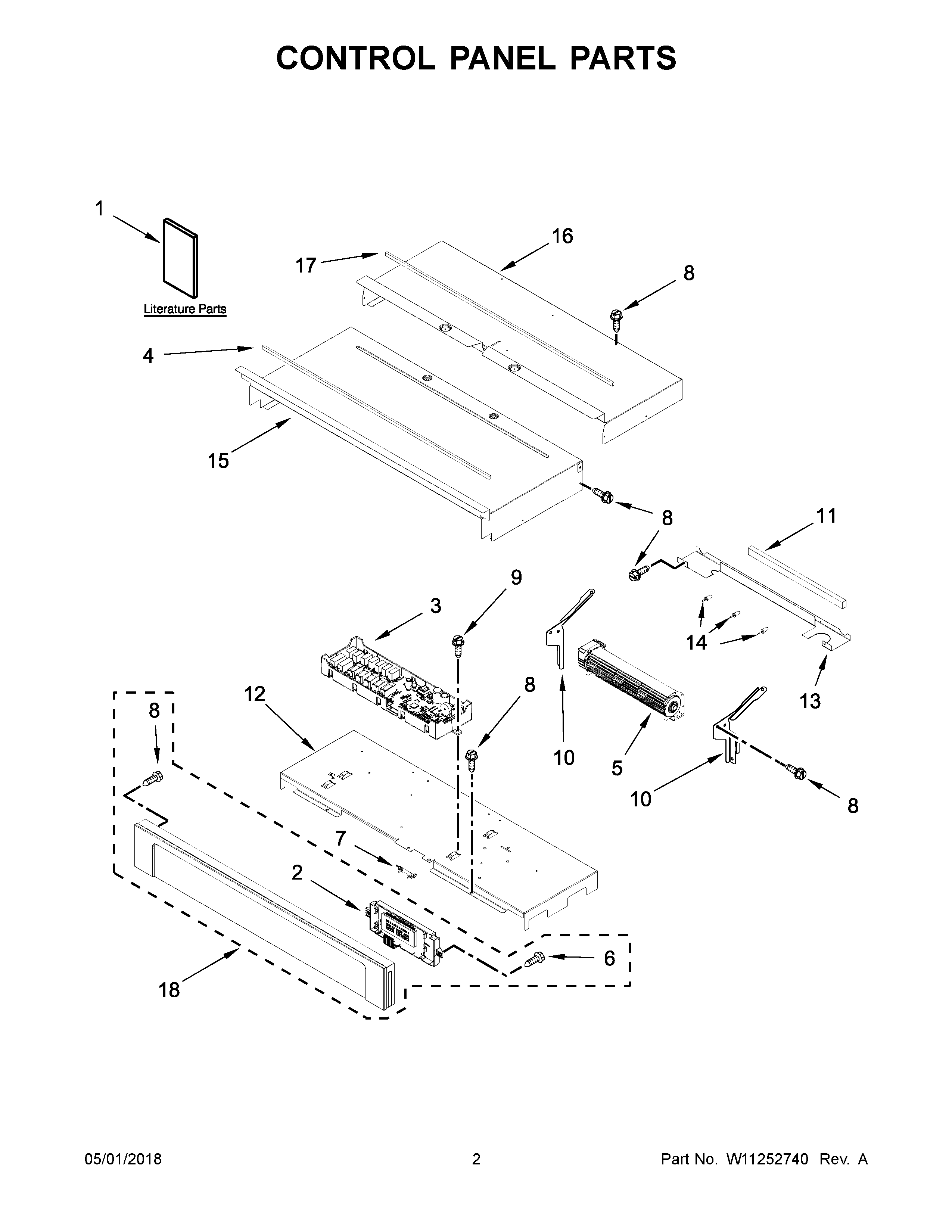

WOD51EC0AS06 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	HARNESS, SIGNAL
NI	W10760039 Whirlpool Hardware
NI	16515 Whirlpool Clip
NI	W11132989 Whirlpool Wire Harness
NI	STRAP, LEAD GROUND
NI	W10655464 Whirlpool Bracket
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11157775 Whirlpool Wire Harness
NI	W11136112 Whirlpool Wire Harness
NI	W11177679 Whirlpool Wire Harness
1B	SHEET, TECH
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
2	WPW10752316-includeCORE Whirlpool WPW10752316 Washer Electronic Control Board + Core
3	W11035600-includeCORE Whirlpool W11035600 Refrigerator Electronic Control Board + Core
4	GASKET, RUBBER
5	W11245567 Whirlpool Blower Assembly
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	W10347650 Whirlpool Mounting Bracket
13	W10655465 Whirlpool Mounting Bracket
14	W10351295 Whirlpool Bumper Assembly
15	W10318192 Whirlpool Cabinet Top
16	W10904156 Whirlpool Cabinet Top
17	W10728475 Whirlpool Foam Seal
18	W10864155 Whirlpool Control Panel
18A	W10864156 Whirlpool Control Panel
18B	W10864157 Whirlpool Control Panel
