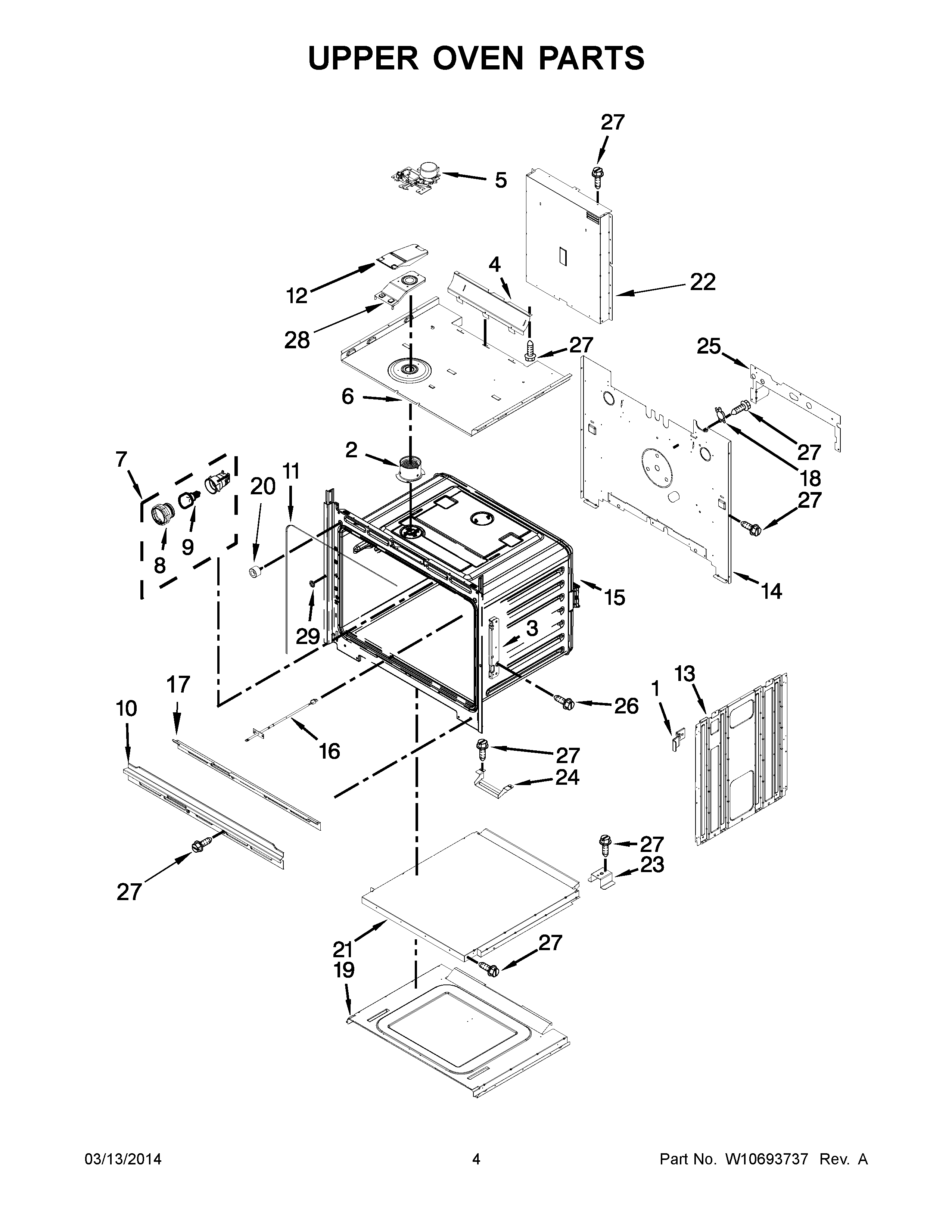

WOD51EC0AT02 03 – UPPER OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
NI	W11688731 Whirlpool Insulation
1	W10347649 Whirlpool Spacer
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W10904163 Whirlpool Vent Deflector
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	WPW10734063 Whirlpool Indicator Light
8	WPW10412722 Whirlpool Light Lens
9	WPW10412711 Whirlpool Light Bulb
10	VENT, CENTER 30``
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10282990 Whirlpool Rear Cover
16	PROBE, SENSOR
17	VENT, TOP 30``
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	WPW10351278 Whirlpool Bumper
21	WPW10283008 Whirlpool Access Cover
22	W10318196 Whirlpool BA Chassis
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	BRACKET, U-SHAPE
26	WPW10254050 Whirlpool Screw
27	SCREW
28	W10616809 Whirlpool Vent Tube
29	W10759525 Whirlpool Grommet
