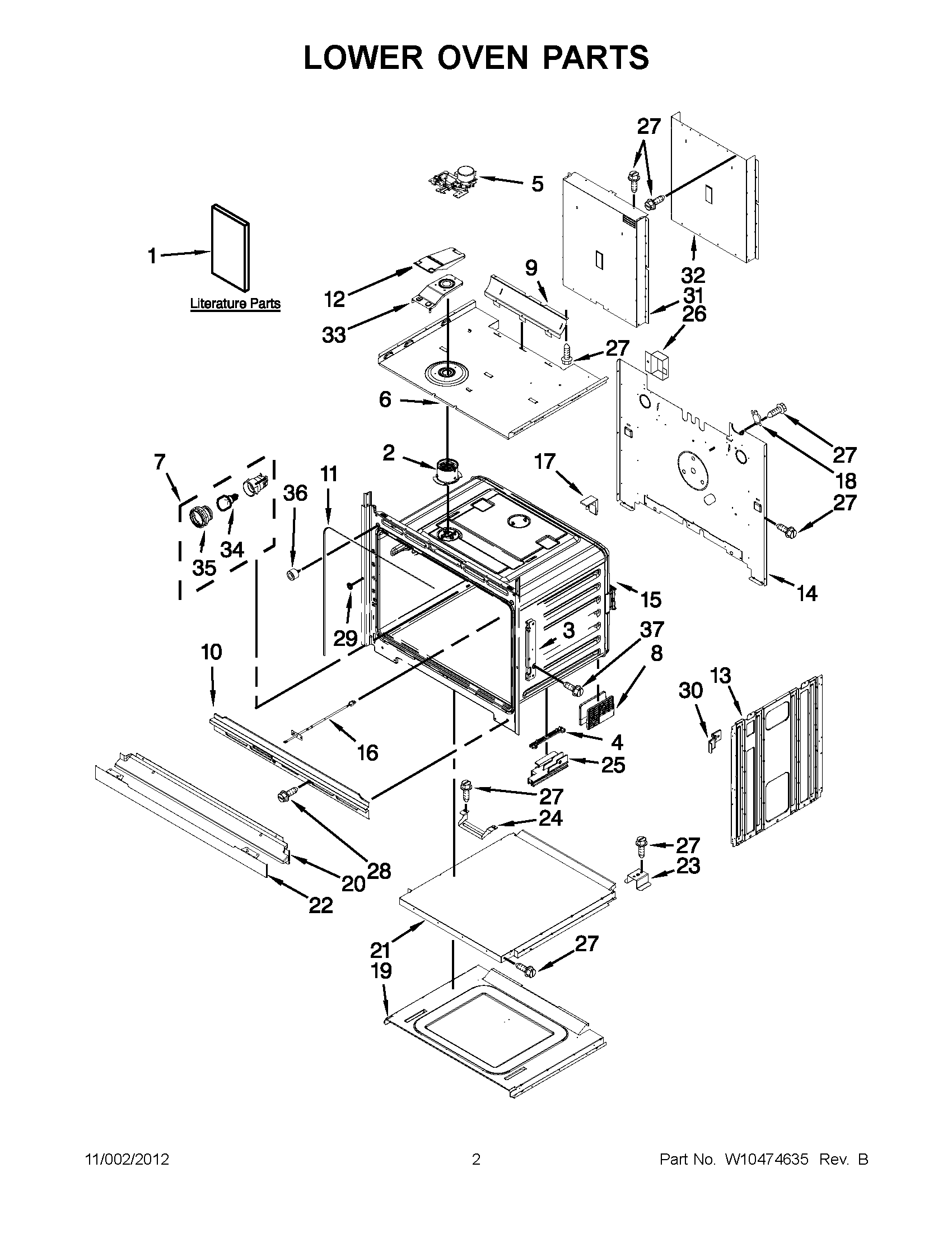

WOD51EC0AW00 01 – LOWER OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684789 Whirlpool Insulation
NI	W11688731 Whirlpool Insulation
1	USE & CARE GUIDE
1	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	INSTRUCTIONS, INSTALLATION
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	W10282980 Whirlpool Top Cabinet
7	WPW10734063 Whirlpool Indicator Light
8	W10821321 Whirlpool Leveling Foot
9	W10351258 Whirlpool Bracket
10	VENT, CENTER 30“
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10282990 Whirlpool Rear Cover
16	PROBE, SENSOR
17	WPW10392683 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	WPW10327373 Whirlpool Oven Vent
20	WPW10351279 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10351236 Whirlpool Trim
22	WPW10327377 Whirlpool Trim Kit
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	FOOT, FRONT (LEFT)
25	W10848812 Whirlpool Level Foot
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WP4450038 Whirlpool Screw
29	W10759525 Whirlpool Grommet
30	W10347649 Whirlpool Spacer
31	W10318196 Whirlpool BA Chassis
32	DUCT, CHASSIS BACK (LOWER)
33	W10616809 Whirlpool Vent Tube
34	WPW10412711 Whirlpool Light Bulb
35	WPW10412722 Whirlpool Light Lens
36	WPW10351278 Whirlpool Bumper
37	WPW10254050 Whirlpool Screw
