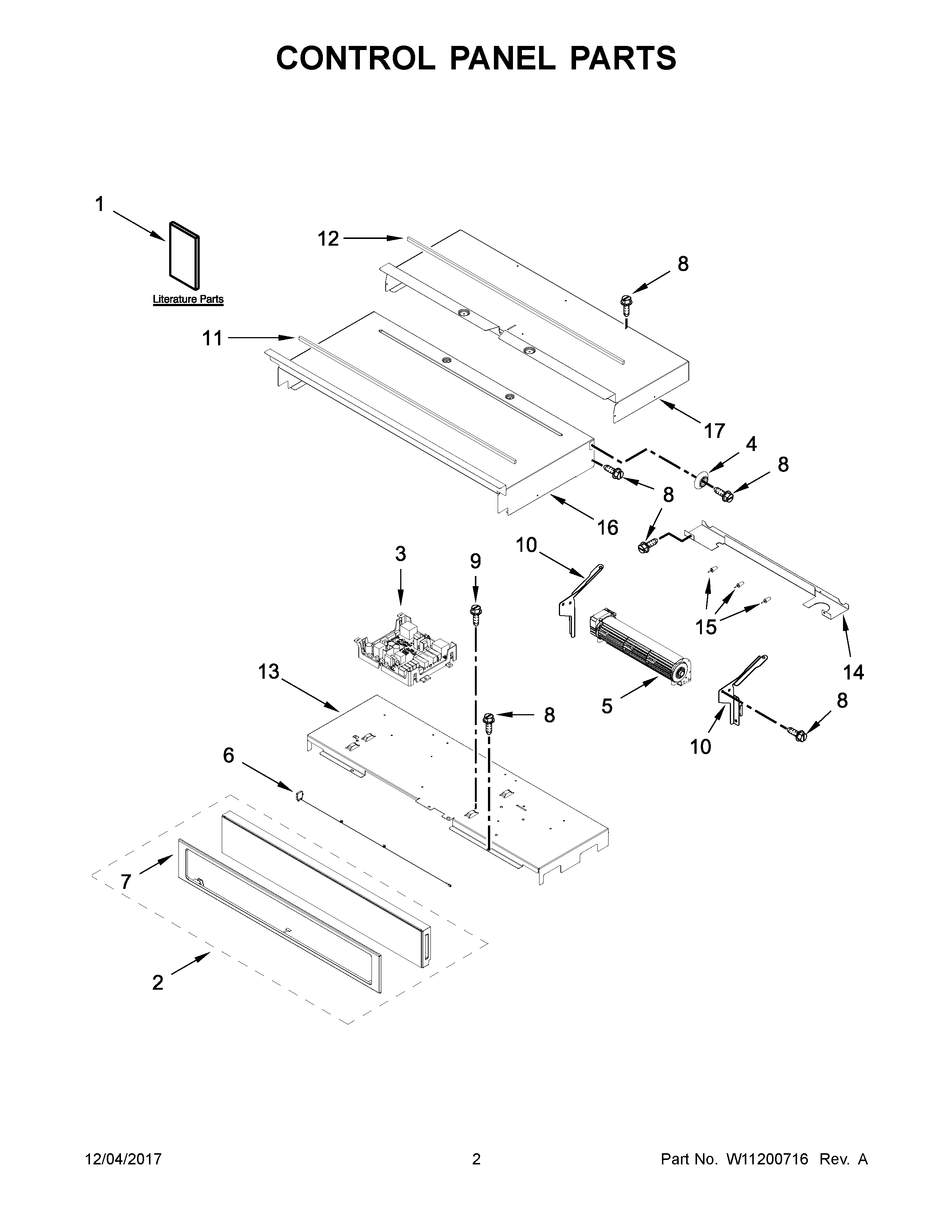

WOD51EC0HB00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11177679 Whirlpool Wire Harness
NI	W11132989 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11233570 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	HARNESS, MAIN
NI	W11699910 Whirlpool Wire Harness
NI	W10655464 Whirlpool Bracket
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	CABINET (NOT A SERVICEABLE PART)
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1	GUIDE, USE & CARE
1D	DIAGRAM, WIRING
1B	GUIDE, INTERNET CONNECTIVITY
2	W11297707 Whirlpool Console + Core
2A	W11297708 Whirlpool Console + Core
2B	W11297709 Whirlpool Console + Core
3A	W11261169-includeCORE Whirlpool W11261169 Refrigerator Electronic Control Board + Core
3	W11261167 Whirlpool Electronic Control Board + Core
4	W10618105 Whirlpool Spacer
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7A	W11109371 Whirlpool Skin Panel
7	SKIN, CONTROL PANEL (BLACK)
7B	W11113207 Whirlpool Skin Panel
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	WPW10657548 Whirlpool Foam Seal
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318192 Whirlpool Cabinet Top
17	W10904156 Whirlpool Cabinet Top
