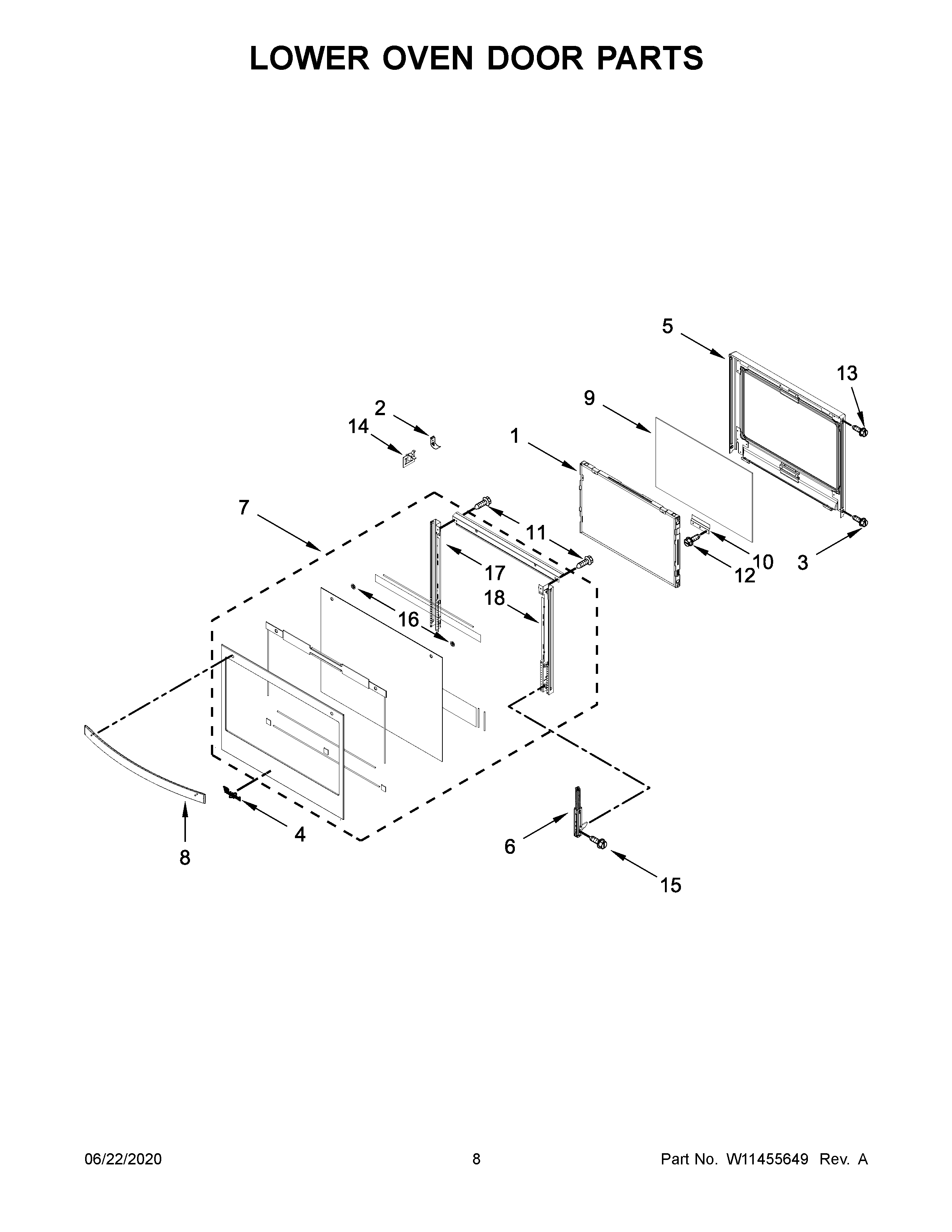

WOD51EC0HS02 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	W11455086 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10709147 Whirlpool Glass Frame
6	W11642291 Whirlpool Door Hinge
7A	W11455429 Whirlpool Door Glass
7	W11455427 Whirlpool Door Glass
7B	W11455430 Whirlpool Door Glass
8	W11110491 Whirlpool Door Handle
8A	W11110492 Whirlpool Door Handle
8B	W11110499 Whirlpool Stove Door Handle
9	WPW10618107 Whirlpool Door Glass Assembly
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	W11025615 Whirlpool Glass Bracket
15	WP3196183 Whirlpool Screw
16	W11676355 Whirlpool Washer
17	W11355410 Whirlpool Support Bracket Assembly
18	W11355411 Whirlpool Support Bracket
