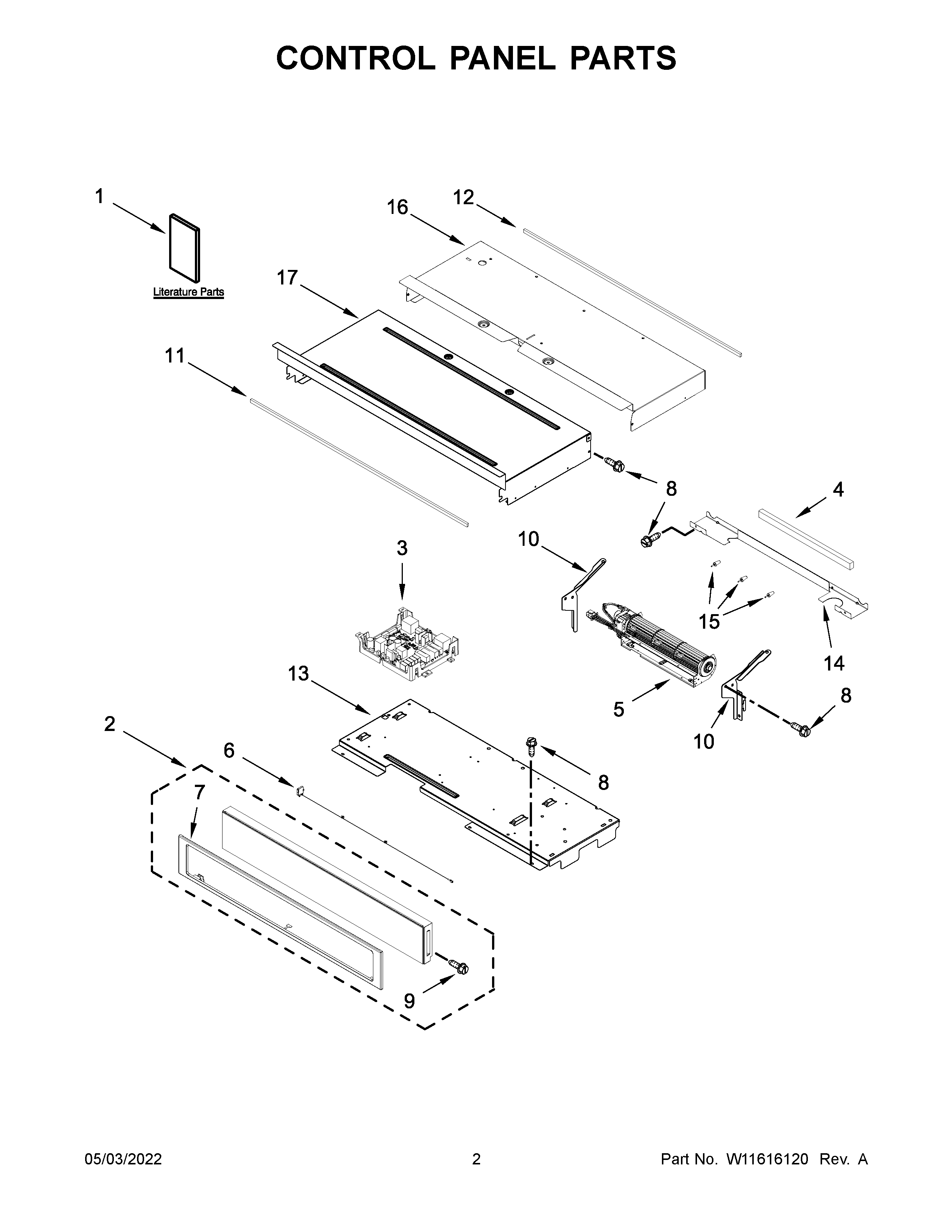

WOD51EC0HW20 02 – CONTROL PANEL PARTS
Written by
in
WOD51EC0HW20 02 – CONTROL PANEL PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10487999 Whirlpool Clip
NI
4450800 Whirlpool Oven Screw
NI
4448664 Whirlpool Oven Mounting Bracket
NI
W11699910 Whirlpool Wire Harness
NI
W11233570 Whirlpool Wire Harness
NI
W11245677 Whirlpool Wire Harness
NI
W11727826 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
W11245673 Whirlpool Wire Harness
NI
W11602626 Whirlpool Oven Microwave Hardware
NI
W10655464 Whirlpool Bracket
1B
TECH SHEET
1
OWNER'S MANUAL
1A
QUICK START GUIDE
2B
W11600355 Whirlpool Control Panel
2
W11600354 Whirlpool Control Panel
2A
W11600356 Whirlpool Control Panel
3A
W11261169-includeCORE Whirlpool W11261169 Refrigerator Electronic Control Board + Core
3
W11261167 Whirlpool Electronic Control Board + Core
4
W10491987 Whirlpool Foam Seal
5
BLOWER
6
W11537624 Whirlpool Antenna Assembly
7
SKIN, CONTROL PANEL (BLACK)
7B
W11113207 Whirlpool Skin Panel
7A
W11109371 Whirlpool Skin Panel
8
SCREW
9
SCREW (BLACK)
10A
W10655462 Whirlpool Mounting Bracket
10
W10655463 Whirlpool Bracket Mounting
11
GASKET, RUBBER
12
W10728475 Whirlpool Foam Seal
13
TRAY, ELECTRONIC
14
DIVIDER, CHASSIS BACK
15
W10351295 Whirlpool Bumper Assembly
16
COVER, 30 IN CHASSIS TOP BACK
17
COVER, 30 IN CHASSIS TOP FRONT
←
