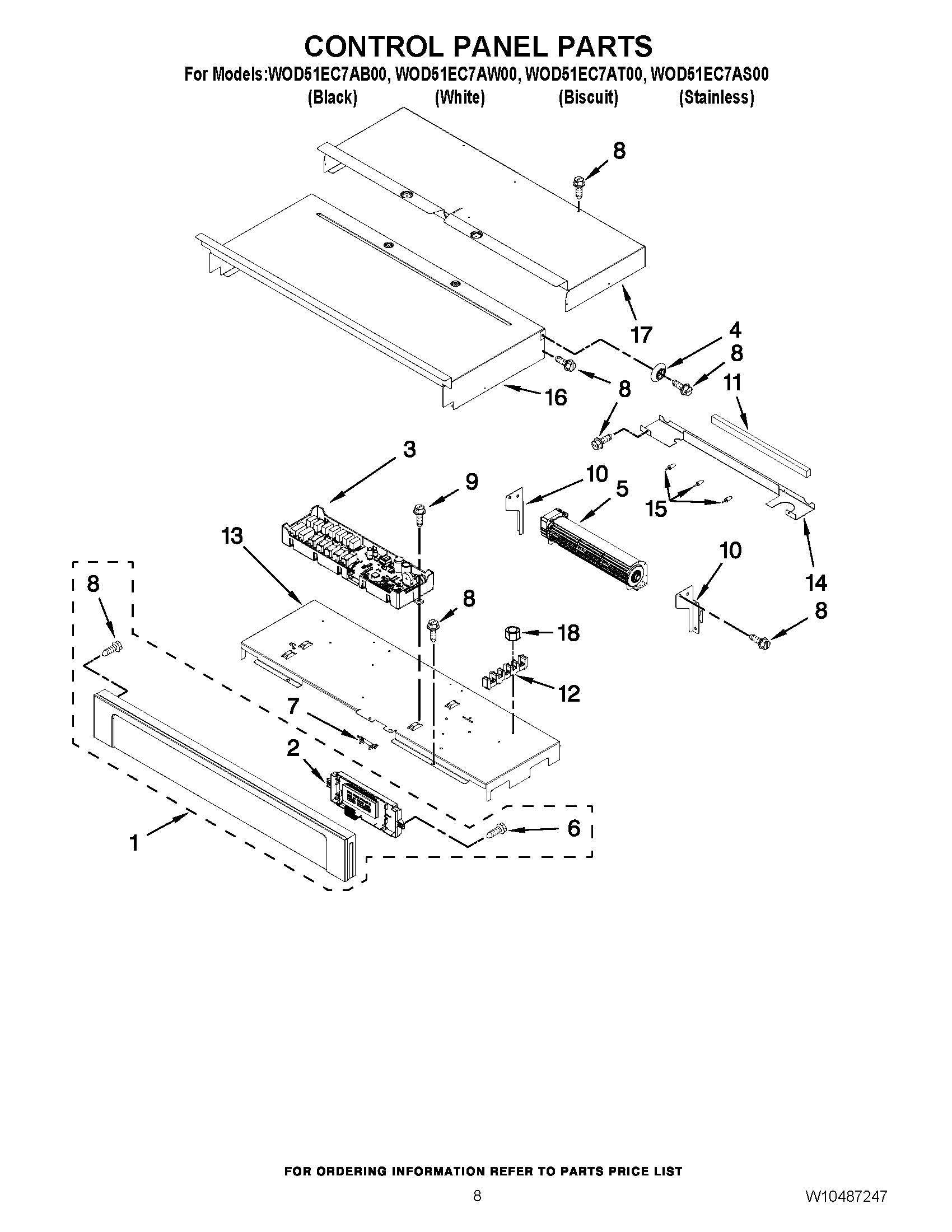

WOD51EC7AB00 06 – CONTROL PANEL PARTS

WOD51EC7AB00 06 – CONTROL PANEL PARTS

Written by

in

WOD51EC7AB00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BISCUIT)
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
1ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
1W10861652 Whirlpool Control Panel
2WPW10532438 Whirlpool Electronic Control Board + Core
3W10550509 Whirlpool Blower Assembly
4W10363824 Whirlpool Spacer
5BLOWER (LOWER)
6SCREW
7WPW10545291 Whirlpool Range Thermal Fuse
8SCREW
9SCREW
10BRACKET, BLOWER LEFT
10W10283078 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10283005 Whirlpool Mounting Bracket
14WPW10318191 Whirlpool Mounting Bracket
15W10351295 Whirlpool Bumper Assembly
16W10318193 Whirlpool Cabinet Top
17W10318195 Whirlpool Cabinet Top
18Nut
