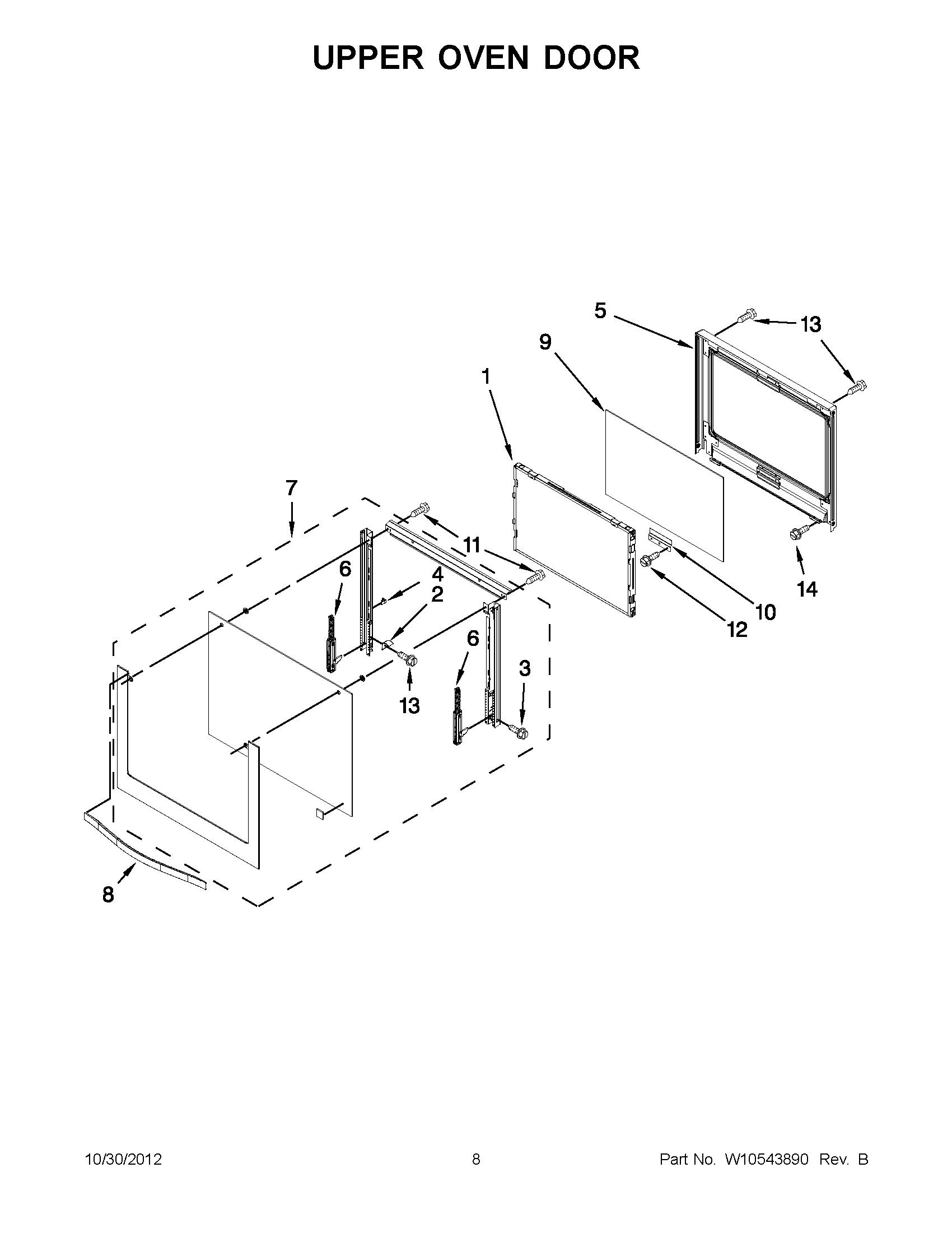

WOD51EC7AB01 04 – UPPER OVEN DOOR

WOD51EC7AB01 04 – UPPER OVEN DOOR

Written by

in

WOD51EC7AB01 04 – UPPER OVEN DOOR

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4WPW10392683 Whirlpool Bumper
5WPW10320793 Whirlpool Glass Frame
6HINGE, DOOR
7ASSEMBLY, DOOR GLASS (STAINLESS)
7W10583268 Whirlpool Door Glass
7ASSEMBLY, DOOR GLASS (BLACK)
8W10344485 Whirlpool Door Handle
8W10344486 Whirlpool Door Handle
8WPW10317140 Whirlpool Door Handle
9WPW10284902 Whirlpool Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11WP488130 Whirlpool Air Conditioner Nut
12SCREW
13SCREW
14SCREW (BLACK)
