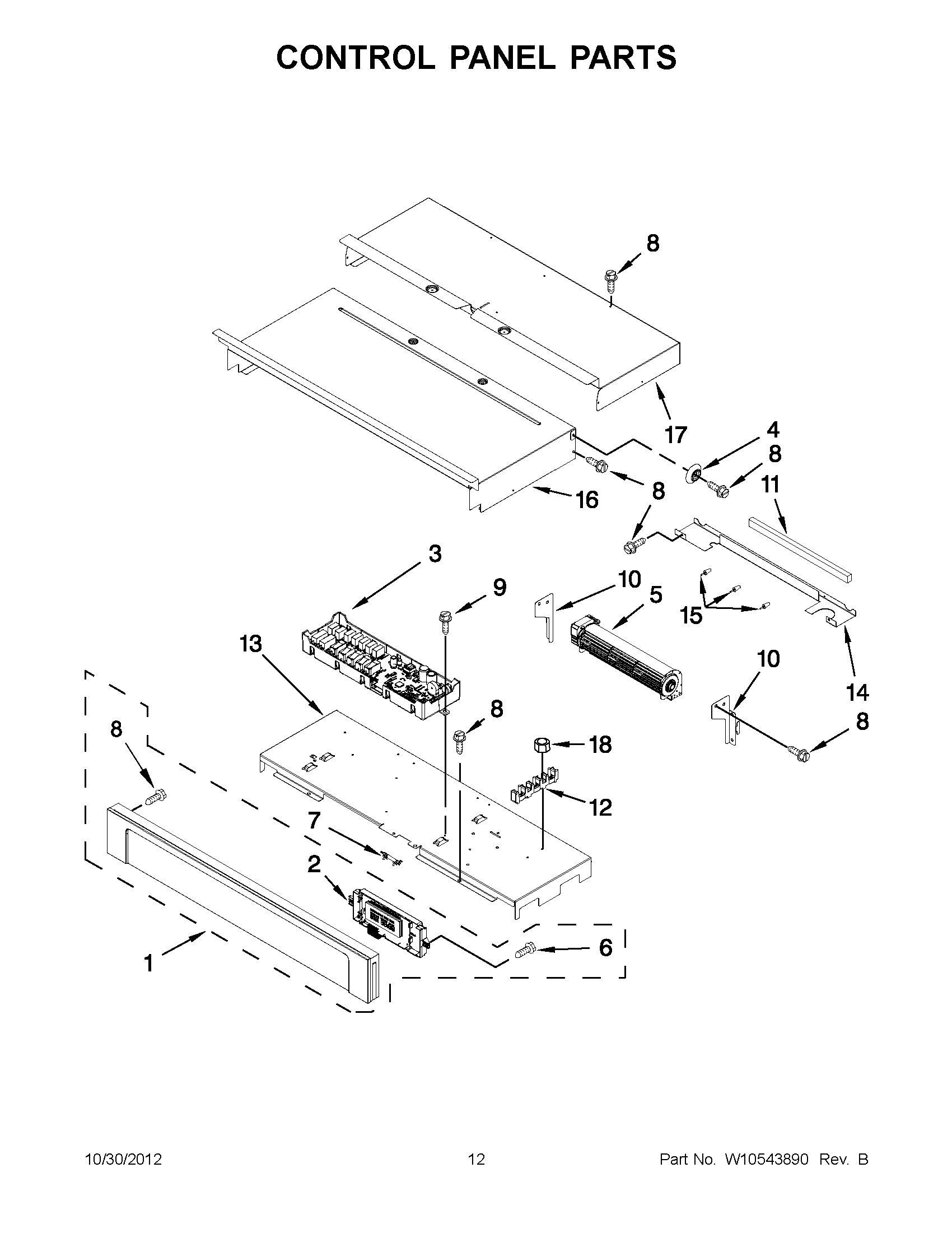

WOD51EC7AB01 06 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
1	W10861652 Whirlpool Control Panel
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	W10803217 Whirlpool Electronic Control Board + Core
4	W10363824 Whirlpool Spacer
5	WPW10260254 Whirlpool Blower
5	BLOWER (LOWER)
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	W10283078 Whirlpool Mounting Bracket
10	BRACKET, BLOWER LEFT
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	W10283005 Whirlpool Mounting Bracket
14	W10509164 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
17	W10318195 Whirlpool Cabinet Top
18	Nut
