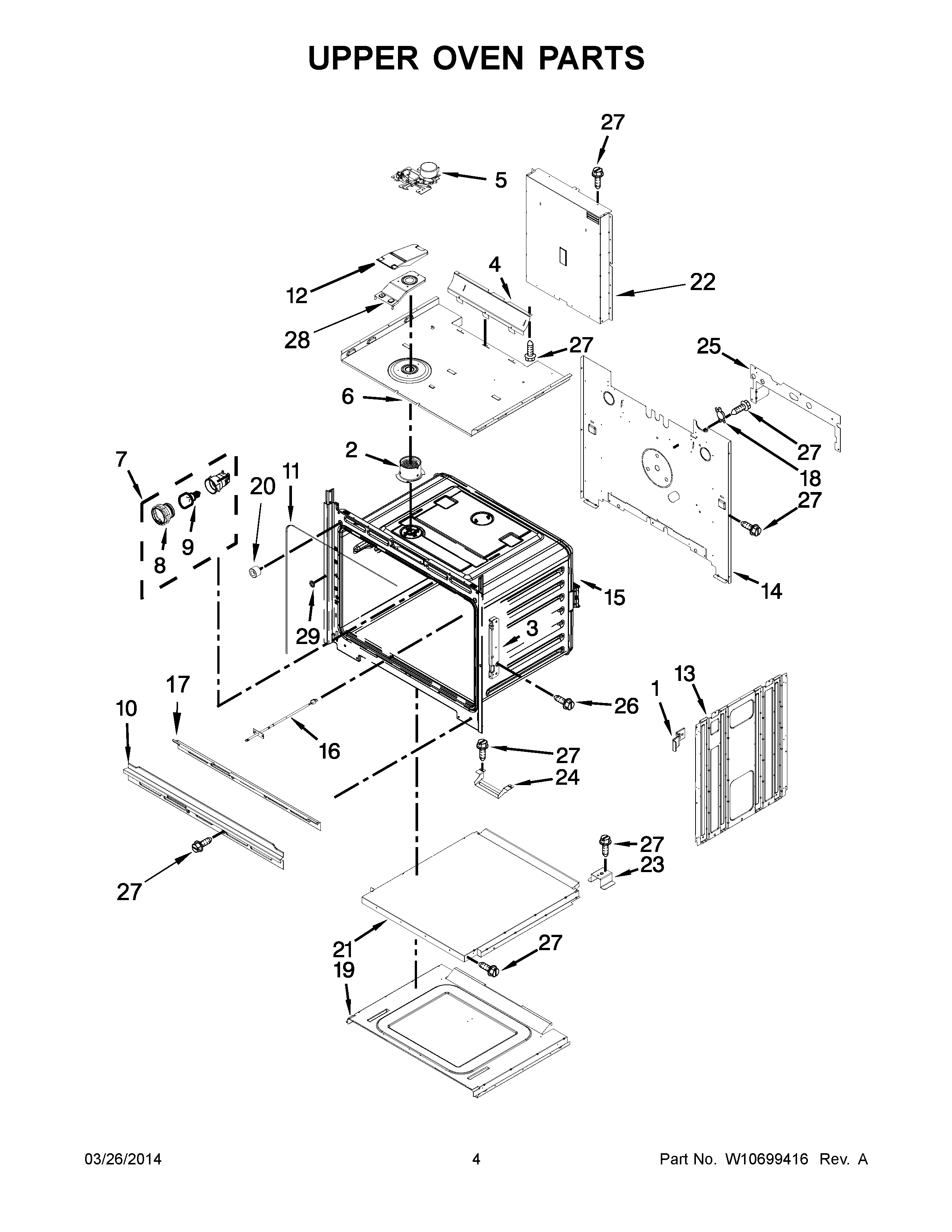

WOD51EC7AB02 03 – UPPER OVEN PARTS

WOD51EC7AB02 03 – UPPER OVEN PARTS

Written by

in

WOD51EC7AB02 03 – UPPER OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11688333 Whirlpool Insulation
NIW10520716 Whirlpool Insulation
1W10347649 Whirlpool Spacer
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W10904163 Whirlpool Vent Deflector
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
7WPW10734063 Whirlpool Indicator Light
8WPW10412722 Whirlpool Light Lens
9WPW10412711 Whirlpool Light Bulb
10W10283041 Whirlpool Exhaust Vent
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10813734 Whirlpool Rear Cover
16PROBE, SENSOR
17W10283037 Whirlpool Exhaust Vent
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20WPW10351278 Whirlpool Bumper
21WPW10283008 Whirlpool Access Cover
22W10318196 Whirlpool BA Chassis
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25BRACKET, U-SHAPE
26WPW10254050 Whirlpool Screw
27SCREW
28W10616809 Whirlpool Vent Tube
29W10759525 Whirlpool Grommet
