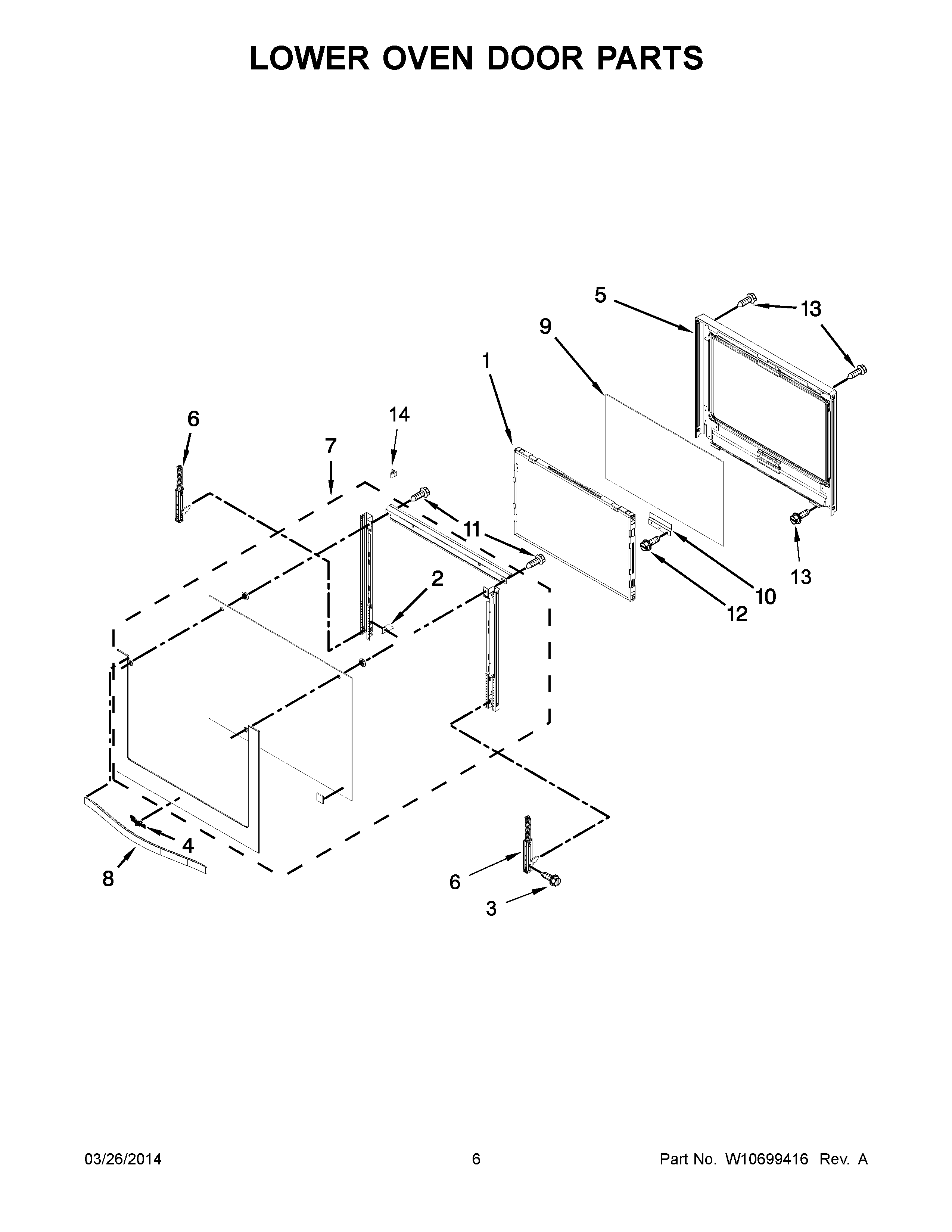

WOD51EC7AB02 04 – LOWER OVEN DOOR PARTS

WOD51EC7AB02 04 – LOWER OVEN DOOR PARTS

Written by

in

WOD51EC7AB02 04 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WPW10347597 Whirlpool Door Glass
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10320793 Whirlpool Glass Frame
6HINGE, DOOR
7ASSEMBLY, DOOR GLASS (BLACK)
7ASSEMBLY, DOOR GLASS (STAINLESS)
7W10583268 Whirlpool Door Glass
8W10344485 Whirlpool Door Handle
8W10344486 Whirlpool Door Handle
8WPW10317140 Whirlpool Door Handle
9WPW10284902 Whirlpool Door Glass
10W10853628 Whirlpool Oven Range Glass Bracket
11WP488130 Whirlpool Air Conditioner Nut
12SCREW
13SCREW (BLACK)
14WPW10392683 Whirlpool Bumper
