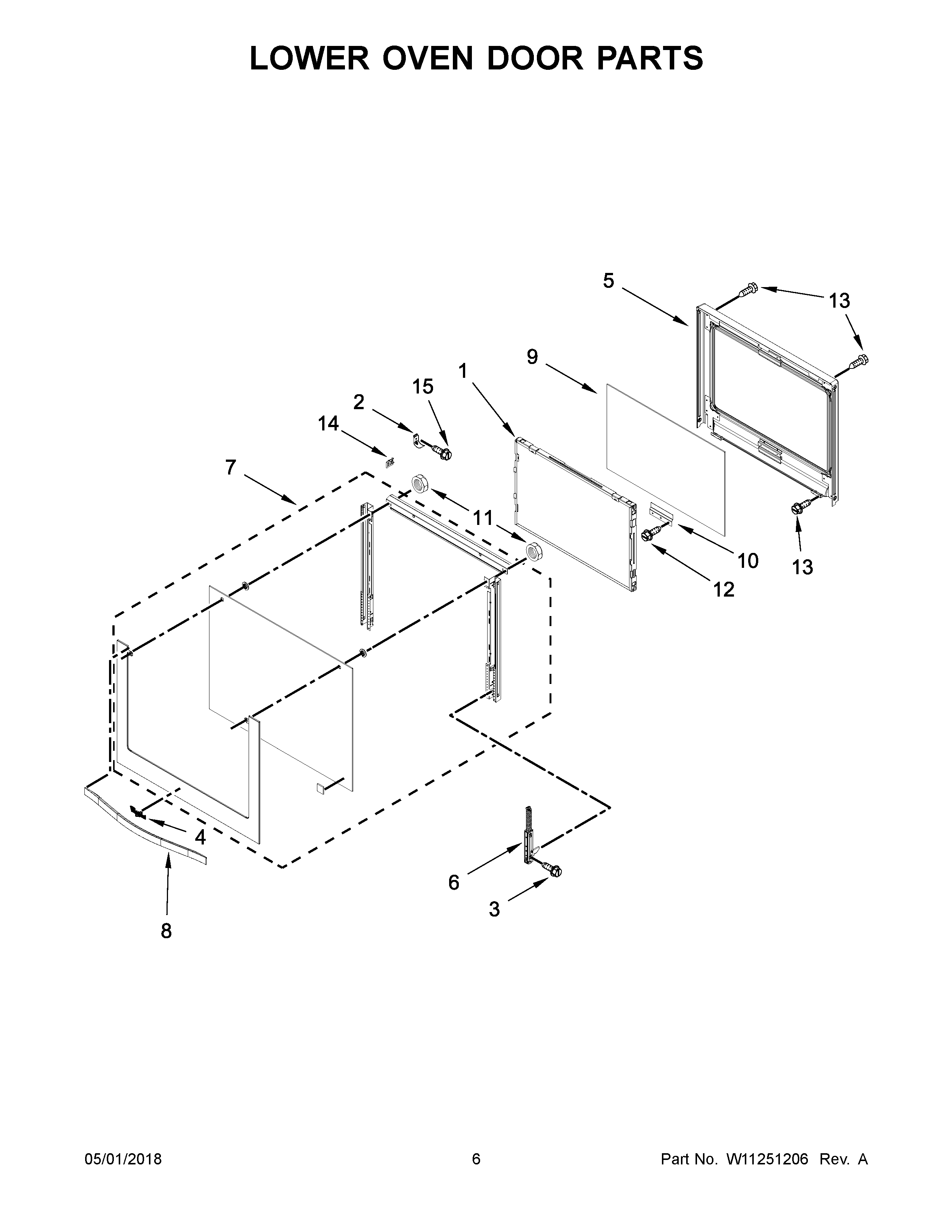

WOD51EC7AB06 04 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11178521 Whirlpool Dishwasher Nameplate
5	WPW10320793 Whirlpool Glass Frame
6	HINGE, DOOR
7B	ASSEMBLY, DOOR GLASS (STAINLESS)
7A	W10583268 Whirlpool Door Glass
7	ASSEMBLY, DOOR GLASS (BLACK)
8	W10344485 Whirlpool Door Handle
8A	W10344486 Whirlpool Door Handle
8B	WPW10317140 Whirlpool Door Handle
9	W10829001 Whirlpool Oven Wall Inner Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	WP488130 Whirlpool Air Conditioner Nut
12	SCREW
13	SCREW (BLACK)
14	W11025615 Whirlpool Glass Bracket
15	SCREW
