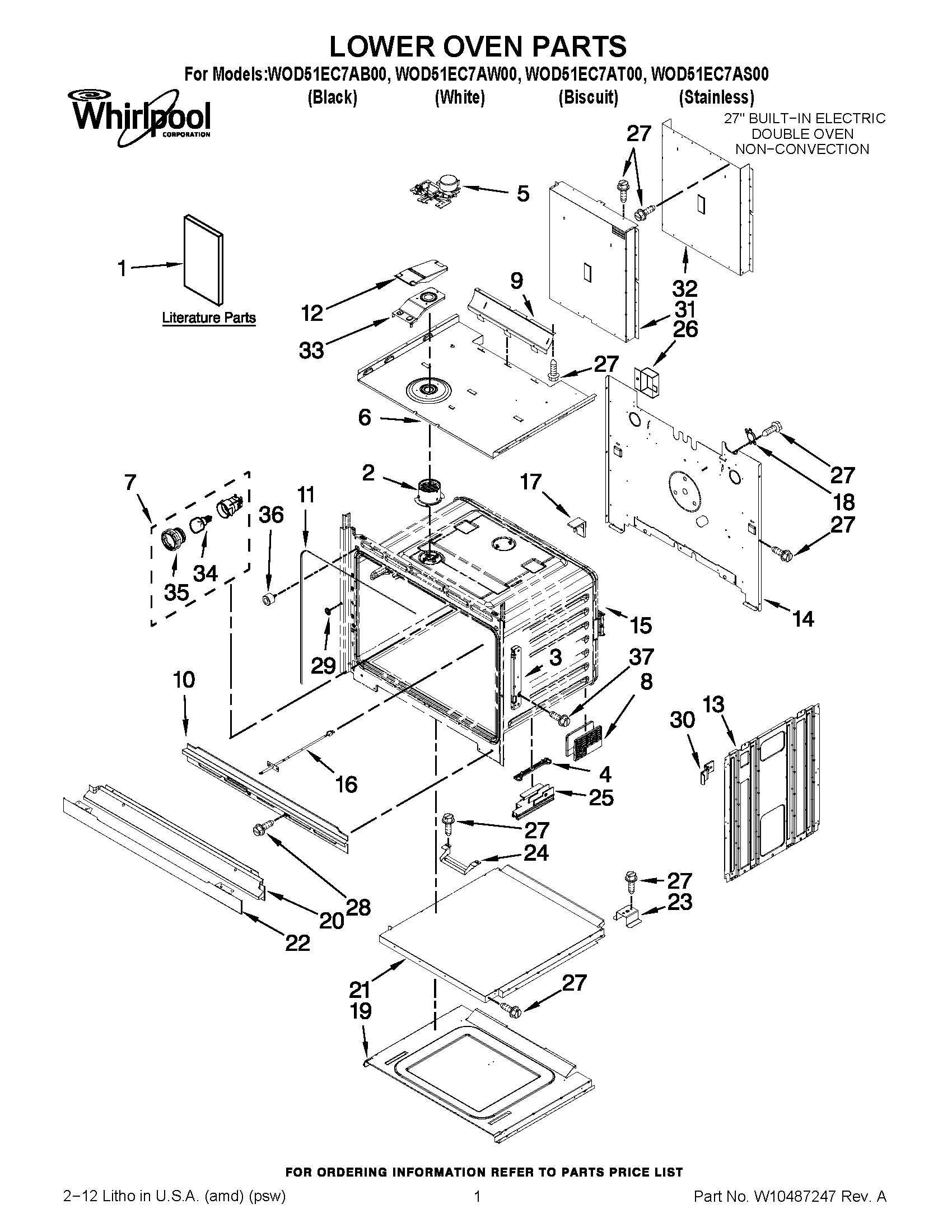

WOD51EC7AS00 01 – LOWER OVEN PARTS

WOD51EC7AS00 01 – LOWER OVEN PARTS

Written by

in

WOD51EC7AS00 01 – LOWER OVEN PARTS

Products

PositionProduct
NIW11688333 Whirlpool Insulation
NIW10282943 Whirlpool Insulation
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1TECH SHEET (FRENCH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET (ENGLISH)
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4WPW10318220 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6CHASSIS, TOP
7WPW10734063 Whirlpool Indicator Light
8W10821321 Whirlpool Leveling Foot
9W10351258 Whirlpool Bracket
10W10283041 Whirlpool Exhaust Vent
11W10856596 Whirlpool Oven Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10282991 Whirlpool Rear Cover
15CABINET (NOT A SERVICEABLE PART)
16PROBE, SENSOR
17WPW10392683 Whirlpool Bumper
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20WPW10351280 Whirlpool Oven Vent
20WPW10327375 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22WPW10327378 Whirlpool Trim
22WPW10351237 Whirlpool Trim
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25W10848812 Whirlpool Level Foot
25FOOT, FRONT (LEFT)
268285593 Whirlpool Oven Wire Cover
27SCREW
28WP4450038 Whirlpool Screw
29W10759525 Whirlpool Grommet
30W10347649 Whirlpool Spacer
31W10318196 Whirlpool BA Chassis
32W10283000 Whirlpool Chassis Assembly
33W10616809 Whirlpool Vent Tube
34WPW10412711 Whirlpool Light Bulb
35WPW10412722 Whirlpool Light Lens
36WPW10351278 Whirlpool Bumper
37WPW10254050 Whirlpool Screw
