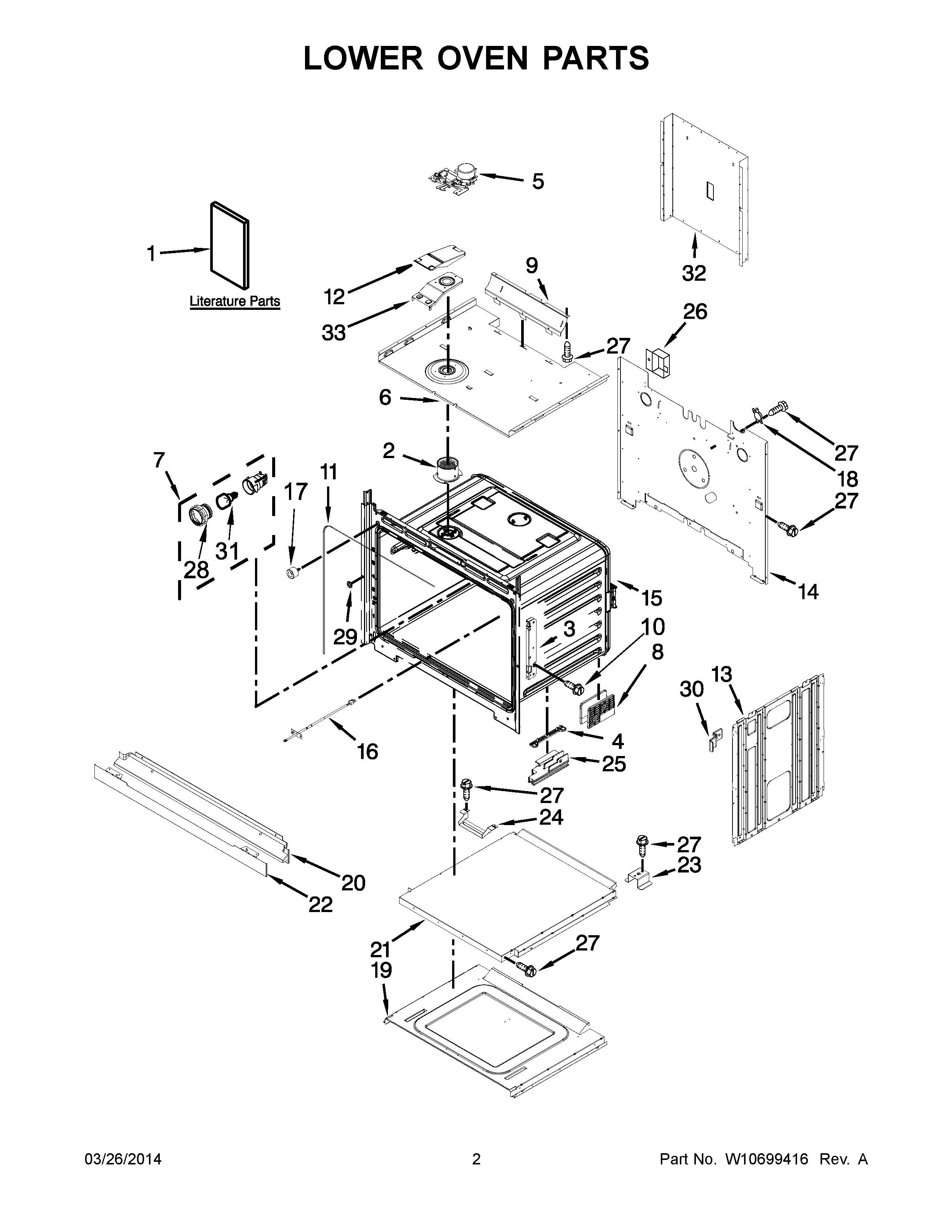

WOD51EC7AS02 02 – LOWER OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
NI	W11688333 Whirlpool Insulation
1	USE & CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10318220 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	W10821321 Whirlpool Leveling Foot
9	W10904163 Whirlpool Vent Deflector
10	WPW10254050 Whirlpool Screw
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10813734 Whirlpool Rear Cover
16	PROBE, SENSOR
17	WPW10351278 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10351280 Whirlpool Oven Vent
20	WPW10327375 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10327378 Whirlpool Trim
22	WPW10351237 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	W10848812 Whirlpool Level Foot
25	FOOT, FRONT (LEFT)
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WPW10412722 Whirlpool Light Lens
29	W10759525 Whirlpool Grommet
30	W10347649 Whirlpool Spacer
31	WPW10412711 Whirlpool Light Bulb
32	DUCT, CHASSIS BACK (LOWER)
33	W10616809 Whirlpool Vent Tube
