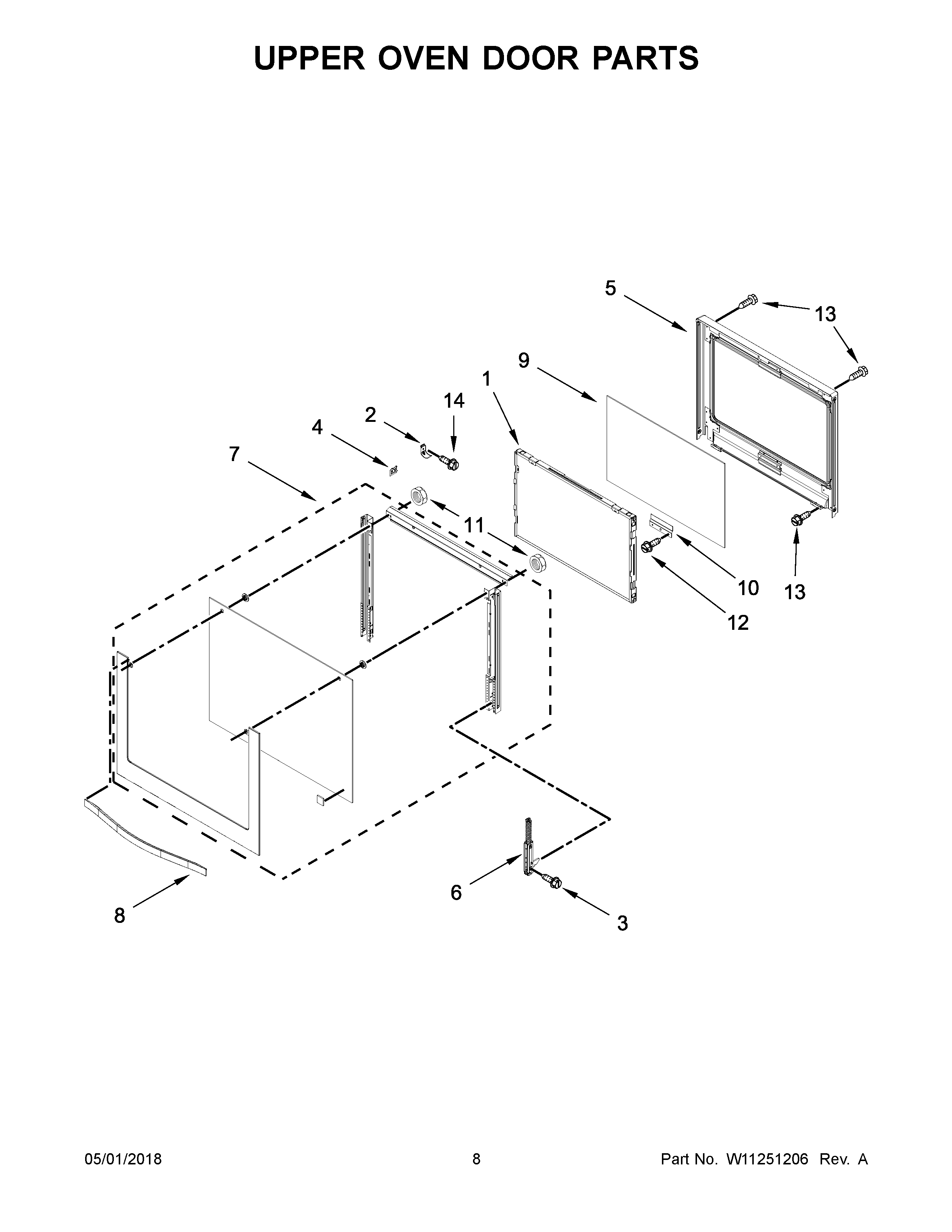

WOD51EC7AS06 05 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	W11025615 Whirlpool Glass Bracket
5	WPW10320793 Whirlpool Glass Frame
6	HINGE, DOOR
7	ASSEMBLY, DOOR GLASS (BLACK)
7B	ASSEMBLY, DOOR GLASS (STAINLESS)
7A	W10583268 Whirlpool Door Glass
8	W10344485 Whirlpool Door Handle
8A	W10344486 Whirlpool Door Handle
8B	WPW10317140 Whirlpool Door Handle
9	W10829001 Whirlpool Oven Wall Inner Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	WP488130 Whirlpool Air Conditioner Nut
12	SCREW
13	SCREW (BLACK)
14	SCREW
