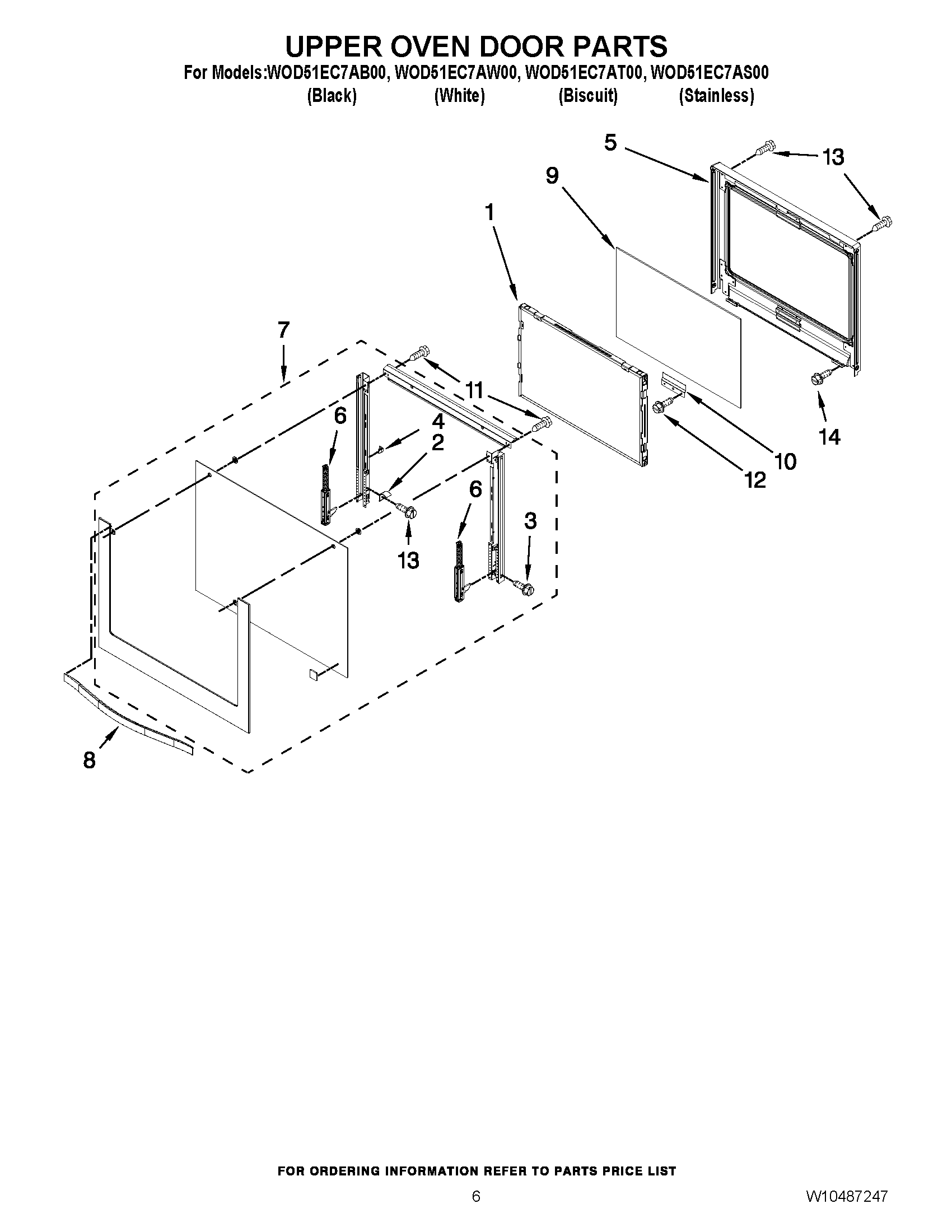

WOD51EC7AT00 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WPW10347597 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	WP3196183 Whirlpool Screw
4	WPW10392683 Whirlpool Bumper
5	WPW10320793 Whirlpool Glass Frame
6	HINGE, DOOR
7	ASSEMBLY, DOOR GLASS (STAINLESS)
7	ASSEMBLY, DOOR GLASS (BLACK)
7	W10583268 Whirlpool Door Glass
7	ASSEMBLY, DOOR GLASS (BISCUIT)
8	W10344486 Whirlpool Door Handle
8	HANDLE, DOOR (BISCUIT)
8	WPW10317140 Whirlpool Door Handle
8	W10344485 Whirlpool Door Handle
9	WPW10284902 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	WP488130 Whirlpool Air Conditioner Nut
12	SCREW
13	SCREW
14	SCREW (BLACK)
