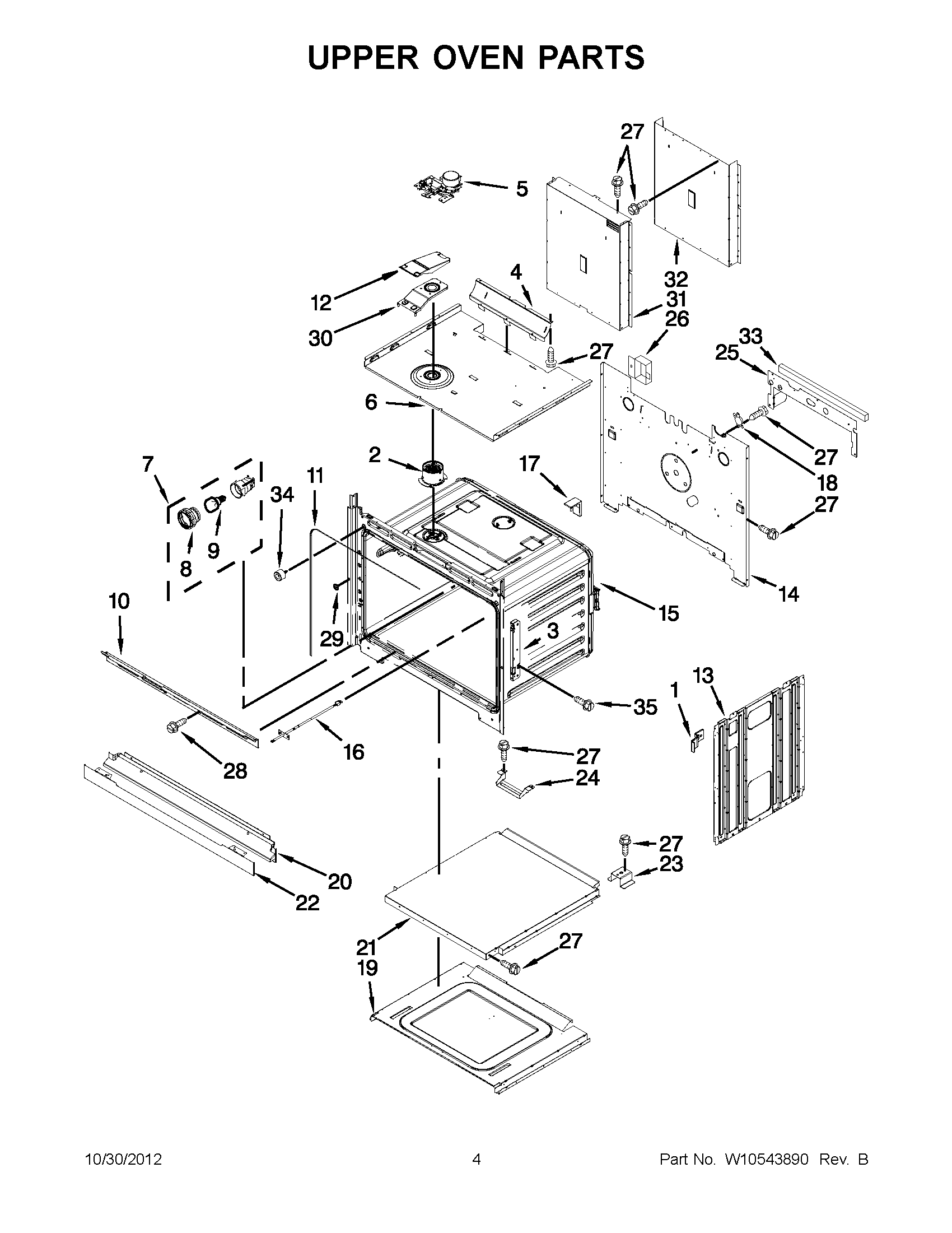

WOD51EC7AW01 02 – UPPER OVEN PARTS

Products

Position	Product
NI	W10520716 Whirlpool Insulation
NI	W11688333 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
1	W10347649 Whirlpool Spacer
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W10351258 Whirlpool Bracket
5	W10883049 Whirlpool Door Latch
6	CHASSIS, TOP
7	WPW10734063 Whirlpool Indicator Light
8	WPW10412722 Whirlpool Light Lens
9	WPW10412711 Whirlpool Light Bulb
10	W10283037 Whirlpool Exhaust Vent
11	W10856596 Whirlpool Oven Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10282991 Whirlpool Rear Cover
16	PROBE, SENSOR
17	WPW10392683 Whirlpool Bumper
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20	WPW10327375 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10327378 Whirlpool Trim
22	WPW10351237 Whirlpool Trim
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	BRACKET, U-SHAPE
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	WP4450038 Whirlpool Screw
29	W10759525 Whirlpool Grommet
30	W10616809 Whirlpool Vent Tube
31	W10318196 Whirlpool BA Chassis
32	DUCT, CHASSIS BACK (LOWER)
33	W10491987 Whirlpool Foam Seal
34	WPW10351278 Whirlpool Bumper
35	WPW10254050 Whirlpool Screw
