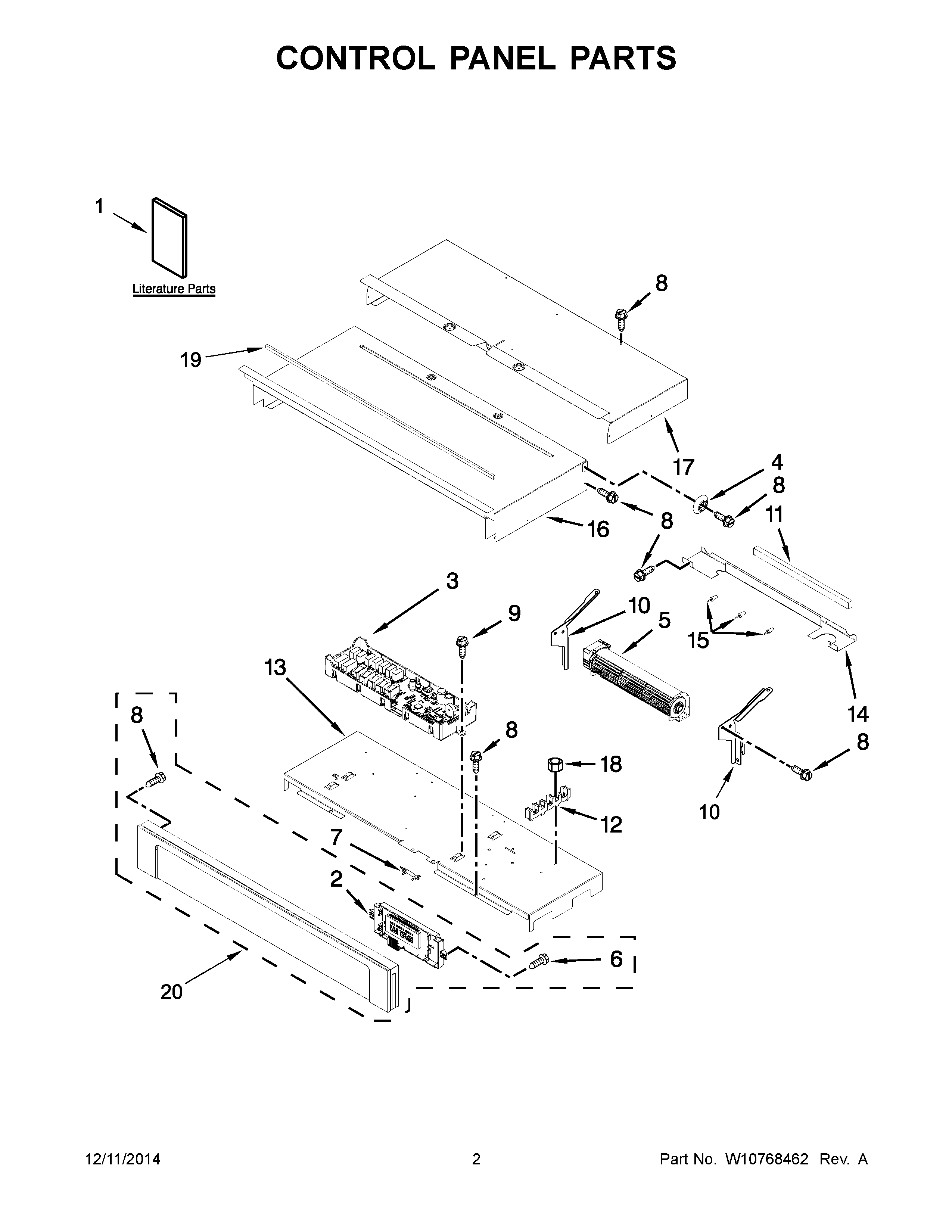

WOD51EC7AW03 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10655464 Whirlpool Bracket
NI	16515 Whirlpool Clip
NI	4452400 Whirlpool Microwave Wire Harness
NI	W11157775 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
NI	4448664 Whirlpool Oven Mounting Bracket
NI	W10573327 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10730964 Whirlpool Wire Harness
NI	W10284931 Whirlpool Wire Harness
NI	W10679413 Whirlpool Wire Harness
1A	INSTRUCTIONS, INSTALLATION
1	USE & CARE GUIDE
1B	SHEET, TECH
2	WPW10532438 Whirlpool Electronic Control Board + Core
3	W10803217 Whirlpool Electronic Control Board + Core
4	W10363824 Whirlpool Spacer
5A	WPW10641253 Whirlpool Blower Motor
5	WPW10661038 Whirlpool Blower
6	SCREW
7	WPW10545291 Whirlpool Range Thermal Fuse
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	W10491987 Whirlpool Foam Seal
12	BLOCK, TERMINAL
13	W10283005 Whirlpool Mounting Bracket
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
17	CHASSIS, COVER TOP BACK 27"
18	Nut
19	W10728475 Whirlpool Foam Seal
20A	W10861652 Whirlpool Control Panel
20B	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
20	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
