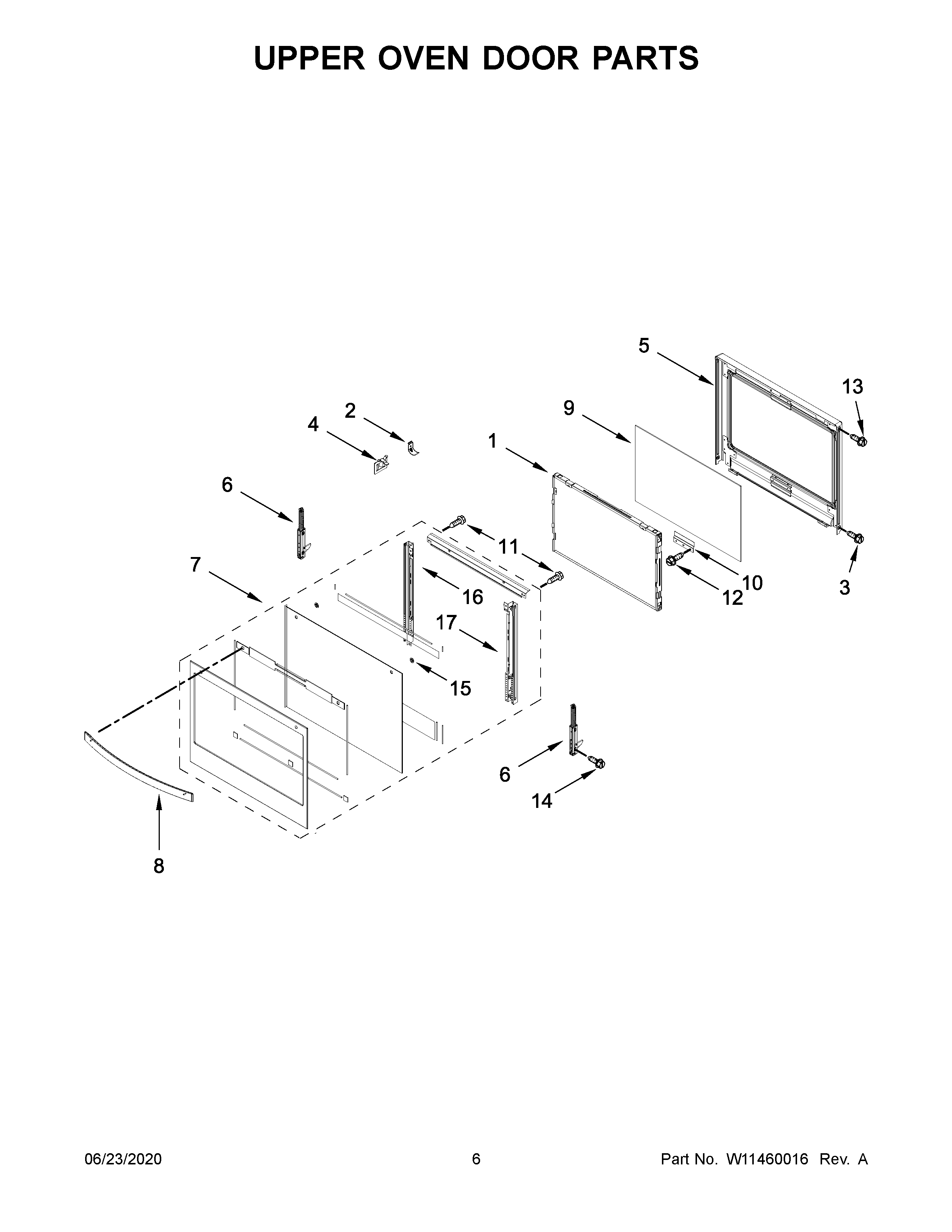

WOD51EC7HB02 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	W11458357 Whirlpool Door Glass
2	W10812024 Whirlpool Glass Bracket
3	SCREW (BLACK)
4	W11025615 Whirlpool Glass Bracket
5	WPW10320793 Whirlpool Glass Frame
6	W11411963 Whirlpool Door Hinge Assembly
7A	W11457684 Whirlpool Door Glass
7	W11457681 Whirlpool Door Glass
7B	W11457689 Whirlpool Door Glass
8B	W11113204 Whirlpool Door Handle
8	W11115278 Whirlpool Door Handle
8A	W11200667 Whirlpool Door Handle
9	W11458359 Whirlpool Door Glass
10	W10853628 Whirlpool Oven Range Glass Bracket
11	W10831019 Whirlpool Stove Door Screw
12	SCREW
13	SCREW
14	WP3196183 Whirlpool Screw
15	W11676355 Whirlpool Washer
16	W11355410 Whirlpool Support Bracket Assembly
17	W11355411 Whirlpool Support Bracket
