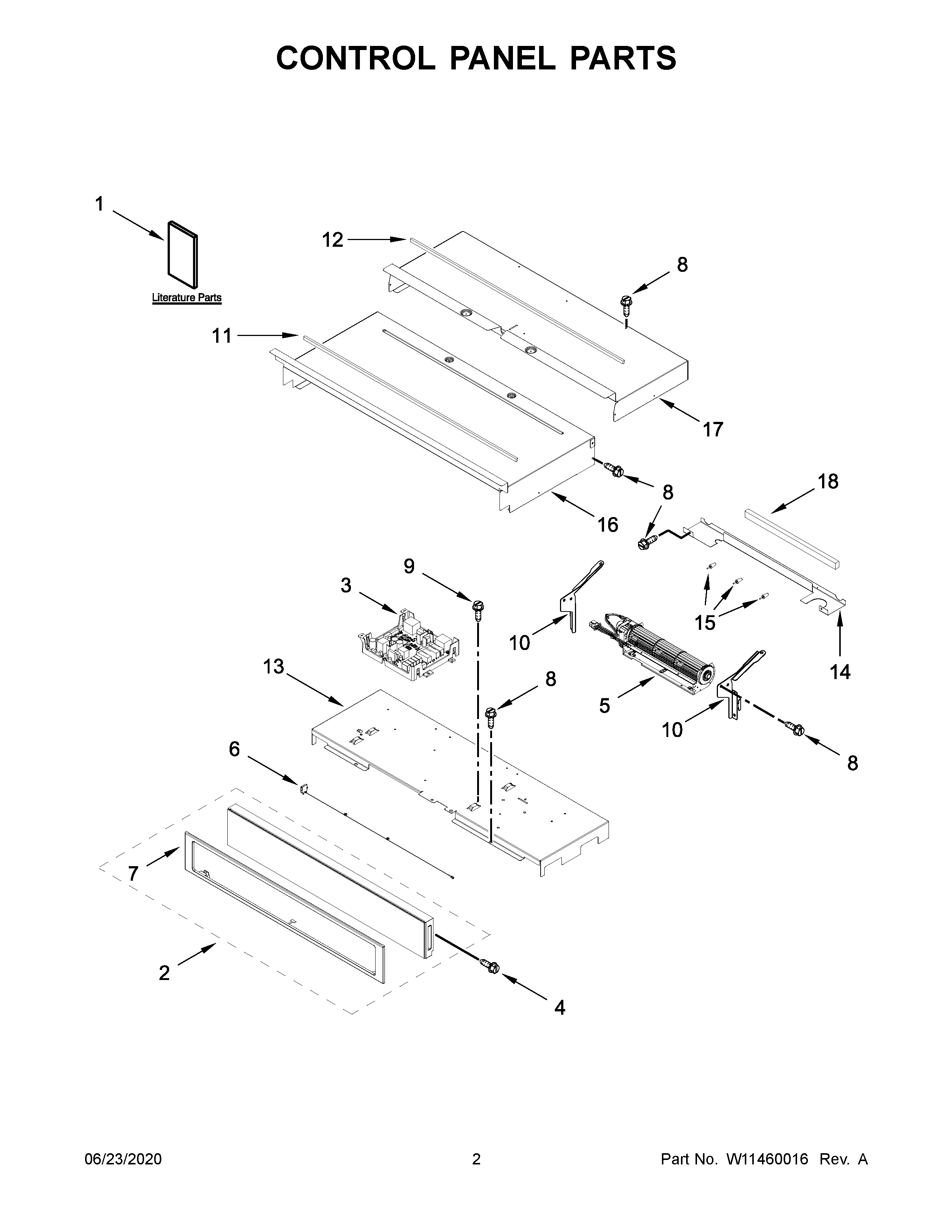

WOD51EC7HS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W10655464 Whirlpool Bracket
NI	W11177679 Whirlpool Wire Harness
NI	W10760039 Whirlpool Hardware
NI	W11225365 Whirlpool Wire Harness
NI	W11233570 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	W11225364 Whirlpool Wire Harness
NI	W11699910 Whirlpool Wire Harness
NI	W10487999 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	W11132989 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	4448664 Whirlpool Oven Mounting Bracket
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
1D	DIAGRAM, WIRING
1B	GUIDE, INTERNET CONNECTIVITY
1C	SHEET, TECH
2	W11297710 Whirlpool Console + Core
2B	W11297714 Whirlpool Console + Core
2A	W11297713 Whirlpool Console + Core
3	W11261167 Whirlpool Electronic Control Board + Core
3A	W11261169-includeCORE Whirlpool W11261169 Refrigerator Electronic Control Board + Core
4	WPY706189 Whirlpool Stove Screw
5	W11248652 Whirlpool Blower
6	W11537624 Whirlpool Antenna Assembly
7	W11115276 Whirlpool Skin Panel
7A	SKIN, CONTROL PANEL (WHITE)
7B	W11112611 Whirlpool Control Panel
8	SCREW
9	SCREW
10	W10655463 Whirlpool Bracket Mounting
10A	W10655462 Whirlpool Mounting Bracket
11	GASKET, RUBBER (652MM)
12	W10728475 Whirlpool Foam Seal
13	TRAY, ELECTRONIC
14	W10655465 Whirlpool Mounting Bracket
15	W10351295 Whirlpool Bumper Assembly
16	W10318193 Whirlpool Cabinet Top
17	CHASSIS, COVER TOP BACK 27"
18	W10491987 Whirlpool Foam Seal
