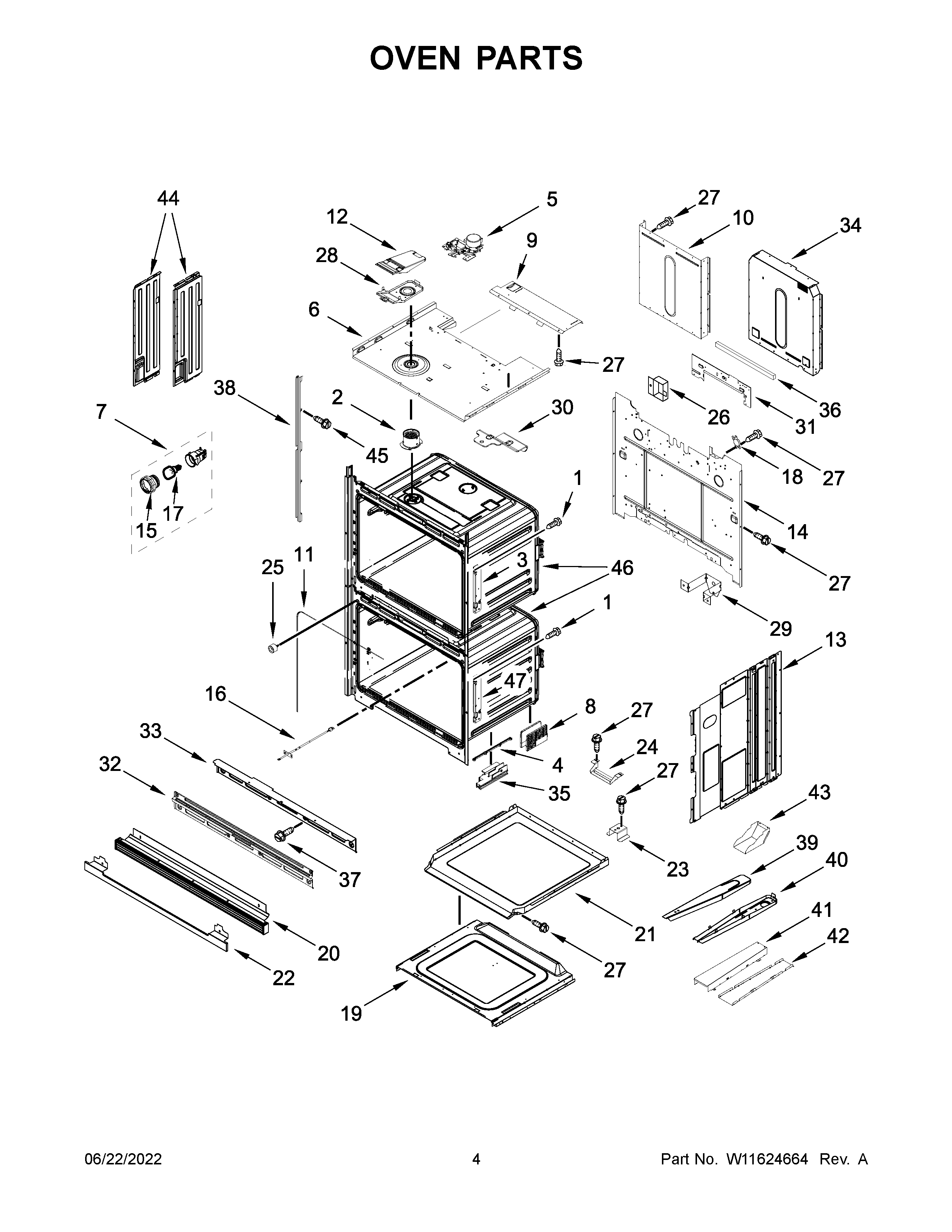

WOD51EC7HS20 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	WPW10254050 Whirlpool Screw
2	W11240525 Whirlpool Vent Tube
3	HINGE-RECV
4	W11598116 Whirlpool Spacer
5	W11686858 Whirlpool Door Latch
6	TOP, CHASSIS
7	W11325541 Whirlpool Indicator Light
8	W11598170 Whirlpool Level Foot
9	W10904163 Whirlpool Vent Deflector
10	W11134657 Whirlpool Rear Cover
11	GASKET, CAVITY
12	COVER, VENT EXHAUST
13	W11165274 Whirlpool Side Panel
14	BACK, CHASSIS
15	W11450856 Whirlpool Light Lens
16	W11598120 Whirlpool Thermostat
17	W11454079 Whirlpool Light Bulb
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	BASE, CHASSIS
20B	W11598189 Whirlpool Vent
20	W11369893 Whirlpool Heat Deflector
20A	W11598191 Whirlpool Vent
21	COVR-ACESS
22	W11712432 Whirlpool Trim Assembly
23	SUPPORT, AIR CHANNEL
24	SPACER, CHASSIS BOTTOM DUCT
25	W11598125 Whirlpool Bumper
26	8285593 Whirlpool Oven Wire Cover
27	SCREW
28	BASE, VENT EXHAUST
29	HAT BRACKET, VENT
30	BRACKET, TOP FRONT
31	BRACKET, U-SHAPE
32	W11235483 Whirlpool Exhaust Vent
33	W11334858 Whirlpool Vent Exhaust
34	W11165250 Whirlpool Rear Cover
35	W11598169 Whirlpool Foot Level Assembly
35A	W11598168 Whirlpool Leveling Foot
36	FOAM, U-BRACKET
37	WPY706189 Whirlpool Stove Screw
38A	W11235461 Whirlpool Rail Mounting
38	W11235460 Whirlpool Mounting Rail
39	COVER, TOP BACK EXHAUST
40	BASE, TOP BACK EXHAUST
41	COVER, LOWER BACK EXHAUST
42	BASE, LOWER BACK EXHAUST
43	DEFLECTOR, LOWER BACK EXHAUST
44	W11598150 Whirlpool Side Cover
44A	W11598151 Whirlpool Side Cover
45	W11602623 Whirlpool Screw
47A	W11712406 Whirlpool Receiver Hinge
47	W11712405 Whirlpool Receiver Hinge
