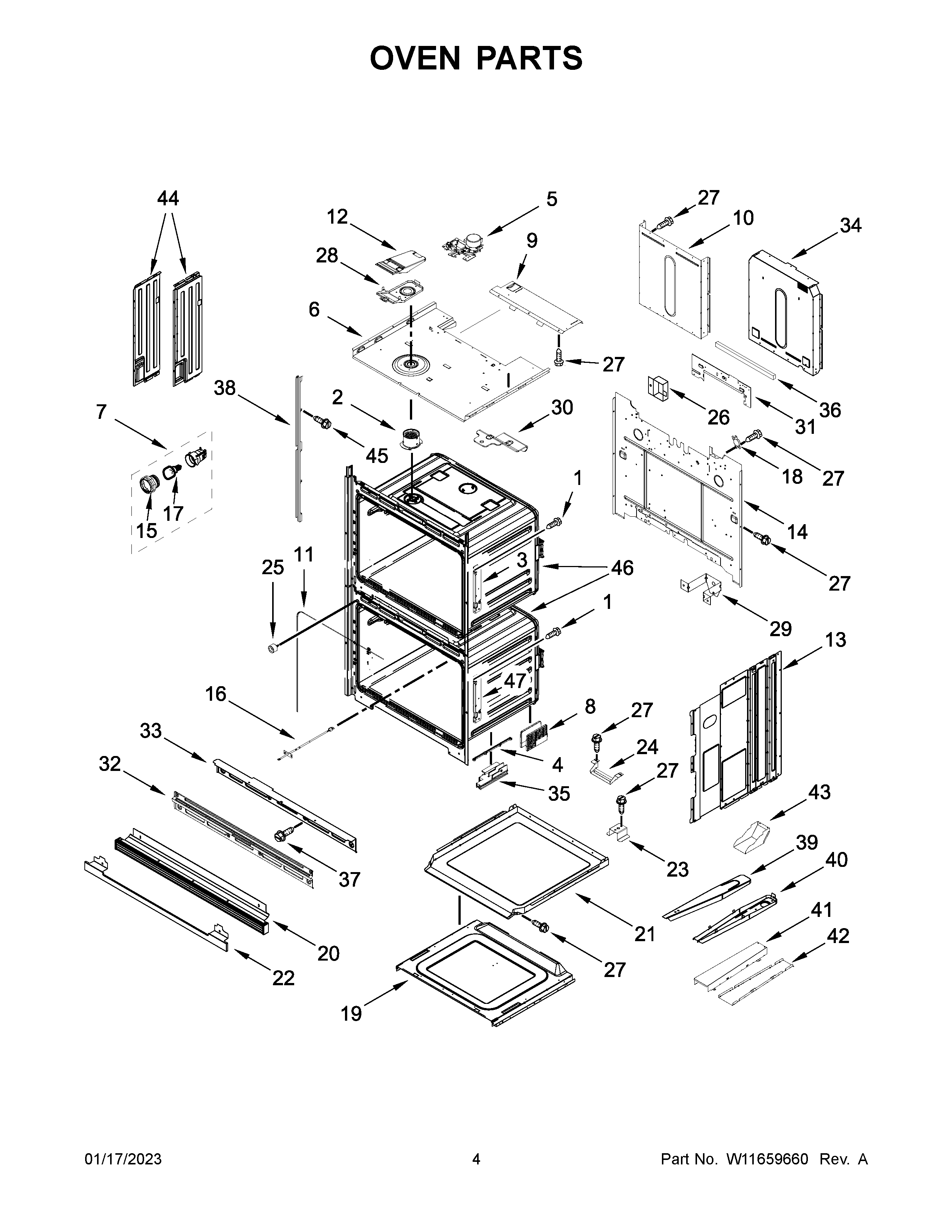

WOD51EC7HS21 03 – OVEN PARTS

WOD51EC7HS21 03 – OVEN PARTS

Written by

in

WOD51EC7HS21 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK
NIINSULATION, WRAP
NICABINET (NOT A SERVICEABLE PART)
1WPW10254050 Whirlpool Screw
2W11240525 Whirlpool Vent Tube
3HINGE-RECV
4W11598116 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11325541 Whirlpool Indicator Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11134657 Whirlpool Rear Cover
11W11608109 Whirlpool Gasket
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
14BACK, CHASSIS
15W11450856 Whirlpool Light Lens
16W11598120 Whirlpool Thermostat
17W11454079 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20W11598189 Whirlpool Vent
21COVR-ACESS
22W11712432 Whirlpool Trim Assembly
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
268285593 Whirlpool Oven Wire Cover
27SCREW
28BASE, VENT EXHAUST
29HAT BRACKET, VENT
30BRACKET, TOP FRONT
31BRACKET, U-SHAPE
32W11235483 Whirlpool Exhaust Vent
33W11334858 Whirlpool Vent Exhaust
34W11165250 Whirlpool Rear Cover
35W11598169 Whirlpool Foot Level Assembly
35AW11598168 Whirlpool Leveling Foot
36FOAM, U-BRACKET
37WPY706189 Whirlpool Stove Screw
38AW11235461 Whirlpool Rail Mounting
38W11235460 Whirlpool Mounting Rail
39COVER, TOP BACK EXHAUST
40BASE, TOP BACK EXHAUST
41COVER, LOWER BACK EXHAUST
42BASE, LOWER BACK EXHAUST
43DEFLECTOR, LOWER BACK EXHAUST
44AW11598151 Whirlpool Side Cover
44W11598150 Whirlpool Side Cover
45W11602623 Whirlpool Screw
47AW11712406 Whirlpool Receiver Hinge
47W11712405 Whirlpool Receiver Hinge
