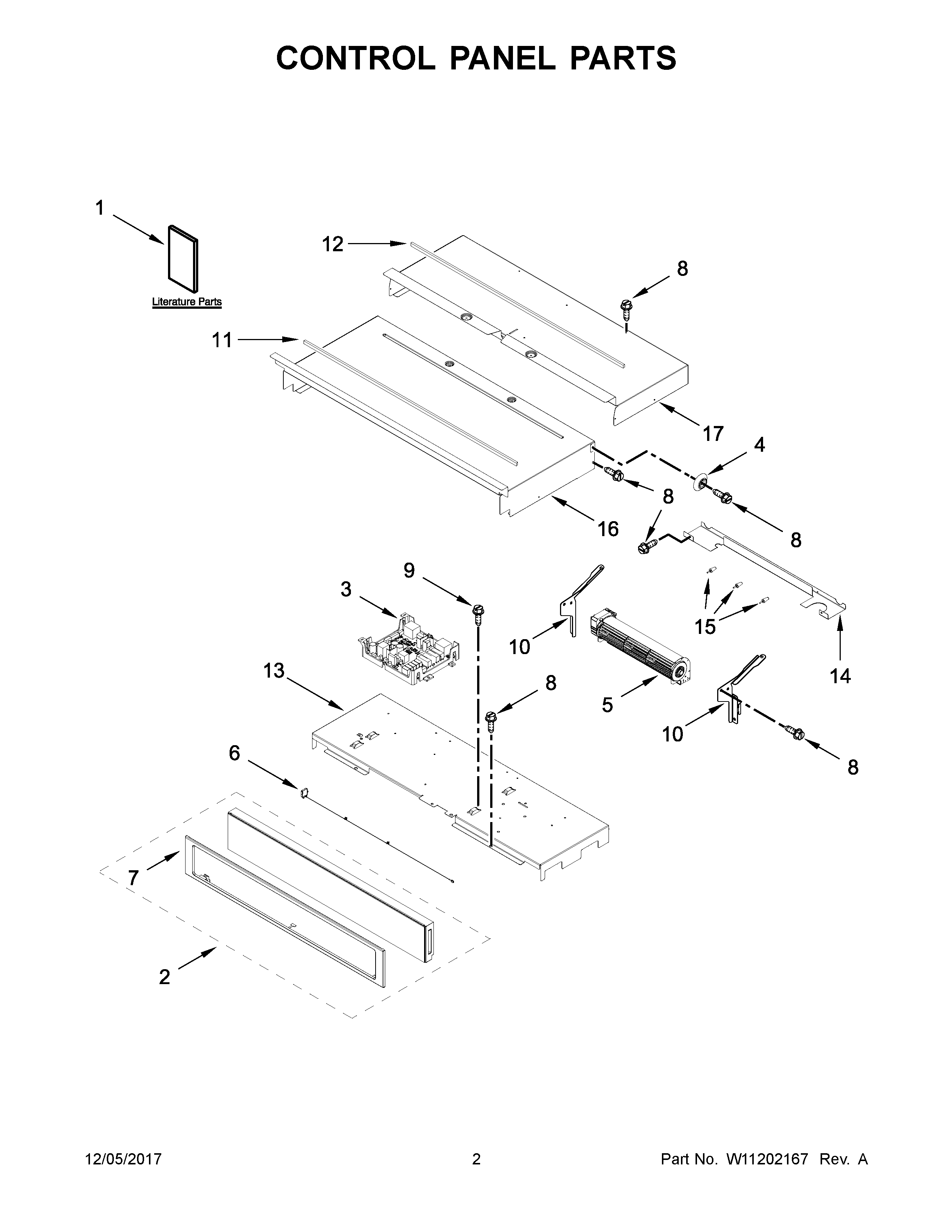

WOD51EC7HW00 02 – CONTROL PANEL PARTSadmin2025-04-26T11:30:06+00:00WOD51EC7HW00 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | W11177679 Whirlpool Wire Harness |
| NI | W11132989 Whirlpool Wire Harness |
| NI | 16515 Whirlpool Clip |
| NI | W11699910 Whirlpool Wire Harness |
| NI | W10655464 Whirlpool Bracket |
| NI | W10487999 Whirlpool Clip |
| NI | 4450800 Whirlpool Oven Screw |
| NI | 4448664 Whirlpool Oven Mounting Bracket |
| NI | HARNESS, MAIN |
| NI | W10760039 Whirlpool Hardware |
| NI | W11233570 Whirlpool Wire Harness |
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1C | SHEET, TECH |
| 1D | DIAGRAM, WIRING |
| 1 | GUIDE, USE & CARE |
| 1B | GUIDE, INTERNET CONNECTIVITY |
| 1A | INSTRUCTIONS, INSTALLATION |
| 2 | W11297710 Whirlpool Console + Core |
| 2A | W11297713 Whirlpool Console + Core |
| 2B | W11297714 Whirlpool Console + Core |
| 3A | W11261169-includeCORE Whirlpool W11261169 Refrigerator Electronic Control Board + Core |
| 3 | W11261167 Whirlpool Electronic Control Board + Core |
| 4 | W10618105 Whirlpool Spacer |
| 5 | W11248652 Whirlpool Blower |
| 6 | W11537624 Whirlpool Antenna Assembly |
| 7 | W11115276 Whirlpool Skin Panel |
| 7B | W11112611 Whirlpool Control Panel |
| 7A | SKIN, CONTROL PANEL (WHITE) |
| 8 | SCREW |
| 9 | SCREW |
| 10 | W10655463 Whirlpool Bracket Mounting |
| 10A | W10655462 Whirlpool Mounting Bracket |
| 11 | GASKET, RUBBER |
| 12 | W10728475 Whirlpool Foam Seal |
| 13 | TRAY, ELECTRONIC |
| 14 | W10655465 Whirlpool Mounting Bracket |
| 15 | W10351295 Whirlpool Bumper Assembly |
| 16 | W10318193 Whirlpool Cabinet Top |
| 17 | CHASSIS, COVER TOP BACK 27" |
